    Manufacturer: INTELLINET

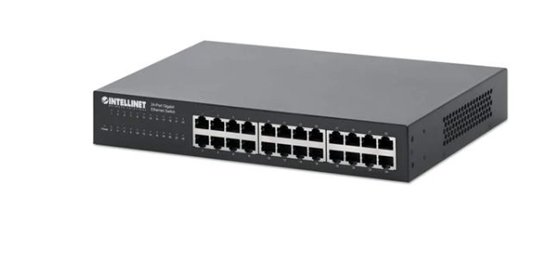

    INTELLINET 24-Port Gigabit Switch Desktop & 19"Rackmount Met


    €114.57 incl tax

    SKU: ST07912522
    Manufacturer part number: 561273
    Manufacturer Homepage
    Warranty: 36 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    RJ-45 port 24
    Properties RJ-45
    WRL stadarti 802.11b
    Switch classUnmanaged
    ApplicationMedium and large companies
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports24
    10/100/1000/2500 Mbps portsNone
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)None
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP portsNone
    Number of SFP+ portsNone
    Number of SFP56 portsNone
    Number of QSFP+ portsNone
    Console portNo
    Forwarding modeStore-and-forward
    Throughput48 (Gigabity na sek.)
    Memory buffer512 (Kilobajt)
    MAC address table size16000
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    StackabilityNo
    Supported protocols and standards
    • IEEE 802.3 (10Base-T Ethernet)
    • IEEE 802.3ab (skrętka Gigabit Ethernet)
    • IEEE 802.3az (Energy Efficient Ethernet EEE)
    • IEEE 802.3u (100Base-TX Fast Ethernet)
    • IEEE 802.3x (kontrola przepływu dla trybu full duplex)
    Chassis typeDesktop
    Chassis typeRack
    Fan No
    Power supply Internal
    Power consumption16 (Watt)
    Environment requirements
    • Temperatura pracy: 0 - 40°C
    • Wilgotność pracy: 10 - 90% RH, nieskondensowana
    • Temperatura magazynowania: -20 - 70°C
    Certificates
    • FCC Class A,
    • CE
    Accessories included
    • 24-Portowy Przełącznik Gigabit Ethernet
    • Uchwyty rackowe
    • Kabel zasilający
    • Instrukcja użytkownika
    Power supply

    Wewnętrzny zasilacz: 100 - 240V AC, 50/60 Hz

    Dimensions

    180 x 280 x 44 mm

    Weight2.6 (kilogram)
    Width435
    Height245
    Depth75
    Weight2027
    Description
    • Porty 10/100/1000 z automatycznym wykrywaniem optymalnej prędkości sieci
    • Obsługa Auto-MDIX (auto uplink) na wszystkich portach RJ45
    • Do stosowania w formie przełącznika desktop lub do montażu w racku 19"
    • Obsługa autonegocjacji NWay
    • Architektura przełącznika Store and Forward
    • Tryb Full/half duplex
    • Obsługa 802.3x flow control dla trybu full duplex oraz collision-based backpressure dla trybu half duplex
    • Technologia ograniczania zużycia energii "Green Ethernet" deaktywuje nieużywane porty oraz dostosowuje poziom mocy na podstawie długości kabli
    • Zgodny ze specyfikacją IEEE 802.3az (Energy Efficient Ethernet EEE)
    • Przepustowość magistrali 48 Gbps
    • Obsługa ramek "jumbo" do 9 KB
    • Tablica MAC adresów do 16k wpisów
    • Bufor pamięci 512kB
    • Obsługa adresów MAC z funkcją auto-learning oraz auto-aging
    • Konstrukcja bez wentylatora zapewnia cichą pracę
    • W zestawie uchwyty rackowe 19"
    • W pełni zgodny z ustawą NDAA
    Status7 dienas
    Description
    Boost your network speed. _x000D_ _x000D_ The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch (561273) offers an array of features while providing superior network throughput. It is very easy to set up and requires no configuration whatsoever. Thanks to its desktop and 19"; rackmount design, superior performance and value, the Intellinet Network Solutions 24-Port Gigabit Ethernet Switch is the perfect choice for expanding your small office home or home network. _x000D_ _x000D_ Extreme Throughput _x000D_ With a backplane speed of 48 Gbps, plenty of performance is available for your computers, servers and other networking devices. _x000D_ _x000D_ Auto Features _x000D_ This Gigabit LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle-free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the 24 ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_ _x000D_ Reliable Operation _x000D_ The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch supports flow control when operating in half-duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store-and-forward switching method, full- and half-duplex modes further ensure that your connections remain active even under extremely busy conditions. _x000D_ _x000D_ Green Ethernet Technology _x000D_ More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network-connected device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new, energy efficient IEEE 802.3az technology, the Intellinet Network Solutions 24-Port Gigabit Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet Network Solutions switch can adjust the level of power output based on the length of the network cable connected to a particular port. This feature allows for the enjoyment of maximum network performance, and when things slow down, it automatically scales back power usage to conserve energy and save money.

    Control and Provisioning of Wireless Access Points (CAPWAP) Y
    Basic switching RJ-45 Ethernet ports quantity 24
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Power connector AC-in jack
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Cable types supported Cat3, Cat4, Cat5, Cat5e
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-sensing Y
    Auto-negotiation Y
    MAC address auto-learning supported Y
    MAC address auto-aging supported Y
    MAC address table 16384 entries
    Switching capacity 48 Gbit/s
    Store-and-forward Y
    Jumbo frames support Y
    Jumbo frames 9000
    Packet forwarding rate (1 Gbps) 1488000 pps
    Packet forwarding rate (100 Mbps) 148800 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Packet buffer memory 0.512 MB
    Rack mounting Y
    Product colour Black
    Housing material Metal
    LED indicators Activity, Link, Power
    Certification FCC A, CE
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 16 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Width 280 mm
    Depth 180 mm
    Height 44 mm
    Weight 2.6 kg
    Cables included AC
    User guide Y
    Rack mount kit Y
    Harmonized System (HS) code 85176990
