    Manufacturer: INTELLINET

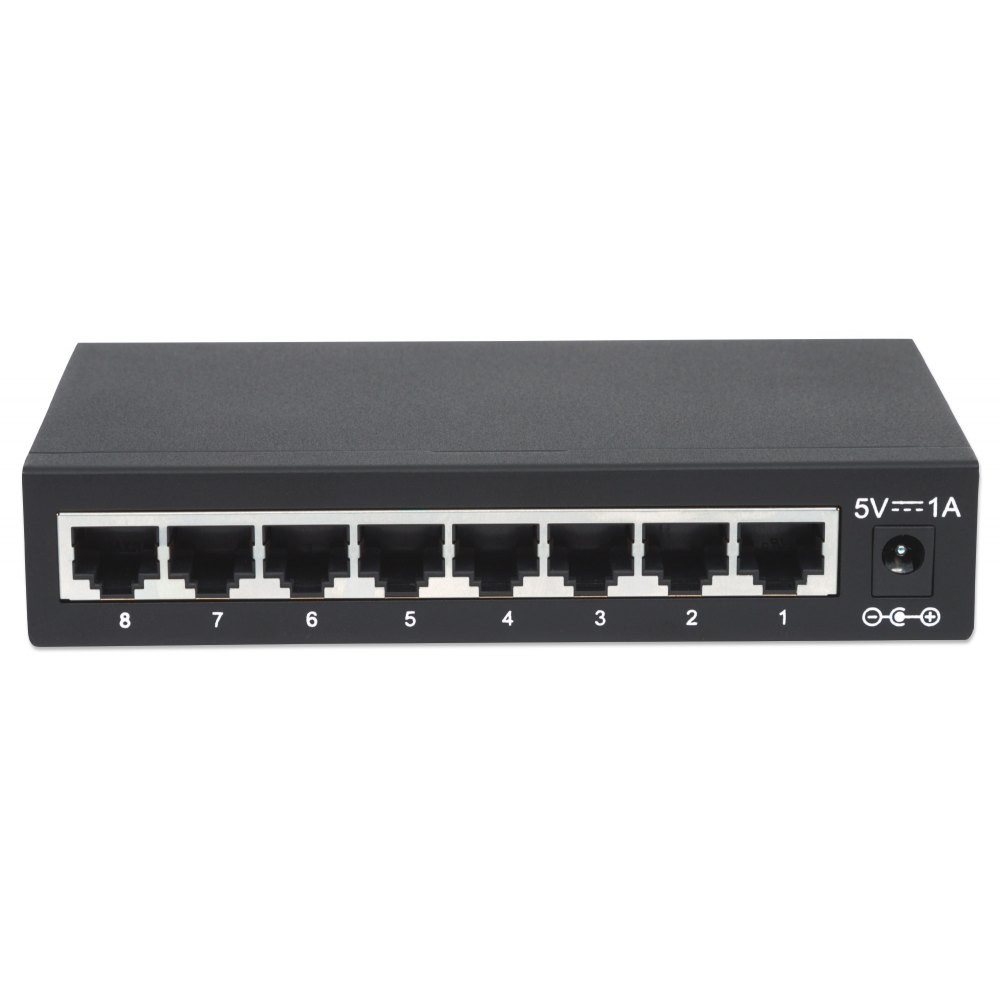

    INTELLINET 8-Port Gigabit Ethernet Switch


    €53.60 incl tax

    SKU: ST07914587
    Manufacturer part number: 530347
    Manufacturer Homepage
    Warranty: 36 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Properties RJ-45
    RJ-45 port 8
    WRL stadarti 802.11b
    Switch classUnmanaged
    ApplicationHome and small office
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports8
    10/100/1000/2500 Mbps portsNone
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)None
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP portsNone
    Number of SFP+ portsNone
    Number of SFP56 portsNone
    Number of QSFP+ portsNone
    Console portNo
    Forwarding modeStore-and-forward
    Throughput16 (Gigabajty na sek.)
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    Supported protocols and standards
    • IEEE 802.3 (10Base-T Ethernet)
    • IEEE 802.3u (100Base-TX Fast Ethernet)
    • IEEE 802.3ab (Gigabit Ethernet)
    • IEEE 802.3az (Energy Efficient Ethernet EEE)
    • IEEE 802.3x (Kontrola przepływu oraz Backpressure)
    Chassis typeDesktop
    Fan No
    Power consumption2.75 (Watt)
    Environment requirements
    • Temperatura pracy: 0 - 40°C (32 104°F)
    • Wilgotność: 10 - 90% RH, nieskondensowana
    Accessories included
    • 8-Portowy Przełącznik Gigabit Ethernet
    • Zewnętrzny adapter zasilania
    • Instrukcja użytkownika
    Power supply

    Napięcie wejściowe: 5V DC, 1A
    Dimensions

    140 x 78 x 28 mm
    Weight0.34 (kilogram)
    Other features
    • Autonegocjacja NWay ANSI/IEEE 802.3
    • Obsługa pełnej przepustowości na wszystkich portach
    • Backpressure flow control dla trybu half duplex na portach 10/100 Mbps
    • Porty: 8x 10/100/1000 Mbps RJ45

    Okablowanie sieciowe:

    • 10Base-T: Cat3, 4, 5 UTP/STP
    • 100Base-TX: Cat5 UTP/STP
    • 1000Base-T: Cat5e UTP/STP
    • Certyfikaty: FCC Class B, CE Mark, RoHS

    Architektura przełącznika: store and forward
    Przepustowość magistrali wewnętrznej: 16 Gbps
    Width150
    Height70
    Depth85
    Weight360
    Description

    Switch Gigabit 8x 10/100/1000 Mbps RJ45 Desktop Metalowy

    • Autokrosowanie MDI-X z automatycznym wykrywaniem optymalnej prędkości sieci 10/100/1000
    • Wysoka wydajność, tryb full/half duplex z technologią Zero-Packet Loss
    • Pełna kontrola przepływu dla zapewnienia optymalnej wydajności
    • Technologia ograniczania zużycia energii "Green Ethernet" dezaktywuje nieużywane porty oraz dostosowuje poziom mocy na podstawie długości kabli
    • Automatyczne rozpoznawanie konfiguracji sieci
    • Obsługa ramek "jumbo" do 9 KB
    • Architektura przełączania Store and forward
    • Zdolny do obsłużenia pełnej przepustowości na wszystkich portach
    • Konstrukcja bez wentylatora zapewnia cichą pracę
    • Solidna, metalowa obudowa zapewnia maksymalną wytrzymałość
    Status7 dienas
    Description
    Easy to install, with auto-learning capabilities. _x000D_ _x000D_ The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_ _x000D_ High-Speed Performance _x000D_ This desktop switch includes eight Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_ _x000D_ Auto Features _x000D_ This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the eight ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_ _x000D_ Reliable Operation _x000D_ The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, full and half duplex modes further ensure that your connections remain active even under extremely busy conditions.

    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Power connector DC-in jack
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    Store-and-forward Y
    Stackable N
    Product colour Black
    Housing material Metal
    Certification FCC Class B, CE, RoHS
    Power supply included Y
    DC input voltage 5 V
    Power consumption (max) 2.75 W
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -20 - 90 °C
    Operating relative humidity (H-H) 10 - 90%
    Width 140 mm
    Depth 78 mm
    Height 28 mm
    Weight 340 g
    Manual Y
    Harmonized System (HS) code 85176990

    Products specifications
    Properties RJ-45
    RJ-45 port 8
    WRL stadarti 802.11b
    Switch classUnmanaged
    ApplicationHome and small office
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports8
    10/100/1000/2500 Mbps portsNone
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)None
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP portsNone
    Number of SFP+ portsNone
    Number of SFP56 portsNone
    Number of QSFP+ portsNone
    Console portNo
    Forwarding modeStore-and-forward
    Throughput16 (Gigabajty na sek.)
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    Supported protocols and standards
    • IEEE 802.3 (10Base-T Ethernet)
    • IEEE 802.3u (100Base-TX Fast Ethernet)
    • IEEE 802.3ab (Gigabit Ethernet)
    • IEEE 802.3az (Energy Efficient Ethernet EEE)
    • IEEE 802.3x (Kontrola przepływu oraz Backpressure)
    Chassis typeDesktop
    Fan No
    Power consumption2.75 (Watt)
    Environment requirements
    • Temperatura pracy: 0 - 40°C (32 104°F)
    • Wilgotność: 10 - 90% RH, nieskondensowana
    Accessories included
    • 8-Portowy Przełącznik Gigabit Ethernet
    • Zewnętrzny adapter zasilania
    • Instrukcja użytkownika
    Power supply

    Napięcie wejściowe: 5V DC, 1A
    Dimensions

    140 x 78 x 28 mm
    Weight0.34 (kilogram)
    Other features
    • Autonegocjacja NWay ANSI/IEEE 802.3
    • Obsługa pełnej przepustowości na wszystkich portach
    • Backpressure flow control dla trybu half duplex na portach 10/100 Mbps
    • Porty: 8x 10/100/1000 Mbps RJ45

    Okablowanie sieciowe:

    • 10Base-T: Cat3, 4, 5 UTP/STP
    • 100Base-TX: Cat5 UTP/STP
    • 1000Base-T: Cat5e UTP/STP
    • Certyfikaty: FCC Class B, CE Mark, RoHS

    Architektura przełącznika: store and forward
    Przepustowość magistrali wewnętrznej: 16 Gbps
    Width150
    Height70
    Depth85
    Weight360
    Description

    Switch Gigabit 8x 10/100/1000 Mbps RJ45 Desktop Metalowy

    • Autokrosowanie MDI-X z automatycznym wykrywaniem optymalnej prędkości sieci 10/100/1000
    • Wysoka wydajność, tryb full/half duplex z technologią Zero-Packet Loss
    • Pełna kontrola przepływu dla zapewnienia optymalnej wydajności
    • Technologia ograniczania zużycia energii "Green Ethernet" dezaktywuje nieużywane porty oraz dostosowuje poziom mocy na podstawie długości kabli
    • Automatyczne rozpoznawanie konfiguracji sieci
    • Obsługa ramek "jumbo" do 9 KB
    • Architektura przełączania Store and forward
    • Zdolny do obsłużenia pełnej przepustowości na wszystkich portach
    • Konstrukcja bez wentylatora zapewnia cichą pracę
    • Solidna, metalowa obudowa zapewnia maksymalną wytrzymałość
    Status7 dienas
    Description
    Easy to install, with auto-learning capabilities. _x000D_ _x000D_ The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_ _x000D_ High-Speed Performance _x000D_ This desktop switch includes eight Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_ _x000D_ Auto Features _x000D_ This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the eight ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_ _x000D_ Reliable Operation _x000D_ The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, full and half duplex modes further ensure that your connections remain active even under extremely busy conditions.

    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Power connector DC-in jack
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    Store-and-forward Y
    Stackable N
    Product colour Black
    Housing material Metal
    Certification FCC Class B, CE, RoHS
    Power supply included Y
    DC input voltage 5 V
    Power consumption (max) 2.75 W
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -20 - 90 °C
    Operating relative humidity (H-H) 10 - 90%
    Width 140 mm
    Depth 78 mm
    Height 28 mm
    Weight 340 g
    Manual Y
    Harmonized System (HS) code 85176990
