    Manufacturer: D-LINK

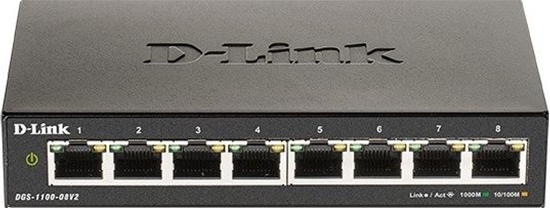

    D-Link DGS-1100-08V2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black


    €59.80 incl tax

    SKU: ST04620992
    Manufacturer part number: DGS-1100-08V2/E
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    RJ-45 port 8
    Properties RJ-45
    Switch classSMART
    ApplicationHome and small office
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports8
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)None
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP portsNone
    Number of SFP+ portsNone
    Number of QSFP+ portsNone
    Console portNo
    Forwarding modeStore-and-forward
    Throughput16 (Gigabity na sek.)
    Forwarding rate11.9 (Mpps)
    Packet buffer1.5 (MegaBajt)
    MAC address table size4000
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    Chassis typeDesktop
    Fan No
    Power supply External
    Mean time between failures (MTBF)1456992 (Hour)
    Dimensions

    145 x 82 x 28 mm
    Weight0.34 (kilogram)
    Width220
    Height145
    Depth100
    Weight710
    Switch typeManaged
    Switch layerL2
    Basic switching RJ-45 Ethernet ports quantity8
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Copper ethernet cabling technology1000BASE-T
    Auto MDI/MDI-XYes
    Switching capacity16 Gbit/s
    Forwarding rate11.9 Mpps
    Packet buffer memory0.187 MB
    Rack mountingNo
    Product colourBlack
    Reset buttonYes
    FanlessYes
    AC input voltage100 - 240 V
    DC input voltage5 V
    Input current1 A
    Power consumption (max)4.94 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)0 - 90%
    Storage relative humidity (H-H)0 - 95%
    Operating altitude0 - 2000 m
    Width145 mm
    Depth28 mm
    Height82 mm
    Weight340 g
    Harmonized System (HS) code85176990
    Description
    D-Link DGS-1100-08V2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 16 Gbit/s. DC input voltage: 5 V
    Status7 dienas
    Description
    Advanced Security Features The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities. Simplify Network Management D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Easy Troubleshooting The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors. Green Technology D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

    Switch type Managed
    Switch layer L2
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Copper ethernet cabling technology 1000BASE-T
    Auto MDI/MDI-X Y
    Switching capacity 16 Gbit/s
    Forwarding rate 11.9 Mpps
    Packet buffer memory 0.187 MB
    Rack mounting N
    Product colour Black
    Reset button Y
    Fanless Y
    AC input voltage 100 - 240 V
    DC input voltage 5 V
    Input current 1 A
    Power consumption (max) 4.94 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 0 - 90%
    Storage relative humidity (H-H) 0 - 95%
    Operating altitude 0 - 2000 m
    Width 145 mm
    Depth 28 mm
    Height 82 mm
    Weight 340 g
    Harmonized System (HS) code 85176990
    Gross depth (mm)215, 215
    Gross height (mm)140, 140
    Gross weight0.61
    Gross width (mm)92, 92
    Net weight0.31
    Packing quantity1.00, 1.00
    Paper/Pasteboard240.00, 240.00
    Plastic (No PET)60.00, 60.00
    Tare weight (kg)0.30, 0.30
    Volume (m3)0.0027692, 0.0027692
    Embeeded batteryNo, No
    WEEE taxYes, Yes
    WEE classificationCL109:5:2017-04-01, CL109:5:2017-04-01
    Warranty60
    Switch typeManaged
    Producer product nameDGS-1100-08V2
    Form factorDesktop
    Producer product familySmart Gigabit Ethernet Switch
    Predominant port type10/100/1000 Mbps (RJ-45)
    Power supply typeExternal
    Tare other2.00, 2.00
    Gross depth master carton280.00, 280.00
    Gross width master carton360.00, 360.00
    Gross height master carton470.00, 470.00
    Net weight master carton6.00, 6.00
    Tare weight master carton1.94, 1.94
    Ethernet LAN (RJ-45) ports8
    Installed ports1xPD port
    Colour of productBlack
    Switch layerL2
    Palette Qty312, 312
    ProducerD-Link, D-Link

    Products specifications
    RJ-45 port 8
    Properties RJ-45
    Switch classSMART
    ApplicationHome and small office
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports8
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)None
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP portsNone
    Number of SFP+ portsNone
    Number of QSFP+ portsNone
    Console portNo
    Forwarding modeStore-and-forward
    Throughput16 (Gigabity na sek.)
    Forwarding rate11.9 (Mpps)
    Packet buffer1.5 (MegaBajt)
    MAC address table size4000
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    Chassis typeDesktop
    Fan No
    Power supply External
    Mean time between failures (MTBF)1456992 (Hour)
    Dimensions

    145 x 82 x 28 mm
    Weight0.34 (kilogram)
    Width220
    Height145
    Depth100
    Weight710
    Switch typeManaged
    Switch layerL2
    Basic switching RJ-45 Ethernet ports quantity8
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Copper ethernet cabling technology1000BASE-T
    Auto MDI/MDI-XYes
    Switching capacity16 Gbit/s
    Forwarding rate11.9 Mpps
    Packet buffer memory0.187 MB
    Rack mountingNo
    Product colourBlack
    Reset buttonYes
    FanlessYes
    AC input voltage100 - 240 V
    DC input voltage5 V
    Input current1 A
    Power consumption (max)4.94 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)0 - 90%
    Storage relative humidity (H-H)0 - 95%
    Operating altitude0 - 2000 m
    Width145 mm
    Depth28 mm
    Height82 mm
    Weight340 g
    Harmonized System (HS) code85176990
    Description
    D-Link DGS-1100-08V2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 16 Gbit/s. DC input voltage: 5 V
    Status7 dienas
    Description
    Advanced Security Features The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities. Simplify Network Management D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Easy Troubleshooting The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors. Green Technology D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

    Switch type Managed
    Switch layer L2
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Copper ethernet cabling technology 1000BASE-T
    Auto MDI/MDI-X Y
    Switching capacity 16 Gbit/s
    Forwarding rate 11.9 Mpps
    Packet buffer memory 0.187 MB
    Rack mounting N
    Product colour Black
    Reset button Y
    Fanless Y
    AC input voltage 100 - 240 V
    DC input voltage 5 V
    Input current 1 A
    Power consumption (max) 4.94 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 0 - 90%
    Storage relative humidity (H-H) 0 - 95%
    Operating altitude 0 - 2000 m
    Width 145 mm
    Depth 28 mm
    Height 82 mm
    Weight 340 g
    Harmonized System (HS) code 85176990
    Gross depth (mm)215, 215
    Gross height (mm)140, 140
    Gross weight0.61
    Gross width (mm)92, 92
    Net weight0.31
    Packing quantity1.00, 1.00
    Paper/Pasteboard240.00, 240.00
    Plastic (No PET)60.00, 60.00
    Tare weight (kg)0.30, 0.30
    Volume (m3)0.0027692, 0.0027692
    Embeeded batteryNo, No
    WEEE taxYes, Yes
    WEE classificationCL109:5:2017-04-01, CL109:5:2017-04-01
    Warranty60
    Switch typeManaged
    Producer product nameDGS-1100-08V2
    Form factorDesktop
    Producer product familySmart Gigabit Ethernet Switch
    Predominant port type10/100/1000 Mbps (RJ-45)
    Power supply typeExternal
    Tare other2.00, 2.00
    Gross depth master carton280.00, 280.00
    Gross width master carton360.00, 360.00
    Gross height master carton470.00, 470.00
    Net weight master carton6.00, 6.00
    Tare weight master carton1.94, 1.94
    Ethernet LAN (RJ-45) ports8
    Installed ports1xPD port
    Colour of productBlack
    Switch layerL2
    Palette Qty312, 312
    ProducerD-Link, D-Link
