    Przełącznik Switch ARUBA Instant On 1430 8x1GbE PoE R8R46A


    €142.13 incl tax

    SKU: ST06496113
    Manufacturer part number: R8R46A
    Manufacturer Homepage
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    RJ-45 port 8
    Switch classUnmanaged
    ApplicationHome and small office
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports8
    10/100/1000/2500 Mbps portsNone
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)8
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP portsNone
    Number of SFP+ portsNone
    Number of QSFP+ portsNone
    Console portNo
    Throughput16 (Gigabity na sek.)
    Forwarding rate11.9 (Mpps)
    MAC address table size8192
    Support for Jumbo framesYes
    Jumbo frame size9.216 (Kilobajt)
    StackabilityNo
    Supported protocols and standards
    • IEEE 802.3i 10 Mbps Ethernet
    • IEEE 802.3u 100Base-T Ethernet
    • IEEE 802.3z 1000 Mbps Ethernet
    • IEEE 802.3ab 1000Base-T
    • IEEE 802.3af PoE1 (PoE models only)
    • IEEE 802.3at PoE1 (PoE models only)
    • IEEE 802.3x Flow Control
    • IEEE 802.3az Energy Efficient Ethernet
    QoS

    RFC 2474 QoS diffserv (DSCP) mapping

    Chassis typeRack
    Fan No
    Power supply External
    Power consumption90 (Watt)
    Power supply
    • Częstotliwość: 50Hz/60Hz
    • Napięcie AC: 100-240VAC
    • Prąd: 2A (54VDC - 1,58A)
    • Maksymalna moc znamionowa: 90W
    • Moc w stanie bezczynności: 4,1 W
    • Moc PoE 64W Klasa 4 PoE
    Dimensions

    150 x 177 x 37 mm

    Weight0.77 (kilogram)
    Environment requirements
    • Temperatura pracy: 0 °C do 40 °C
    • Wilgotność względna podczas pracy: 15% do 95% (40°C) bez kondensacji
    • Temperatura spoczynku/przechowywania: -40°C do 70°C
    • Wilgotność względna podczas spoczynku/przechowywania: 15% do 90% (65°C) bez kondensacji
    Certificates

    Safety:

    • EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 EN/IEC 62368-1, 2nd. & 3rd. Ed.
    • UL 62368-1, 3rd. Ed.
    • CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
    • EN/IEC 60825- 1:2014 Class 1

    Emissions:

    • EN 55032:2015/ CISPR 32, Class B
    • FCC CFR 47 Part 15: 2018, Class B
    • ICES-003, Class B
    • VCCI-32, Class B
    • CNS 13438, Class B
    • KS C 9832, Class B
    • AS/NZS CISPR 32, Class B
    • Immunity BS/EN 55035, CISPR 35, KS C 9835
    • Generic EN 55035, CISPR 35
    • EN EN/IEC 61000-4-2
    • ESD EN/IEC 61000-4-3
    • Radiated EN/IEC 61000-4-4
    • EFT/Burst EN/IEC 61000-4-5
    • Surge EN/IEC 61000-4-6
    • Conducted EN/IEC 61000-4-8
    • Power frequency magnetic field EN/IEC 61000-4-11
    • Voltage dips and interruptions EN/IEC 61000-3-2
    • Harmonics EN /IEC 61000-3-3
    Other features
    • Processor and Memory: 128Kb EEPROM
    • Packet buffer size: 2.0 Mb
    Width310
    Height310
    Depth73
    Weight2191
    Description

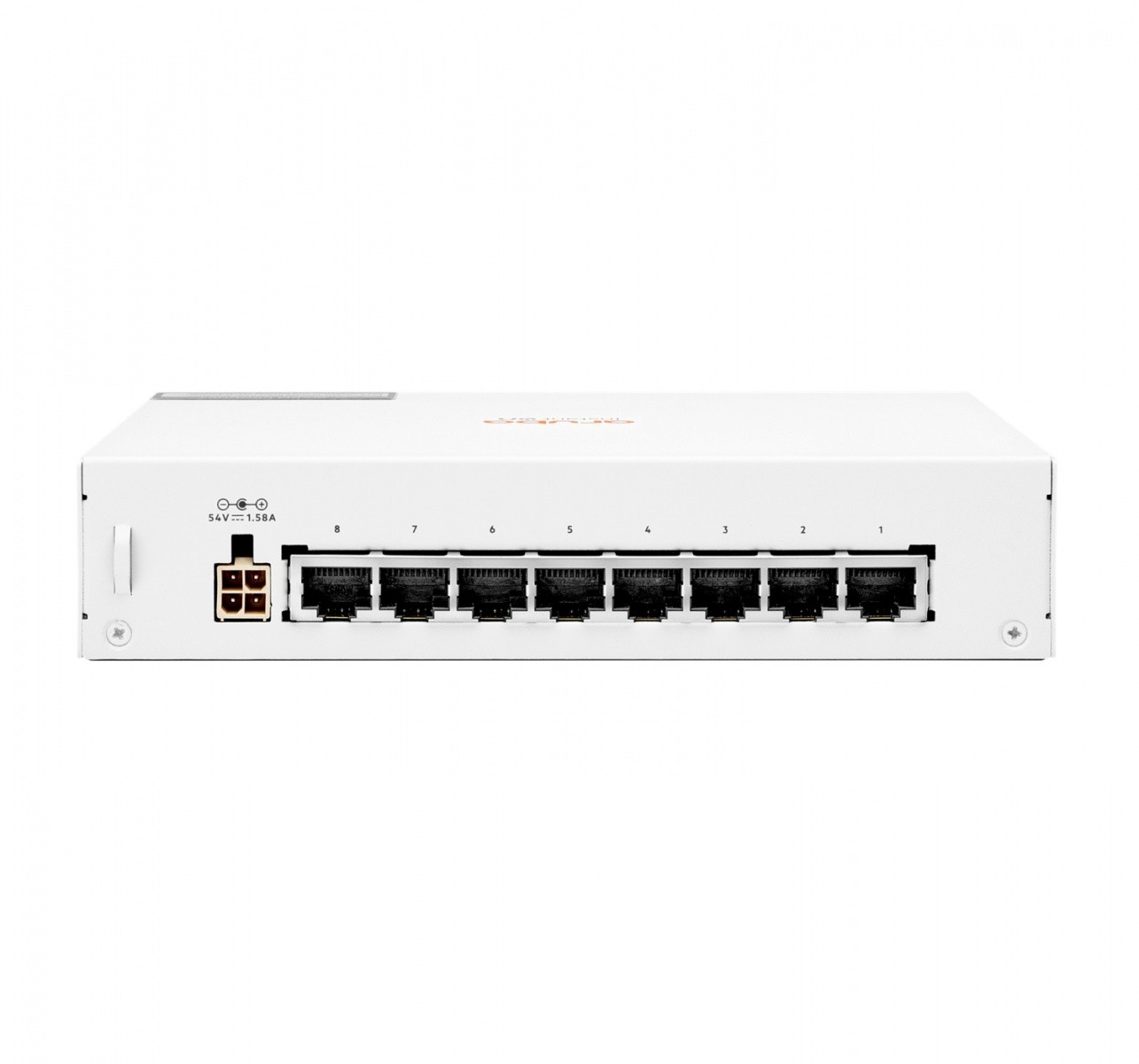

    Aruba Instant On 1430 8G Class4 PoE 64W Switch
