Manufacturer: TP-LINK

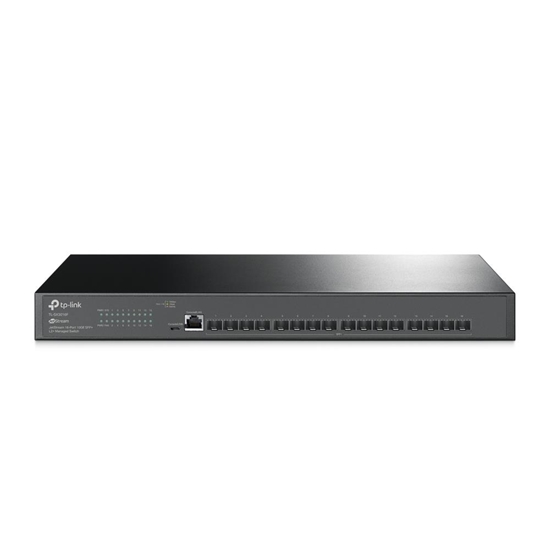

TP-Link TL-SX3016F network switch Managed L2/L2+ None Black

€555.50 incl tax

SKU: ST05443919

Manufacturer part number: TL-SX3016F

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	2 - 4 days	1	€555.50 incl tax
PL	8 - 15 days	13	€583.78 incl tax

Qty:

Specifications

Products specifications

Properties	RJ-45
Properties	USB
RJ-45 port	16

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Traffic classification	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Basic switching RJ-45 Ethernet ports type	None
SFP+ module slots quantity	16
Console port	RJ-45/Micro-USB
Power connector	DC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
MAC address table	32000 entries
Switching capacity	320 Gbit/s
Forwarding rate	238.08 Mpps
Number of queues	8
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9000
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
Management protocols	SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Rack mounting	Yes
Product colour	Black
LED indicators	Yes
Certification	CE, FCC, RoHS
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	32.74 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.71 BTU/h
Width	440 mm
Depth	220 mm
Height	44 mm
Cables included	AC
Quick start guide	Yes
Manual	Yes
Package type	Box
Rack mount kit	Yes
Package width	528 mm
Package depth	336 mm
Package height	100 mm
Package weight	3.7 kg
Harmonized System (HS) code	85176990
Description
Description	TP-Link TL-SX3016F. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: None, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: DC-in jack. Rack mounting

Description
Type L2 \| 16x10GBASE-T/SFP+ Combo \| 1xRJ45 \| 1xMicro-USB \| Switching capacity 320 Gbps \| Forwarding rate 238.08 Mpps \| Switching method Store-and-forward \| Included Accessories TL-SX3016F switch; 2 × power cords; Quick Installation Guide; Rack Mount Kit; Rubber feet \| Dimensions 440 × 220 × 44 mm \| Unit Net Weight 3 kg
