Storage drives installed | No |
Number of storage drives supported | 2 |
Installed storage drive type | No |
Supported storage drive types | HDD & SSD |
RAID support | Yes |
Supported storage drive interfaces | Serial ATA II, Serial ATA III |
Storage drive sizes supported | 2.5,3.5" |
RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
Online RAID migration | Yes |
Online RAID expansion | Yes |
Hot-swap drive bays | Yes |
Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
Disk roaming | Yes |
Processor family | Intel® Celeron® |
Processor manufacturer | Intel |
Processor model | N5105 |
Processor frequency | 2 GHz |
Processor boost frequency | 2.9 GHz |
Processor cores | 4 |
Processor threads | 4 |
Processor cache | 4 MB |
CPU configuration (max) | 1 |
Number of processors supported | 1 |
On-board graphics card model | Intel® UHD Graphics |
Internal memory | 8 GB |
Maximum RAM supported | 8 GB |
Flash memory | 4000 MB |
Ethernet LAN | Yes |
Ethernet LAN data rates | 100,1000,2500 Mbit/s |
DHCP server | Yes |
Jumbo frames support | Yes |
Wake-on-LAN ready | Yes |
Ethernet LAN (RJ-45) ports | 2 |
USB port | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
HDMI ports quantity | 2 |
HDMI version | 2.0 |
Chassis type | Tower |
Product colour | Black |
LED indicators | Yes |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Type | NAS |
Device class | Small & Medium Business |
Buzzer | Yes |
Number of users | 4096 user(s) |
Snapshot | Yes |
Reset button | Yes |
On/off switch | Yes |
Built-in FTP server | Yes |
Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
S.M.A.R.T. support | Yes |
Operating system installed | QNAP QTS |
Operating system version | 5.0.0 |
Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
Linux operating systems supported | Yes |
Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Power supply location | External |
Power supply unit (PSU) capacity | 60 W |
Number of power supply units | 1 |
Power consumption (typical) | 24.995 W |
Power consumption (sleep) | 11.315 W |
AC input voltage | 100 - 240 V |
Width | 302 mm |
Depth | 220 mm |
Height | 41.3 mm |
Weight | 1.56 kg |
Package weight | 2.62 kg |
External power adapter | Yes |
Cables included | AC, LAN (RJ-45) |
Enhanced Intel SpeedStep Technology | Yes |
Idle States | Yes |
Intel 64 | Yes |
Intel Trusted Execution Technology | No |
Intel Virtualization Technology (VT-x) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -20 - 70 °C |
Storage relative humidity (H-H) | 5 - 95% |
Harmonized System (HS) code | 84714100 |
Description |

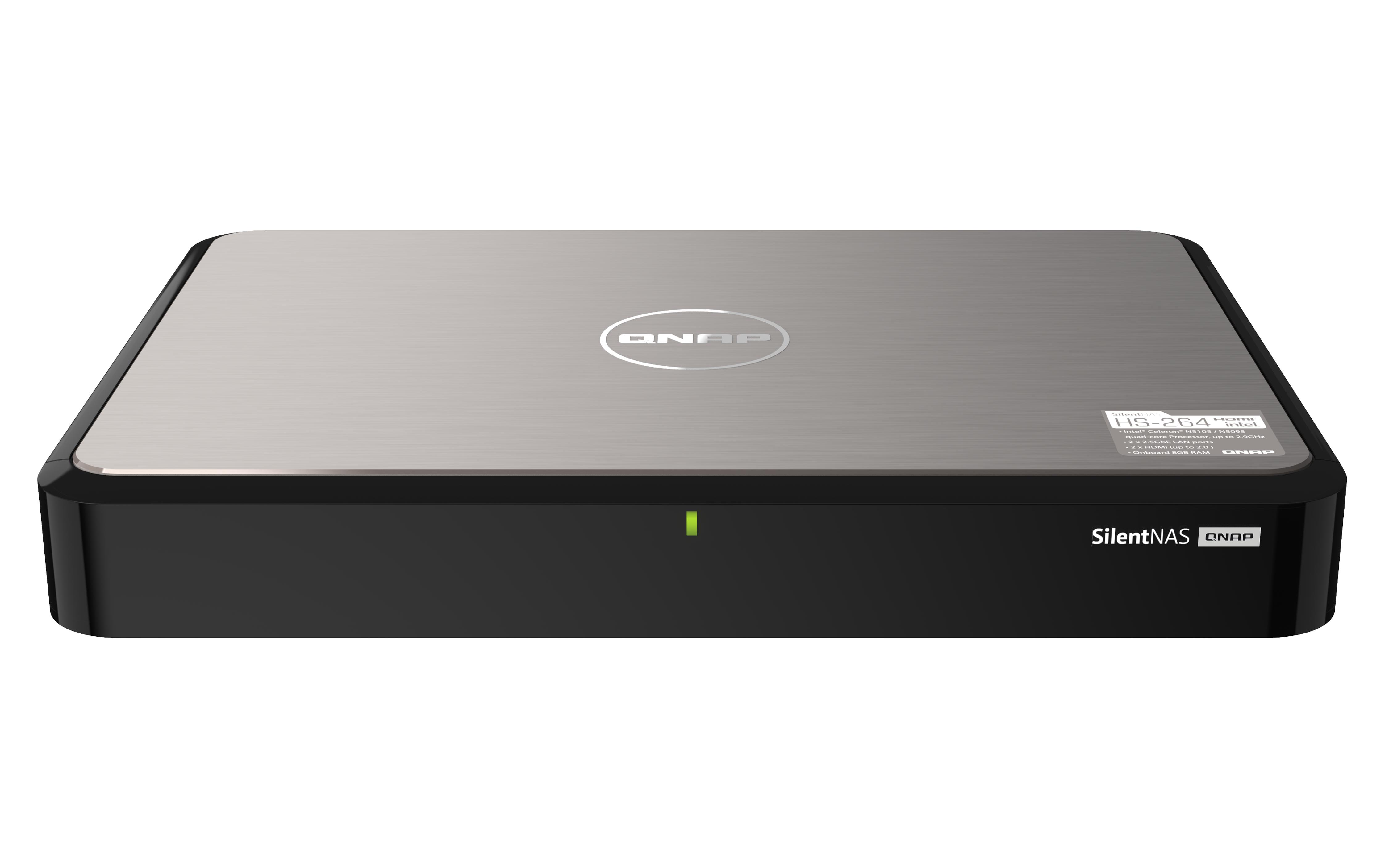

QNAP HS-264. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: Intel® Celeron®, Processor manufacturer: Intel, Processor model: N5105. Internal memory: 8 GB, Maximum RAM supported: 8 GB, Flash memory: 4000 MB. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Chassis type: Tower, Product colour: Black, Cable lock slot type: Kensington |
