| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 14 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 14 |
| Combo SFP ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| HDMI stacking ports | 1 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Fiber ethernet cabling technology | 1000Base-X |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Throughput | 16000 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| DHCP features | DHCP client, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS |
| Loop protection | Yes |
| Multicast MAC address table | 8000 entries |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black, Grey |
| Reset button | Yes |
| LED indicators | Activity, Fan fail, Link, PoE, Speed |
| Number of fans | 2 fan(s) |
| Electromagnetic compatibility | CLASS A, UL62368 |
| Certification | CE, FCC, VCCI, BSMI RCM, CCC |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor model | Intel Celeron J4115 |
| Processor frequency | 1800 MHz |
| Internal memory | 4096 MB |
| Flash memory | 4000 MB |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 418 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 360 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 436.2 mm |
| Depth | 326.2 mm |
| Height | 47.2 mm |
| Weight | 4.41 kg |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Package weight | 5.56 kg |
| Harmonized System (HS) code | 85176990 |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 14 |
| Slot type | PCIe |
| Expansion slots | 2x PCIe Gen2 (x2) |
| I/O ports | 1x USB 3.2 Gen 1 |
| Description |

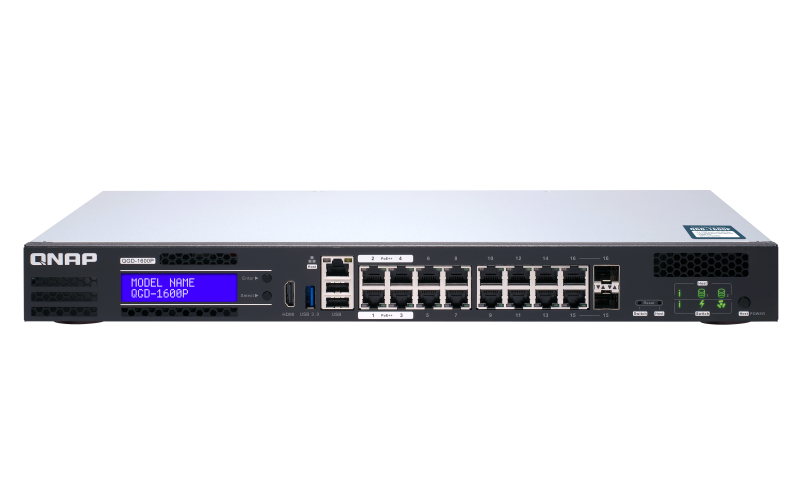

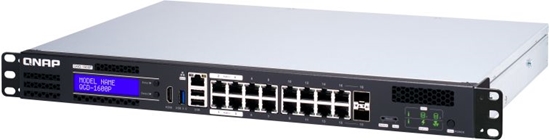

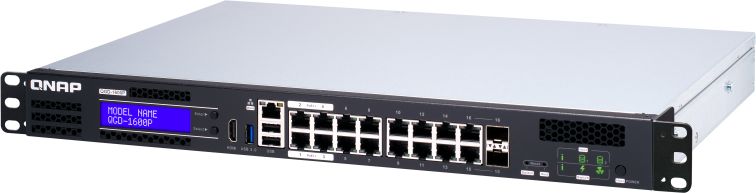

| QNAP QGD-1600P. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 14, USB 2.0 ports quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
