| Storage drives installed | No |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2 |
| Number of M.2 (M & B) slots | 4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Supported file systems | FAT32, NTFS, ext3, ext4 |
| Disk roaming | Yes |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor model | N5105 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.9 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| CPU configuration (max) | 1 |
| Number of processors supported | 1 |
| On-board graphics card model | Intel® UHD Graphics |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 8 GB |
| Flash memory | 4000 MB |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Chassis type | Desktop |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud |
| Buzzer | Yes |
| Multilingual support | Yes |
| Noise level | 25 dB |
| Snapshot | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3 |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
| Hot spare | Yes |
| S.M.A.R.T. support | Yes |
| Operating system installed | QNAP Turbo System |
| Operating system version | 5.0.0 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Power supply location | External |
| Power supply unit (PSU) capacity | 65 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 28 W |
| Power consumption (sleep) | 18 W |
| AC input voltage | 100 - 240 V |
| Width | 230 mm |
| Depth | 165 mm |
| Height | 30 mm |
| Weight | 800 g |
| Package weight | 1.7 kg |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Harmonized System (HS) code | 84714100 |
| Description |

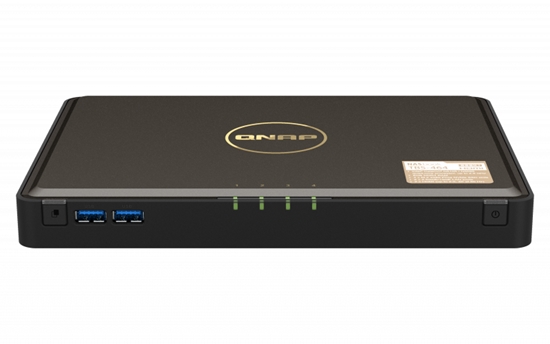

| QNAP TBS-464. Supported storage drive types: SSD, Supported storage drive interfaces: M.2, RAID levels: 0, 1, 5, 6, 10, JBOD. Processor family: Intel® Celeron®, Processor manufacturer: Intel, Processor model: N5105. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 8 GB. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Chassis type: Desktop, Cooling type: Active, Product colour: Black |
