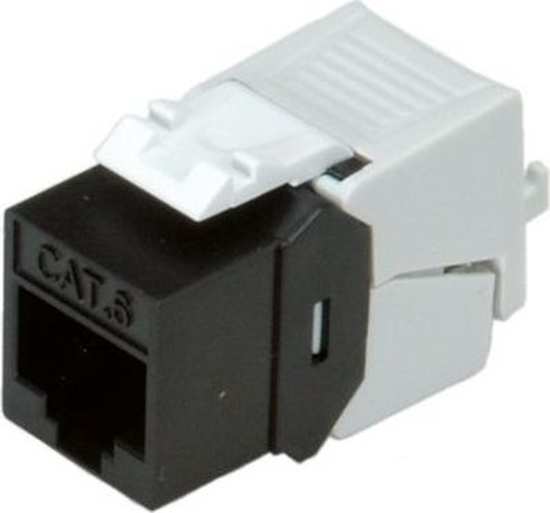

ROLINE Cat.6/Class E Keystone Jack SLIM, RJ-45, unshielded, toolless, black

• The system is composed of a 19" patch panel frame and the UTP Cat.6 RJ-45 keystone jacks
• Assembling of cables and keystones takes place toolless
• Colour code on the keystone jacks, based on the standard EIA/TIA 568 A and 568 B
• Colour: Black

For a structured unshielded Cat.6 cabling system we recommend to use the following components:

ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
Flush Mount Wall Jack for Keystones, unloaded: 25.16.8579
ROLINE Cat.6 Keystone, RJ-45, unshielded: 26.11.0352 (black), 26.11.0353 (white)
19" Keystone Patch Panel, 24 Ports, unshielded: 26.11.0356 (light grey), 26.11.0357 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.

• Manufacturer: ROLINE
• Manufacturer Item No.: 26.11.0375
• Product group: Connection technology TP
• Conveyance good: No
• Product type: RJ45 Keystone Jack
• Colour: black
• Shield type: Not screened
• Transfer quality: Cat6 / Class E
• Assignment: EIA/TIA 568A & 568B
• Assembly cable connection: Krone LSAplus
• Modular assembly: Yes
• Connection direction: Straight
