Manufacturer: ROLINE

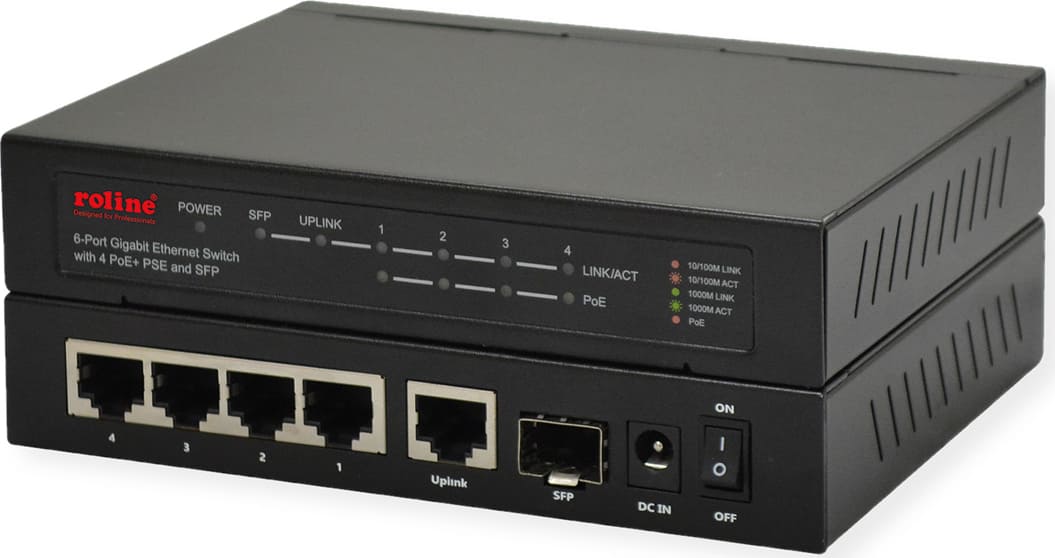

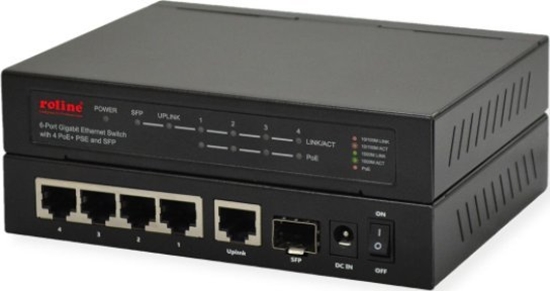

ROLINE Gigabit Ethernet Switch, 6x (5xGbE + 1x Gbic(SFP), 4x PoE+)

€223.73 incl tax

SKU: ST05197039

Manufacturer part number: 21.14.3524

Manufacturer Homepage

Warranty: 24 months

Stock *

Qty:

Products specifications

Properties	RJ-45

Status

7 dienas

Description

Provides 5x TP 10/100/1000Mbps Gigabit Ethernet ports and 1x Gbic (SFP)) 100/1000Mbit/s Fibre: MultiMode 50/125μm, 60/125μm, SingleMode 9/125μm
All 10/100/1000M ports support auto-negotiation and auto-MDI/MDI-X detection
Supports full/half-duplex transfer mode for 10/100Mbps
Supports full-duplex transfer mode for 1000Mbps
Store-and-Forward switching method
Wire-speed packet filtering and forwarding rate
Supports IEEE 802.3x flow control
4x PoE Ports (IEEE 802.3at)
Supports Jumbo Frame up to 9K Bytes
MAC Address Table: 2K
Buffer Memory: 128 kBytes
LED Indication
Environment Operating Temperature: 0°C ~ 40°C (main device)
Dimensions (WxDxH): 147 x 106 x 28 mm

Manufacturer	ROLINE
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Scope of delivery	Switch, power supply (54V DC, 1.6A), manual
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	6
Gigabit Ethernet Ports RJ-45	5
Gigabit Ethernet Ports Fibre	1
Power over Ethernet (PoE)	PoE+
Quantity of PoE ports	4
Stackable	Nē
Dimensions (HxWxD)	147 x 106 x 28 mm
Power supply unit (internal/external)	External
Height	147 mm
Width	106 mm
Depth	28 mm
Current catalog edition	C21-New

Products specifications

Properties	RJ-45

Status

7 dienas

Description

Provides 5x TP 10/100/1000Mbps Gigabit Ethernet ports and 1x Gbic (SFP)) 100/1000Mbit/s Fibre: MultiMode 50/125μm, 60/125μm, SingleMode 9/125μm
All 10/100/1000M ports support auto-negotiation and auto-MDI/MDI-X detection
Supports full/half-duplex transfer mode for 10/100Mbps
Supports full-duplex transfer mode for 1000Mbps
Store-and-Forward switching method
Wire-speed packet filtering and forwarding rate
Supports IEEE 802.3x flow control
4x PoE Ports (IEEE 802.3at)
Supports Jumbo Frame up to 9K Bytes
MAC Address Table: 2K
Buffer Memory: 128 kBytes
LED Indication
Environment Operating Temperature: 0°C ~ 40°C (main device)
Dimensions (WxDxH): 147 x 106 x 28 mm

Manufacturer	ROLINE
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Scope of delivery	Switch, power supply (54V DC, 1.6A), manual
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	6
Gigabit Ethernet Ports RJ-45	5
Gigabit Ethernet Ports Fibre	1
Power over Ethernet (PoE)	PoE+
Quantity of PoE ports	4
Stackable	Nē
Dimensions (HxWxD)	147 x 106 x 28 mm
Power supply unit (internal/external)	External
Height	147 mm
Width	106 mm
Depth	28 mm
Current catalog edition	C21-New
