    Manufacturer: ROLINE

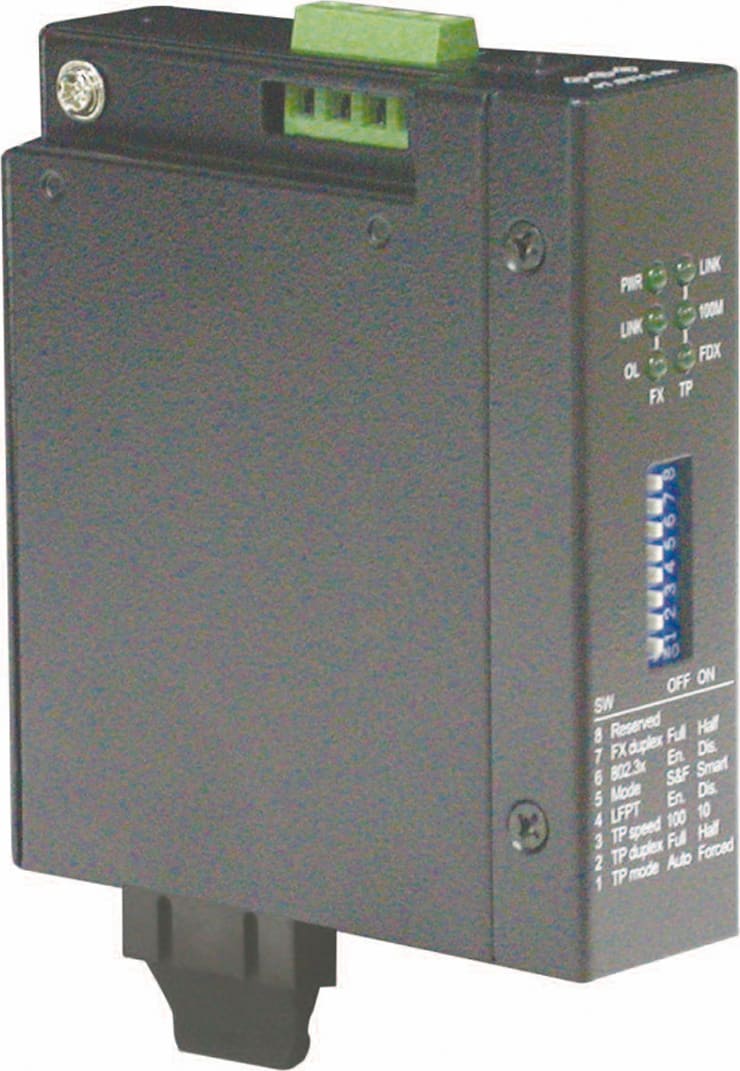

    ROLINE Industrial Converter 10/100Base-T - Multimode Optical Fiber, SC


    €204.34 incl tax

    SKU: ST04621389
    Manufacturer part number: 21.13.1143
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Color Black
    Properties RJ-45
    Status7 dienas
    Description

    • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
    • Support auto-negotiation 10/100Mbps or forced mode on TP copper port
    • Auto MDI/MDI-X crossover function on the TP copper port
    • Provide Link Fault Pass Through function
    • Provide comprehensive manual configuration settings
    • Transparent conversion to 802.1Q VLAN tagged packets
    • Provides Far End Fault function on FX (fiber) port
    • Low power consumption
    • DC Input via terminal block or DC power jack (6.3mm/2.0mm)
    • Power: Input: 7 - 30V DC, Consumption: 2.6W (max.)
    • Operating Temperature: - 10 °C - +70 °C
    • Supports DIN rail mounting
    • Industrial-rated Emission and Immunity performance
    • Dimensions: 28 x 82 x 95 mm (WxDxH)
    • As according Power Supply Unit we recommend 21.13.1226



    Manufacturer ROLINE
    Product group Network converters
    Product type Media Converter
    Colour black
    RJ-45 Port (Mbps/s) 10/100
    Fibre Ports (Mbps) 100
    Quantity of RJ45 ports 1
    Quantity of fibre SC ports 1
    Fibre Multimode
    Ethernet fibre standard 100Base-FX
    Max. range 50 µm fibre 2 km
    Max. range 62,5 µm fibre 2 km
    Managed Nē
    Technical particularity - 10 ºC - +70 ºC
    height 95 mm
    width 28 mm
    depth 82 mm
    Weight 277.2 g
    Current catalog edition C21-01.11

    Products specifications
    Color Black
    Properties RJ-45
    Status7 dienas
    Description

    • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
    • Support auto-negotiation 10/100Mbps or forced mode on TP copper port
    • Auto MDI/MDI-X crossover function on the TP copper port
    • Provide Link Fault Pass Through function
    • Provide comprehensive manual configuration settings
    • Transparent conversion to 802.1Q VLAN tagged packets
    • Provides Far End Fault function on FX (fiber) port
    • Low power consumption
    • DC Input via terminal block or DC power jack (6.3mm/2.0mm)
    • Power: Input: 7 - 30V DC, Consumption: 2.6W (max.)
    • Operating Temperature: - 10 °C - +70 °C
    • Supports DIN rail mounting
    • Industrial-rated Emission and Immunity performance
    • Dimensions: 28 x 82 x 95 mm (WxDxH)
    • As according Power Supply Unit we recommend 21.13.1226



    Manufacturer ROLINE
    Product group Network converters
    Product type Media Converter
    Colour black
    RJ-45 Port (Mbps/s) 10/100
    Fibre Ports (Mbps) 100
    Quantity of RJ45 ports 1
    Quantity of fibre SC ports 1
    Fibre Multimode
    Ethernet fibre standard 100Base-FX
    Max. range 50 µm fibre 2 km
    Max. range 62,5 µm fibre 2 km
    Managed Nē
    Technical particularity - 10 ºC - +70 ºC
    height 95 mm
    width 28 mm
    depth 82 mm
    Weight 277.2 g
    Current catalog edition C21-01.11
