| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| VGA (D-Sub) ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Aluminium |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD, SDHC, SDXC |
| Maximum memory card size | 2 GB |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1080 pixels |
| Housing material | Aluminium |
| Certification | DP 1.2 Alt Mode over USB-C
USB 3.2 Gen 1
HDMI 1.4
HDCP 1.4
CE
FCC
RoHS
UKCA |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8.1 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 280 mm |
| Depth | 80 mm |
| Height | 17 mm |
| Weight | 245 g |
| Quantity per pack | 1 pc(s) |
| Package weight | 355 g |
| Manual | Yes |
| Description |

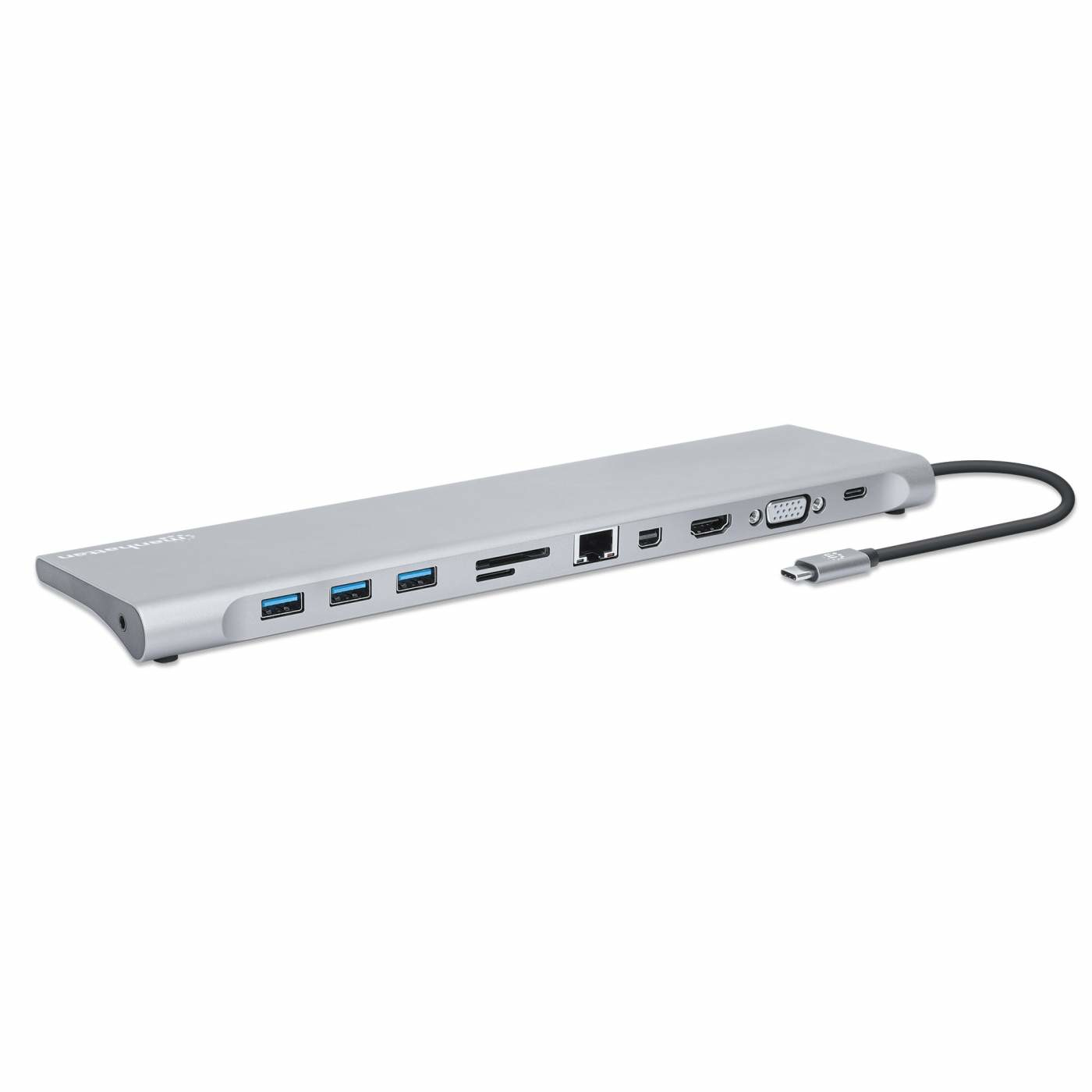

| Manhattan USB-C Dock/Hub with Card Reader and MST, Ports (x9): Audio 3.5mm, Mini DP, Ethernet, HDMI, USB-A (x3), USB-C and VGA, With Power Delivery (100W) to USB-C Port (Note add USB-C wall charger and USB-C cable needed),All Ports can be used at the same time. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Aluminium, Compatible memory cards: MicroSD (TransFlash), SD, SDHC, SDXC, Maximum memory card size: 2 GB. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8.1, Mobile operating systems supported: Android, Other operating systems supported: ChromeOS. Width: 280 mm, Depth: 80 mm, Height: 17 mm |
