    Manufacturer: TELTONIKA

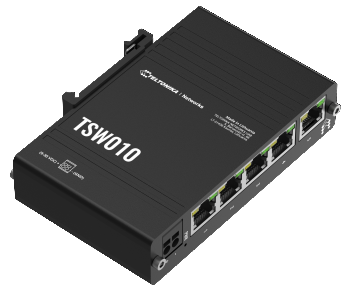

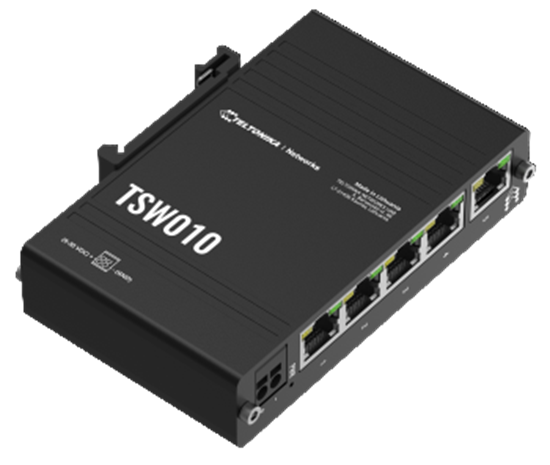

    TELTONIKA TSW010 IOT SWITCH 5X10/100 RJ45


    €29.50 incl tax

    SKU: ST06741298
    Manufacturer part number: TSW010000000
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LT
    LV
    LT

    Products specifications
    Properties RJ-45
    DescriptionTELTONIKA TSW010 IOT SWITCH 5X10/100 RJ45
    CountryofOriginCHINA
    TariffHeading84719000
    PictureLocationhttps://www2.f9baltic.com/productimages/big/TSW010000000.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/TSW010000000.jpg
    AdditionalPictures TSW010000000_5.jpg TSW010000000_4.jpg TSW010000000_3.jpg TSW010000000_2.jpg
    Weight0.220000
    Height40.000000
    Length180.000000
    Width150.000000
    BoxSize0
    PalletSize0
    MAC address table, entries2K
    Dimensions W x D x H, mm113.1 x 80.5 x 27.4
    Weight, g146.5
    Ethernet LAN (RJ-45) ports quantity5
    IP classificationIP30
    Bandwidth, Gbit/s1
    Green certificationsREACH
    Green certificationsRoHS compliant
    Green certificationsWEEE
    Ports quantity5
    Auto MDI/MDI-XYes
    Jumbo Frames support9216 bytes
    Power over Ethernet (PoE) SupportNo
    Operating temperature range (T-T), �C- 40 - 75
    Networking standards802.3i, 802.3u, 802.3x, 802.3az
    Ethernet LAN data transfer rates, Mbit/s10/100
    Description
    TSW010 DIN RAIL SWITCH

    TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices.

    Five 10/100 Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

    Wide range of supported power supply voltages (9-30 V) and rugged design make it suitable for professional solutions.

    Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.
    Description

    TSW010
    DIN RAIL ETHERNET SWITCH



    TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.



    teltonika-networks.com/products/ethernet-switches/tsw010
    Gross depth (mm)90.00
    Gross height (mm)30.00
    Gross weight0.30
    Gross width (mm)117.00
    Net weight0.15
    Packing quantity1.00
    Paper/Pasteboard153.00
    Tare weight (kg)0.15
    Volume (m3)0.00
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerTeltonika
    Palette Qty2735
    Switch typeUnmanaged
    Form factorWall-mountable
    Power over Ethernet (PoE)No
    Producer product nameTSW010
    Producer product familyEthernet Switch
    Predominant port type10/100 Mbps (RJ-45)
    10/100 Mbps (RJ-45) ports quantity5
    Warranty24

    Products specifications
    Properties RJ-45
    DescriptionTELTONIKA TSW010 IOT SWITCH 5X10/100 RJ45
    CountryofOriginCHINA
    TariffHeading84719000
    PictureLocationhttps://www2.f9baltic.com/productimages/big/TSW010000000.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/TSW010000000.jpg
    AdditionalPictures TSW010000000_5.jpg TSW010000000_4.jpg TSW010000000_3.jpg TSW010000000_2.jpg
    Weight0.220000
    Height40.000000
    Length180.000000
    Width150.000000
    BoxSize0
    PalletSize0
    MAC address table, entries2K
    Dimensions W x D x H, mm113.1 x 80.5 x 27.4
    Weight, g146.5
    Ethernet LAN (RJ-45) ports quantity5
    IP classificationIP30
    Bandwidth, Gbit/s1
    Green certificationsREACH
    Green certificationsRoHS compliant
    Green certificationsWEEE
    Ports quantity5
    Auto MDI/MDI-XYes
    Jumbo Frames support9216 bytes
    Power over Ethernet (PoE) SupportNo
    Operating temperature range (T-T), �C- 40 - 75
    Networking standards802.3i, 802.3u, 802.3x, 802.3az
    Ethernet LAN data transfer rates, Mbit/s10/100
    Description
    TSW010 DIN RAIL SWITCH

    TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices.

    Five 10/100 Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

    Wide range of supported power supply voltages (9-30 V) and rugged design make it suitable for professional solutions.

    Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.
    Description

    TSW010
    DIN RAIL ETHERNET SWITCH



    TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.



    teltonika-networks.com/products/ethernet-switches/tsw010
    Gross depth (mm)90.00
    Gross height (mm)30.00
    Gross weight0.30
    Gross width (mm)117.00
    Net weight0.15
    Packing quantity1.00
    Paper/Pasteboard153.00
    Tare weight (kg)0.15
    Volume (m3)0.00
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerTeltonika
    Palette Qty2735
    Switch typeUnmanaged
    Form factorWall-mountable
    Power over Ethernet (PoE)No
    Producer product nameTSW010
    Producer product familyEthernet Switch
    Predominant port type10/100 Mbps (RJ-45)
    10/100 Mbps (RJ-45) ports quantity5
    Warranty24
