    Manufacturer: TP-LINK

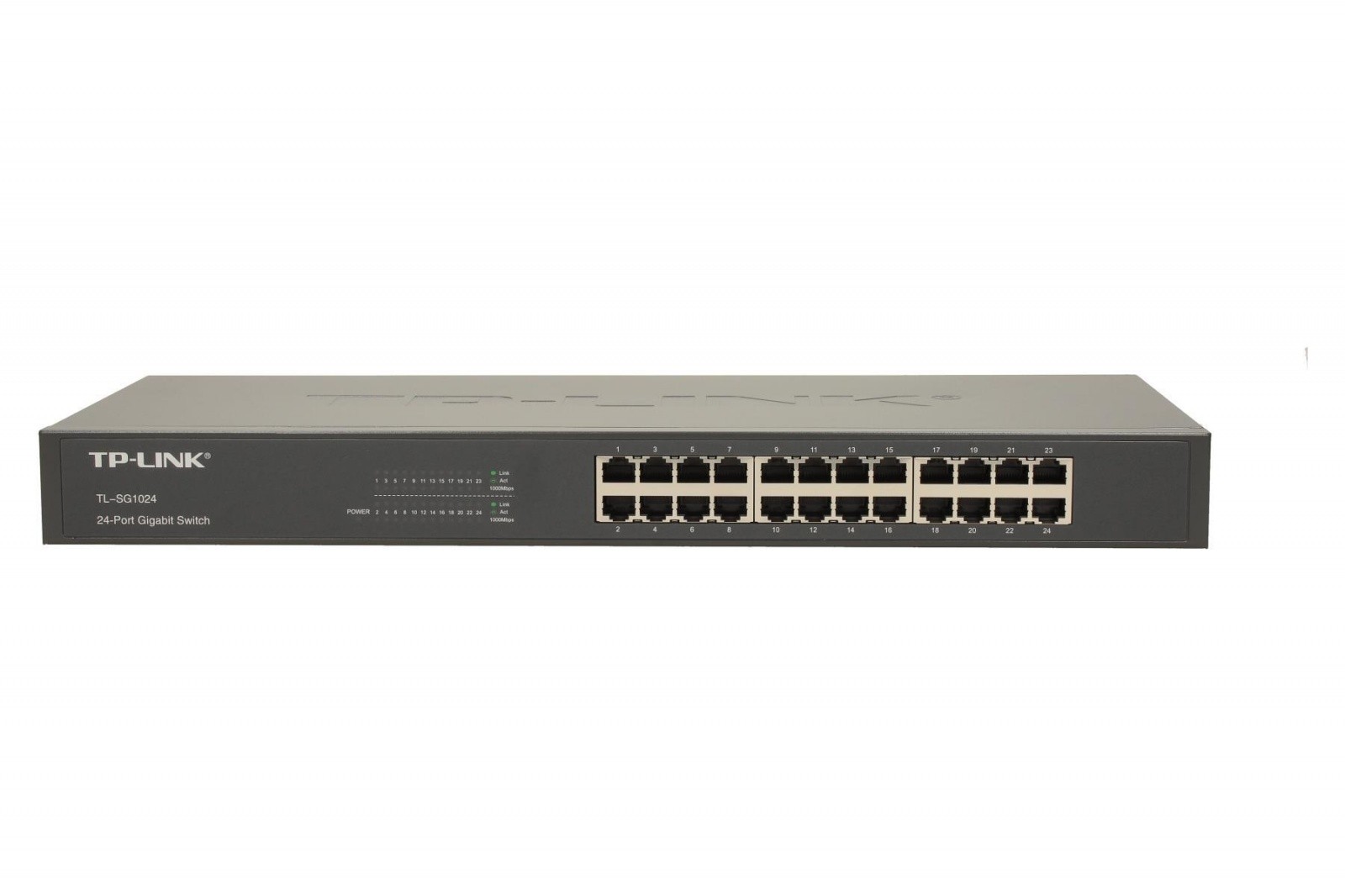

    TP-Link TL-SG1024 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black


    €90.07 incl tax

    SKU: ST00614982
    Manufacturer part number: TL-SG1024
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    LT
    PL
    LT
    DE

    Products specifications
    Properties RJ-45
    RJ-45 port 24
    WRL stadarti 802.11b
    Switch classUnmanaged
    ApplicationMedium and large companies
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports24
    Number of SFP portsNone
    Number of COMBO portsNone
    Number of PoE ports (PoE & PoE+)None
    Supported protocols and standards

    IEEE802.3
    IEEE802.3u
    IEEE802.3ab
    IEEE802.3x
    CSMA/CD
    TCP/IP

    MAC address table size8000
    Throughput48 (Gigabity na sek.)
    Support for Jumbo framesNo
    Switch layerL2
    Power supply Internal
    Other features

    Dopuszczalna temperatura pracy:
    0℃~40℃ (32℉~104℉)
    Dopuszczalna temperatura przechowywania:
    -40℃~70℃ (-40℉~158℉)
    Dopuszczalna wilgotność powietrza:
    10%~90%, niekondensująca
    Dopuszczalna wilgotność przechowywania:
    5%~90%, niekondensująca

    Dimensions

    440 x 180 x 44 mm

    Chassis typeRack
    Width250
    Height530
    Depth80
    Weight2786
    Description

    Przełącznik TL-SG1024 przeznaczony jest do tworzenia niezawodnych połączeń w sieciach Ethernet (10Mb/s), Fast Ethernet (100Mb/s) oraz Gigabit Ethernet (1000Mb/s). Każdy port urządzenia może pracować w trybie pełnego dupleksu z prędkością do 2000Mb/s. Przełącznik ten stanowi idealne urządzenie do zastosowań w biurach czy sieciach grup roboczych.

    • Urządzenie pracuje w trybie pełnego i pół dupleksu transmitując dane z prędkością 10 i 100Mb/s oraz w trybie pełnego dupleksu przy transmisji 1000Mb/s
    • Funkcja automatycznego krosowania (Auto-MDI/MDIX)
    • Wsparcie standardu kontroli przepustowości dla trybu pełnego dupleksu (IEEE802.3x) oraz funkcji backpressure dla trybu pół dupleksu
    • Program przełączania pakietów metodą store and forward
    Switch typeUnmanaged
    Switch layerL2
    Quality of Service (QoS) supportYes
    Basic switching RJ-45 Ethernet ports quantity24
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
    10G supportNo
    Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroringYes
    Full duplexYes
    Flow control supportYes
    Link aggregationYes
    Broadcast storm controlYes
    Rate limitingYes
    Auto MDI/MDI-XYes
    Number of VLANs32
    MAC address table8000 entries
    Switching capacity48 Gbit/s
    Throughput35.7 Mpps
    Store-and-forwardYes
    Number of queues4
    Jumbo frames supportYes
    Jumbo frames10000
    Packet buffer memory4.1 MB
    IGMP snoopingYes
    Rack mountingYes
    Product colourBlack
    LED indicatorsYes
    CertificationFCC, CE, RoHS
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (typical)14.19 W
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 90%
    Storage relative humidity (H-H)5 - 90%
    Heat dissipation48.39 BTU/h
    Width294 mm
    Depth180 mm
    Height44 mm
    Cables includedAC
    User guideYes
    Package typeBox
    Rack mount kitYes
    Harmonized System (HS) code85176990
    Description
    TP-Link TL-SG1024. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting
    Description
    24xRJ45 | Auto-negotiation | Switching capacity 48 Gbps | Included Accessories Power Cord; User Guide | Unit Net Weight 2.2 kg
    DescriptionTP-LINK 24port Gigab. Switch 19in-Rack
    VatTypeVAT
    Weight2.540000000
    Height88.000000000
    Width252.000000000
    Length532.000000000
    Description
    TP-LINK 24port Gigab. Switch 19in-Rack
    Gross depth (mm)80
    Gross height (mm)250
    Gross weight2.472
    Gross width (mm)525
    Net weight2.402
    Packing quantity6
    Paper/Pasteboard55.00
    Plastic (No PET)15.00
    Tare weight (kg)0.07
    Volume (m3)0.0105
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Switch typeUnmanaged
    Producer product nameTL-SG1024
    Form factorRackmountable
    Producer product family24-Port Gigabit Rackmount Switch
    Predominant port type10/100/1000 Mbps (RJ-45)
    Tare other2.00
    Gross depth master carton545
    Gross width master carton520
    Gross height master carton275
    Net weight master carton14.832
    Tare weight master carton1.325
    POENo
    Ethernet LAN (RJ-45) ports24
    Colour of productBlack
    Palette Qty132
    ProducerTP-LINK
    Warranty60
    Description
    The TL-SG1024 24-Port Gigabit rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.•24 10/100/1000Mbps RJ45 ports•Innovative energy-efficient technology saves power up to 40%•Supports MAC address self-learning and auto MDI/MDIX•Standard 19-inch rack-mountable steel case
    Description
    24P TP-Link TL-SG1024 RM
