Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G support | No |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
MAC address auto-learning supported | Yes |
MAC address auto-aging supported | Yes |
MAC address table | 2000 entries |
Switching capacity | 10 Gbit/s |
Forwarding rate | 7.44 Mpps |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 16000 |
IGMP snooping | Yes |
Rack mounting | No |
Product colour | Black |
LED indicators | Yes |
Wall mountable | Yes |
Certification | FCC, CE, RoHS |
Fanless | Yes |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 47.5 W |
Power over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 4 |
Total Power over Ethernet (PoE) budget | 40 W |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Heat dissipation | 161.98 BTU/h |
Width | 99.8 mm |
Depth | 98 mm |
Height | 25 mm |
User guide | Yes |
Harmonized System (HS) code | 85176990 |
Description |

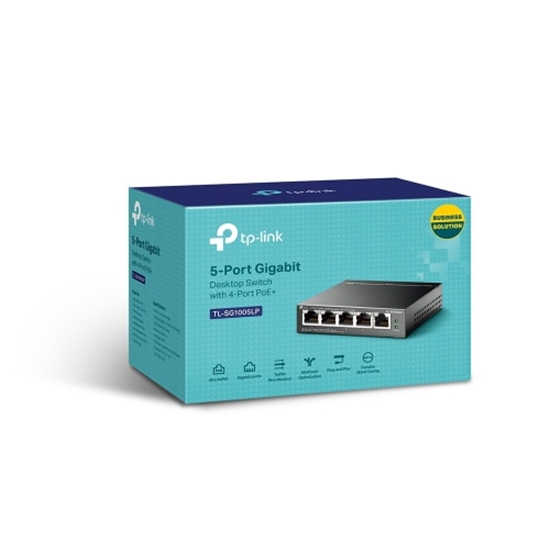

TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable |
