Manufacturer: TP-LINK

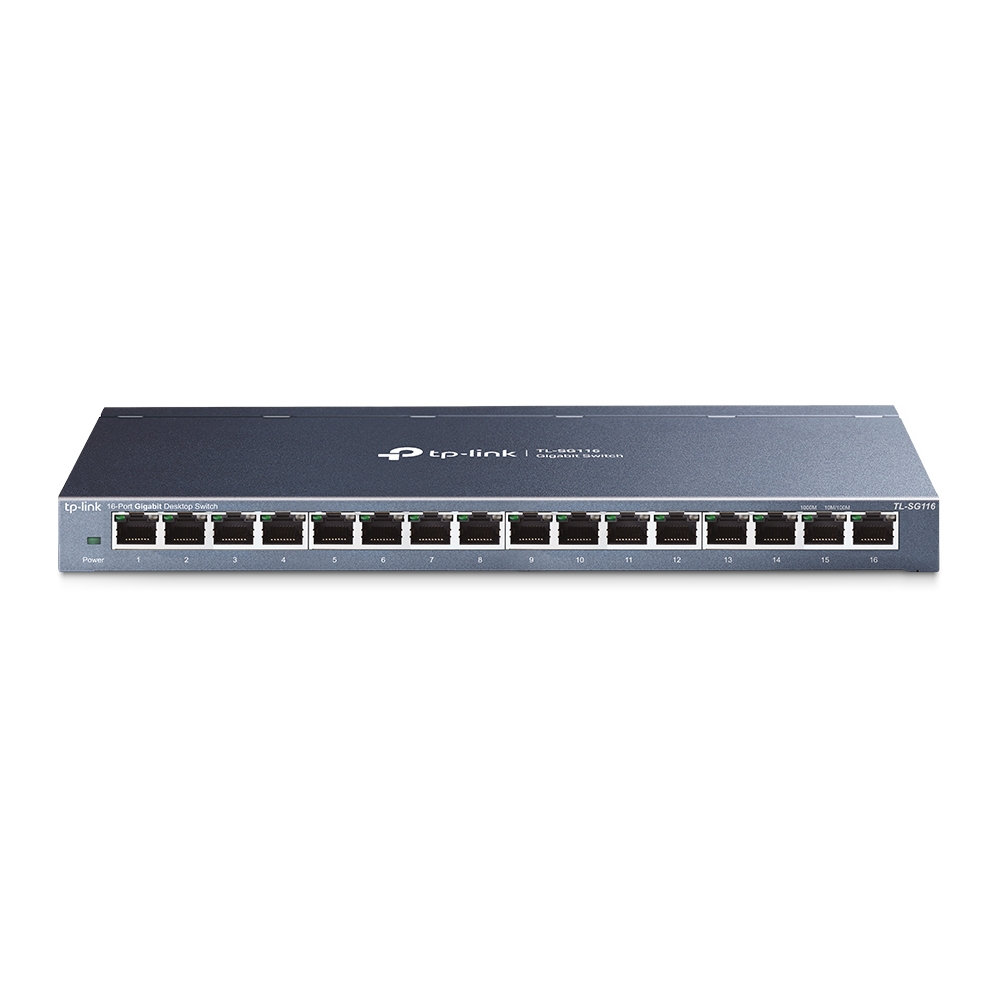

TP-LINK TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

€67.42 incl tax

SKU: ST03456929

Manufacturer part number: TL-SG116

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	2	€67.42 incl tax
DE	5 - 10 days	10	€68.35 incl tax
PL	9 - 12 days	30	€78.23 incl tax
LT	5 - 15 days	5	€84.06 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7
Details 8

WRL stadarti	802.11b
Properties	RJ-45
RJ-45 port	16

Switch class	Unmanaged
Application	Home and small office
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	16
Console port	No
Forwarding mode	Store-and-forward
Forwarding rate	23.8 (Mpps)
Packet buffer	4.1 (MegaBajt)
MAC address table size	8000
Support for Jumbo frames	Yes
Jumbo frame size	10 (Kilobajt)
Supported protocols and standards	IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p
Other functions	Zielona technologia 802.3x Flow Control 802.1p / DSCP QoS IGMP Snooping Plug and play, bez konieczności konfiguracji
Chassis type	Desktop
Fan	No
Power consumption	10 (Watt)
Accessories included	Zasilacz Instrukcja instalacji Gumowe nóżki
Power supply	Zewnętrzny zasilacz (wyjście: 12VDC / 1.0A)
Dimensions	286 x 112 x 25 mm
Designation	CE+WEEE
Width	415
Height	170
Depth	75
Weight	1320
Description
Description	Przełącznik pulpitu TP-Link 16-Port 10/100/1000 Mbps zapewnia łatwy sposób na przejście na Gigabit Ethernet. Zwiększ szybkość swojego serwera sieciowego i połączeń szkieletowych lub spraw, aby Gigabit na pulpicie stał się rzeczywistością. Konstrukcja typu Plug and Play, bez konieczności konfiguracji, sprawia, że produkt jest łatwy w użyciu. Ponadto TL-SG116 przyjmuje mniejszy projekt zużycia energii. Dzięki innowacyjnej technologii energooszczędnej, TL-SG116 może oszczędzać zużycie energii, dzięki czemu jest przyjaznym dla środowiska rozwiązaniem dla sieci domowej lub biurowej.

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Cable length detection	Yes
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, Tagged VLAN
Number of VLANs	32
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
IGMP snooping	Yes
Loop protection	Yes
Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	9 V
Input current	0.6 A
Power consumption (max)	9.3 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	31.68 BTU/h
Width	286 mm
Depth	111.7 mm
Height	25.4 mm
Cables included	AC
Quick start guide	Yes
Harmonized System (HS) code	85176990
Description
Description	TP-Link TL-SG116. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Wall mountable

Description
	Desktop/pedestal \| 16x10Base-T / 100Base-TX / 1000Base-T \| IEEE 802.1p \| IEEE 802.3ab \| IEEE 802.3i \| IEEE 802.3u \| IEEE 802.3x \| Forwarding rate 23.8 Mpps \| Switching method Store-and-forward \| Included Accessories Power Adapter, Installation Guide, Rubber Feet \| Dimensions 286 x 112 x 25 mm \| Unit Net Weight 1.2 kg

Description	TP-LINK 16-Port Gigabit Desktop Switch
VatType	VAT
Weight	1.337000000
Height	170.000000000
Width	80.000000000
Length	410.000000000
Description
Description	TP-LINK 16-Port Gigabit Desktop Switch RJ45 Ports Desktop Steel Case

Description	TP-LINK 16-Port Gigabit Desktop Switch
VatType	VAT
Weight	1.337000000
Height	170.000000000
Width	80.000000000
Length	410.000000000
Description
Description	TP-LINK 16-Port Gigabit Desktop Switch RJ45 Ports Desktop Steel Case

Gross depth (mm)	410
Gross height (mm)	170
Gross weight	1.249
Gross width (mm)	70
Net weight	0.852
Packing quantity	10
Paper/Pasteboard	382
Plastic (No PET)	15.00
Tare weight (kg)	0.397
Volume (m3)	0.004879
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Gross depth master carton	430
Gross width master carton	355
Gross height master carton	375
Net weight master carton	12.49
Tare weight master carton	0.973
Switch type	Unmanaged
Producer product name	TL-SG116
Interface	16 × 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Form factor	Desktop
Producer product family	16-Port Gigabit Switch
Predominant port type	10/100/1000 Mbps (RJ-45)
Tare other	2.00
POE	No
Ethernet LAN (RJ-45) ports	16
Operating relative humidity (H-H)	10–90 (non-condensing)
Storage temperature (T-T)	-40–70
Storage relative humidity (H-H)	5–90 (non-condensing)
Operating temperature (T-T)	0–40
Palette Qty	300
Producer	TP-LINK
Warranty	60

Description
	16-Port Gigabit Desktop Switch - 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX - Green Ethernet technology saves power consumption - IEEE 802.3x flow control provides reliable data transfer - Steel housing, desktop or wall-mounting design - Support 802.1p/DSCP QoS and IGMP Snooping function - Plug and play, with no configuration needed

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7
Details 8

WRL stadarti	802.11b
Properties	RJ-45
RJ-45 port	16

Switch class	Unmanaged
Application	Home and small office
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	16
Console port	No
Forwarding mode	Store-and-forward
Forwarding rate	23.8 (Mpps)
Packet buffer	4.1 (MegaBajt)
MAC address table size	8000
Support for Jumbo frames	Yes
Jumbo frame size	10 (Kilobajt)
Supported protocols and standards	IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p
Other functions	Zielona technologia 802.3x Flow Control 802.1p / DSCP QoS IGMP Snooping Plug and play, bez konieczności konfiguracji
Chassis type	Desktop
Fan	No
Power consumption	10 (Watt)
Accessories included	Zasilacz Instrukcja instalacji Gumowe nóżki
Power supply	Zewnętrzny zasilacz (wyjście: 12VDC / 1.0A)
Dimensions	286 x 112 x 25 mm
Designation	CE+WEEE
Width	415
Height	170
Depth	75
Weight	1320
Description
Description	Przełącznik pulpitu TP-Link 16-Port 10/100/1000 Mbps zapewnia łatwy sposób na przejście na Gigabit Ethernet. Zwiększ szybkość swojego serwera sieciowego i połączeń szkieletowych lub spraw, aby Gigabit na pulpicie stał się rzeczywistością. Konstrukcja typu Plug and Play, bez konieczności konfiguracji, sprawia, że produkt jest łatwy w użyciu. Ponadto TL-SG116 przyjmuje mniejszy projekt zużycia energii. Dzięki innowacyjnej technologii energooszczędnej, TL-SG116 może oszczędzać zużycie energii, dzięki czemu jest przyjaznym dla środowiska rozwiązaniem dla sieci domowej lub biurowej.

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Cable length detection	Yes
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, Tagged VLAN
Number of VLANs	32
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
IGMP snooping	Yes
Loop protection	Yes
Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	9 V
Input current	0.6 A
Power consumption (max)	9.3 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	31.68 BTU/h
Width	286 mm
Depth	111.7 mm
Height	25.4 mm
Cables included	AC
Quick start guide	Yes
Harmonized System (HS) code	85176990
Description
Description	TP-Link TL-SG116. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Wall mountable

Description
	Desktop/pedestal \| 16x10Base-T / 100Base-TX / 1000Base-T \| IEEE 802.1p \| IEEE 802.3ab \| IEEE 802.3i \| IEEE 802.3u \| IEEE 802.3x \| Forwarding rate 23.8 Mpps \| Switching method Store-and-forward \| Included Accessories Power Adapter, Installation Guide, Rubber Feet \| Dimensions 286 x 112 x 25 mm \| Unit Net Weight 1.2 kg

Description	TP-LINK 16-Port Gigabit Desktop Switch
VatType	VAT
Weight	1.337000000
Height	170.000000000
Width	80.000000000
Length	410.000000000
Description
Description	TP-LINK 16-Port Gigabit Desktop Switch RJ45 Ports Desktop Steel Case

Description	TP-LINK 16-Port Gigabit Desktop Switch
VatType	VAT
Weight	1.337000000
Height	170.000000000
Width	80.000000000
Length	410.000000000
Description
Description	TP-LINK 16-Port Gigabit Desktop Switch RJ45 Ports Desktop Steel Case

Gross depth (mm)	410
Gross height (mm)	170
Gross weight	1.249
Gross width (mm)	70
Net weight	0.852
Packing quantity	10
Paper/Pasteboard	382
Plastic (No PET)	15.00
Tare weight (kg)	0.397
Volume (m3)	0.004879
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Gross depth master carton	430
Gross width master carton	355
Gross height master carton	375
Net weight master carton	12.49
Tare weight master carton	0.973
Switch type	Unmanaged
Producer product name	TL-SG116
Interface	16 × 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Form factor	Desktop
Producer product family	16-Port Gigabit Switch
Predominant port type	10/100/1000 Mbps (RJ-45)
Tare other	2.00
POE	No
Ethernet LAN (RJ-45) ports	16
Operating relative humidity (H-H)	10–90 (non-condensing)
Storage temperature (T-T)	-40–70
Storage relative humidity (H-H)	5–90 (non-condensing)
Operating temperature (T-T)	0–40
Palette Qty	300
Producer	TP-LINK
Warranty	60

Description
	16-Port Gigabit Desktop Switch - 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX - Green Ethernet technology saves power consumption - IEEE 802.3x flow control provides reliable data transfer - Steel housing, desktop or wall-mounting design - Support 802.1p/DSCP QoS and IGMP Snooping function - Plug and play, with no configuration needed
