Weight | 0.00 |
Description |

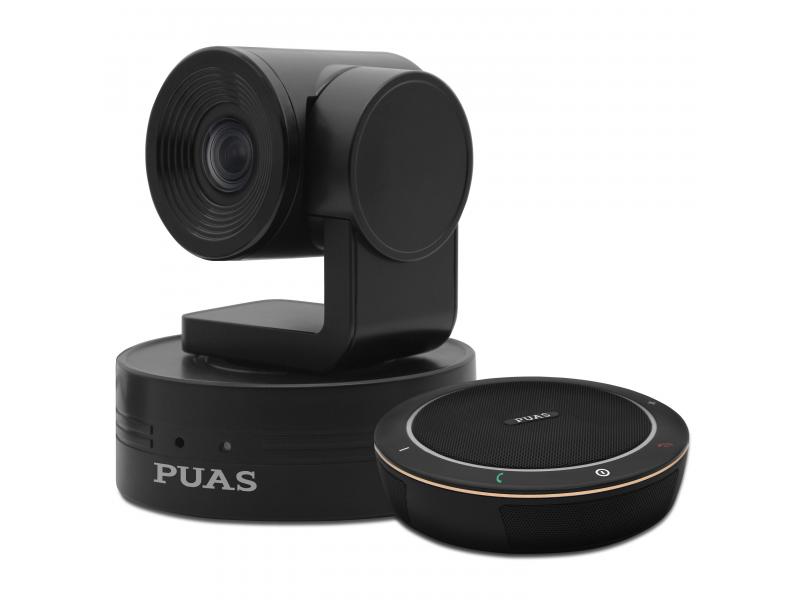

USB Conferencing System Kits PUS-U21VC PUS-U21VC-KITS is a software video conferencing suite or audio and video kit for collaborative office system. It has built-in 10X 1080P wide-angle lens. the kits including an omnidirectional USB icrophone. which can be collected voice at a distance of 3 meters. It is suitable for small professional conference rooms or UC unified communication and instant messaging software within 30 square meters. It is compatible with various conference Skype for business, Cisco Zoom, WebEx APKs or video conferencing software, and is the best choice for software video conferencing solution. Compatibility Windows 7/8/8.1/10, Mac OS X, Android & Linus System, BlueJeans, Easymeeting, Cisco Jabber ® and WebEx ® ,Citrix ®, GoToMeeting, Google Hangouts, Microsoft ® Skype , Gruveo, Zoom, and Skype for Business, Vidyo , Konftel , Avaya , Starleaf , Kontel, Trueconf , Polycom, Lifesize etc API or VC Software Functions - Suitable for meeting room size up to 20~30 square meters.
- Support for on-site meetings of up to 8-10 people.
- Built-in VISCA, PELCO P/D multiple control protocols
- Support USB or RS232/RS485 interface to control
- Ultra-quiet pan/tilt design, horizontal 178°, vertical -30°~ +90° rotation
- Over-New Mini compact structure, direct driven by imported high-precision stepper motor, accuracy less than 0.01°
- Video output supports up to 1080P@30fps
- USB 2.0 video output, plug and play
- Support ceiling, wall mount, tripod multiple installation of methods
- Strong compatibility, support Windows, Android system, Linux, Mac, IOS
Camera: - Video System 1920*1080; 1280*720; 640*480; 640*360; 352*288; 320*240
- Sensor 1/2.8'', CMOS, Effective Pixel: 2.07M
- Lens 10x, f5.1mm ~ 51mm, F1.8 ~ F2.8
- Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
- Shutter 1/30s ~ 1/10000s
- White Balance Auto, Indoor, Outdoor, One Push, Manual
- Backlight Compensation support
- Digital Noise Reduction 2D & 3D Support
- S/N Ratio ≥55dB
- Horizontal Angle of View 72°
- Horizontal Rotation Range ±178°
- Vertical Rotation Range -30° ~ +90°
- Pan Speed Range 0.1° ~ 100°/s
- Tilt Speed Range 0.1° ~ 80°/s
- Image Mirror SUPPORT
- Image Flip SUPPORT
- Number of Preset Max 255 (9Presets by Remote)
- Accuracy 0.01°
USB Functions - Operate System Windows XP, Windows 7, Windows 8/8.1/10, Mac OS X, Linux
- Color System / Compression H.264 / MJPEG
- Video Format 1920*1080; 1280*720; 640*480; 640*360; 352*288; 320*240
- Audio on USB
- USB Video Protocol UVC 1.0 ~ UVC 1.5
- UVC Support
Input/ Output - USB Interface 1*USB2.0: Type B female jack
- Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco- P
- Power Jack JEITA type (DC IN 12V)
Generic - Input Voltage DC 12V
- Current Consumption 1.0A(max)
- Operating Temperature 0°C ~ 40°
- Power Consumption 12W(max)
- Size(mm) 120mm x 135mm x 120mm
- Gross Weight 1.2kgs
Desk Speaker & Microphone - Input/Output
- USB USB interface to PC OR USB Hub Device
- IN/OUT Analog Line In/Out, Mobile, PC, Confrencing Interface
- Earphone 3.5mm Earphone or Extend
- Power Micro 5Pin USB Interface
- Microphone Frequency 100Hz-22KHz
- Speaker Frequency 100Hz-22KHz
- Speaker Volume 85dB
- Microphone Coverge 3Meters
- Deep Echo Cancellation
- Main Features Dynamic Noise Suppression
- Automatic Gain Control
- Power On/OFF
- Key Button functions Phone Pickup /Hang off
- Voice Increase / Reduce /Mute
BlueJeans, Easymeeting, Cisco Jabber ® and WebEx ® ,Citrix ®, GoToMeeting, Google Hangouts, Microsoft ® Skype, Gruveo, Zoom, and Skype for Business, Vidyo, Konftel, Avaya, Starleaf, Kontel, Trueconf, Polycom, Lifesize etc API or VC, Software |
