| Ethernet WAN | Y |
| DSL WAN | N |
| SIM card slot | Y |
| 3G/4G USB modem compatibility | N |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 433 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 433 Mbit/s |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port triggering | Y |
| Dynamic DNS (DDNS) | Y |
| VPN server | PPTP VPN, IPSec VPN , OpenVPN |
| VPN Passthrough | Y |
| VPN support | PPTP, L2TP, IPSec |
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm |
| Mobile network generation | 4G |
| 3G | Y |
| 4G | Y |
| 2G standards | Edge, GPRS, GSM |
| 3G standards | DC-HSPA+, HSPA, HSPA+, UMTS |
| 4G standard | LTE |
| GSM bands supported | 850,900,1800,1900 MHz |
| UMTS bands supported | 900,2100 MHz |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
| SIM card type | MicroSIM |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | N |
| Memory card slot(s) | N |
| DC-in jack | Y |
| Web-based management | Y |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Quality of Service (QoS) support | Y |
| Reset button | Y |
| WPS push button | Y |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Y |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Guest access | Y |
| Access Control List (ACL) | Y |
| Stateful Packet Inspection (SPI) | Y |
| DoS attack prevention | Y |
| Filtering | Y |
| MAC address filtering | Y |
| IP address filtering | Y |
| DHCP client | Y |
| DHCP server | Y |
| Universal Plug and Play (UPnP) | Y |
| Data link protocols | IPv4, IPv6 |
| Product type | Tabletop router |
| Product colour | Black |
| On/off switch | Y |
| Cables included | LAN (RJ-45) |
| AC adapter included | Y |
| Quick start guide | Y |
| Antenna design | External |
| Antennas quantity | 2 |
| Detachable antenna(s) | Y |
| Certification | CE, FCC, RoHS |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Y |
| Mac operating systems supported | Y |
| Width | 202 mm |
| Depth | 141 mm |
| Height | 33.6 mm |
| Micro to standard SIM card adapter | Y |
| Nano to standard SIM card adapter | Y |
| Package width | 307 mm |
| Package depth | 223 mm |
| Package height | 70 mm |
| Package weight | 670 g |
| Package type | Box |
| Harmonized System (HS) code | 85176990 |
| Description |

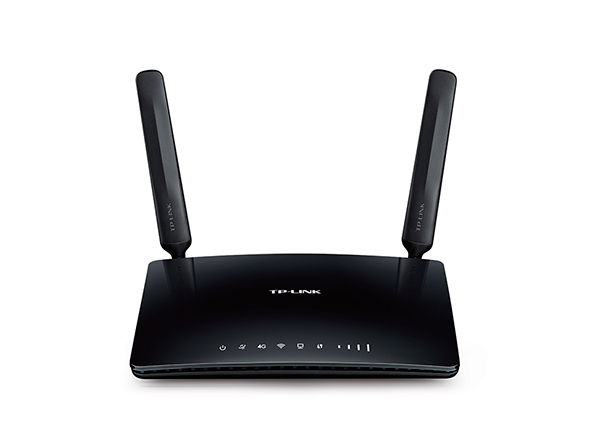

| TP-Link Archer MR200. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 433 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 2G standards: Edge, GPRS, GSM, 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: DoS, SPI Firewall, IP and MAC Address Binding. Data link protocols: IPv4, IPv6 |
