| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Receiver sensitivity | 270M: -70dBm@10% PER
130M: -73dBm@10% PER
108M: -74dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -95dBm@8% PER |
| Mobile network generation | 4G |
| 3G | Yes |
| 3G standards | EVDO, HSPA, HSPA+, UMTS |
| 4G standard | LTE |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Firewall | Yes |
| Firewall security | DoS, SPI |
| Guest access | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| DMZ support | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Product type | Tabletop router |
| Product colour | Silver, White |
| Cables included | LAN (RJ-45), USB |
| Quick installation guide | Yes |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS, Federal Communications Commission (FCC), CE |
| Antenna design | Internal |
| Transmit power | 20 dBmW |
| Power source type | USB |
| Output voltage | 5 V |
| Output current | 1 A |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 98SE, Windows NT, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Width | 74 mm |
| Depth | 67 mm |
| Height | 22 mm |
| Package width | 110 mm |
| Package depth | 109 mm |
| Package height | 81.5 mm |
| Package weight | 210 g |
| Harmonized System (HS) code | 85176990 |
| Description |

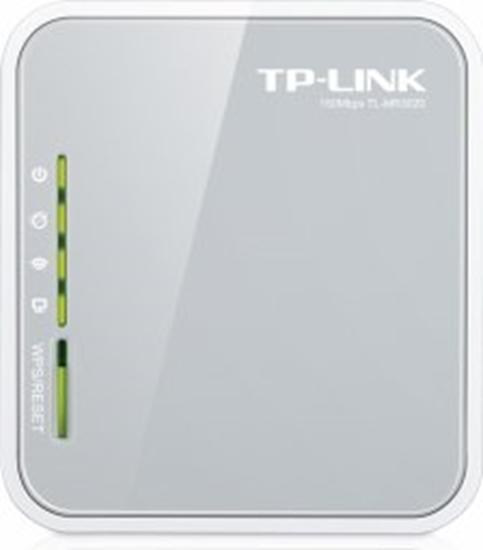

| TP-Link TL-MR3020. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Mobile network generation: 4G, 3G standards: EVDO, HSPA, HSPA+, UMTS, 4G standard: LTE. Security algorithms: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, Firewall security: DoS, SPI |
