    Manufacturer: ZYXEL

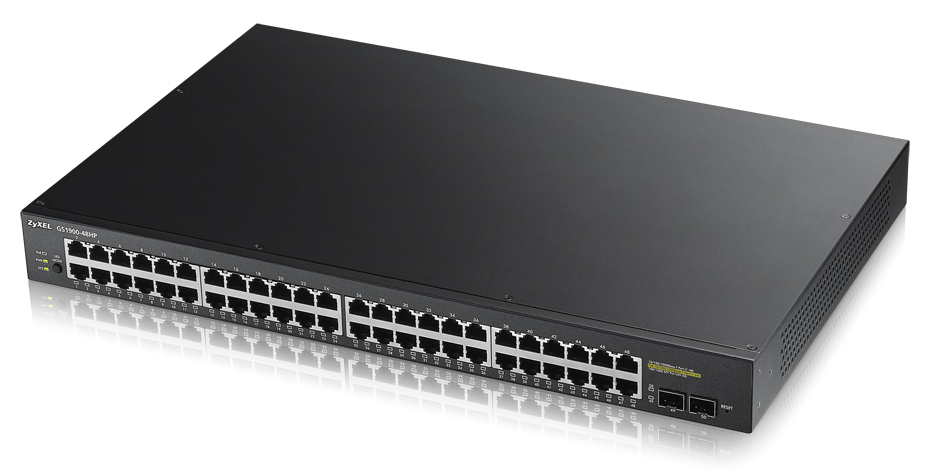

    Zyxel GS1900-48-EU0102F network switch L2 Gigabit Ethernet (10/100/1000) Black


    €272.01 incl tax

    SKU: ST06696384
    Manufacturer part number: GS1900-48-EU0102F
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    PL
    DE
    LV
    LT

    Products specifications
    WRL stadarti 802.11b
    Properties RJ-45
    RJ-45 port 48
    RJ-45 port 50
    Switch classSMART
    ApplicationMedium and large companies
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100/1000 Mbps ports50
    Number of SFP ports2
    Console portNo
    Forwarding modeStore-and-forward
    Throughput100 (Gigabity na sek.)
    Forwarding rate74 (Mpps)
    Packet buffer525 (Kilobajt)
    MAC address table size8000
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    StackabilityNo
    Supported protocols and standards
    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Ethernet
    • IEEE 802.3ab (1000BASE-T) Ethernet
    • IEEE 802.3x flow control
    • IEEE 802.3az EEE support
    • IEEE 802.1p CoS support
    • IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP)
    • IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP)
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    • Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure
    • Auto MDI/MID-X
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    • IEEE 802.3ad LACP
    QoS
    • IEEE 802.1Q VLAN tagging
    • IEEE 802.3ad LACP
    • Guest VLAN
    • Voice VLAN
    • Storm control
    • IEEE 802.1p priority queues per port
    • IEEE 802.1p Queuing method(SPQ/WRR)
    • Input priority mapping
    • Rate limiting per port(ingress/egress)
    • IEEE 802.3x flow control
    • IEEE 802.1p class of service(SPQ, WRR)
    • Port-based CoS
    • IP TOS precedence
    Security
    • IEEE 802.1x
    • Port security
    • Layer 2 MAC filtering
    • Static MAC forwarding
    • RADIUS
    • TACACS+
    • SSL
    • Management VLAN
    • CPU defense engine
    • DoS prevention
    Management, monitoring, configuration

    IPv6 Management:

    • IPv6 over Ethernet (RFC 2464)
    • Dual-stack (RFC 4213)
    • ICMPv6 (RFC 4884)
    • Neighbor discovery (RFC 4861)
    • Auto configuration
    • Static IPv6 address and prefix length
    • Static IPv6 default gateway
    • IPv6 duplicate address detection



    Manageability:

    • SNMP v1, v2, v3
    • RMON (1, 2, 3, 9)
    • ICMP echo/echo reply
    • Syslog
    • IEEE 802.1AB LLDP
    • IEEE 802.1AB LLDP-MED
    • LLDP-Power via MDI



    Device Management:

    • Web interface
    • Remote firmware upgrade by Web
    • Configuration saving and retrieving
    • Firmware upgrade via SNMP
    • DHCP client
    • Daylight saving
    • NTP
    • Port mirroring
    L2 features

    IGMP snooping (v1, v2, v3)
    Chassis typeRack
    Power supply Internal
    Power consumption31.9 (Watt)
    Certificates

    RoHS compliant

    EMC:

    • CE, FCC, RCM, Class A
    • BSMI CNS 13438

    Safety:

    • LVD LVD EN 62368-1
    • BSMI CNS 14336-1
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    440 x 200 x 44 mm
    Weight2.9 (kilogram)
    Width290
    Height510
    Depth90
    Weight3800
    Description

    Inteligentny zarządzalny przełącznik GS1900. Idealny wybór do prostej konfiguracji dla małych i średnich firm.

    Szybka gigabitowa wydajność - stworzona dla małych i średnich firm
    GS1900 to seria przełączników o pełnej nieblokującej przepustowości do 1 Gb/s na port. Idealne uaktualnienie z niezarządzanego przełącznika. To doskonały wybór dla małych i średnich firm, które chcą korzystać z aplikacji sieci biznesowych o dużej szybkości i nie blokującej się w pełni przewodowej szybkości.

    Łatwe i intuicyjne zarządzanie
    Przełącznik z serii Smart Managed GS1900 z interfejsem internetowym do łatwego zarządzania zaawansowanymi funkcjami, takimi jak VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 i zapobieganie DoS. Ponadto przyjazny dla użytkownika kreator pomaga szybko przejść przez proces instalacji, konfiguracji, a nawet zaawansowanych ustawień.
    Switch layerL2
    Basic switching RJ-45 Ethernet ports quantity48
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    SFP module slots quantity2
    Power connectorAC-in jack
    Networking standardsIEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    10G supportNo
    MAC address table8000 entries
    Switching capacity100 Gbit/s
    Throughput74 Mpps
    Rack mountingYes
    Product colourBlack
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 95%
    Heat dissipation126 BTU/h
    Width440 mm
    Depth200 mm
    Height44 mm
    Weight29 kg
    Package width509 mm
    Package depth292 mm
    Package height93 mm
    Package weight4.3 kg
    Harmonized System (HS) code85176990
    Description
    Zyxel GS1900-48-EU0102F. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
    Status7 dienas
    Description
    Simple, Fast and Smart Managed Switches for Small Business Connectivity The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more fexibility and connectivity. The 1900 Series consists of eight (8) models—the GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with powersaving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.

    Switch layer L2
    Basic switching RJ-45 Ethernet ports quantity 48
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 2
    Power connector AC-in jack
    Networking standards IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    10G support N
    MAC address table 8000 entries
    Switching capacity 100 Gbit/s
    Throughput 74 Mpps
    Rack mounting Y
    Product colour Black
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 95%
    Heat dissipation 126 BTU/h
    Width 440 mm
    Depth 200 mm
    Height 44 mm
    Weight 29 kg
    Package width 509 mm
    Package depth 292 mm
    Package height 93 mm
    Package weight 4.3 kg
    Harmonized System (HS) code 85176990
    Description
    48+2P Zyxel GS1900-48 V2 M RM

    Products specifications
    WRL stadarti 802.11b
    Properties RJ-45
    RJ-45 port 48
    RJ-45 port 50
    Switch classSMART
    ApplicationMedium and large companies
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100/1000 Mbps ports50
    Number of SFP ports2
    Console portNo
    Forwarding modeStore-and-forward
    Throughput100 (Gigabity na sek.)
    Forwarding rate74 (Mpps)
    Packet buffer525 (Kilobajt)
    MAC address table size8000
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    StackabilityNo
    Supported protocols and standards
    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Ethernet
    • IEEE 802.3ab (1000BASE-T) Ethernet
    • IEEE 802.3x flow control
    • IEEE 802.3az EEE support
    • IEEE 802.1p CoS support
    • IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP)
    • IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP)
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    • Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure
    • Auto MDI/MID-X
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    • IEEE 802.3ad LACP
    QoS
    • IEEE 802.1Q VLAN tagging
    • IEEE 802.3ad LACP
    • Guest VLAN
    • Voice VLAN
    • Storm control
    • IEEE 802.1p priority queues per port
    • IEEE 802.1p Queuing method(SPQ/WRR)
    • Input priority mapping
    • Rate limiting per port(ingress/egress)
    • IEEE 802.3x flow control
    • IEEE 802.1p class of service(SPQ, WRR)
    • Port-based CoS
    • IP TOS precedence
    Security
    • IEEE 802.1x
    • Port security
    • Layer 2 MAC filtering
    • Static MAC forwarding
    • RADIUS
    • TACACS+
    • SSL
    • Management VLAN
    • CPU defense engine
    • DoS prevention
    Management, monitoring, configuration

    IPv6 Management:

    • IPv6 over Ethernet (RFC 2464)
    • Dual-stack (RFC 4213)
    • ICMPv6 (RFC 4884)
    • Neighbor discovery (RFC 4861)
    • Auto configuration
    • Static IPv6 address and prefix length
    • Static IPv6 default gateway
    • IPv6 duplicate address detection



    Manageability:

    • SNMP v1, v2, v3
    • RMON (1, 2, 3, 9)
    • ICMP echo/echo reply
    • Syslog
    • IEEE 802.1AB LLDP
    • IEEE 802.1AB LLDP-MED
    • LLDP-Power via MDI



    Device Management:

    • Web interface
    • Remote firmware upgrade by Web
    • Configuration saving and retrieving
    • Firmware upgrade via SNMP
    • DHCP client
    • Daylight saving
    • NTP
    • Port mirroring
    L2 features

    IGMP snooping (v1, v2, v3)
    Chassis typeRack
    Power supply Internal
    Power consumption31.9 (Watt)
    Certificates

    RoHS compliant

    EMC:

    • CE, FCC, RCM, Class A
    • BSMI CNS 13438

    Safety:

    • LVD LVD EN 62368-1
    • BSMI CNS 14336-1
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    440 x 200 x 44 mm
    Weight2.9 (kilogram)
    Width290
    Height510
    Depth90
    Weight3800
    Description

    Inteligentny zarządzalny przełącznik GS1900. Idealny wybór do prostej konfiguracji dla małych i średnich firm.

    Szybka gigabitowa wydajność - stworzona dla małych i średnich firm
    GS1900 to seria przełączników o pełnej nieblokującej przepustowości do 1 Gb/s na port. Idealne uaktualnienie z niezarządzanego przełącznika. To doskonały wybór dla małych i średnich firm, które chcą korzystać z aplikacji sieci biznesowych o dużej szybkości i nie blokującej się w pełni przewodowej szybkości.

    Łatwe i intuicyjne zarządzanie
    Przełącznik z serii Smart Managed GS1900 z interfejsem internetowym do łatwego zarządzania zaawansowanymi funkcjami, takimi jak VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 i zapobieganie DoS. Ponadto przyjazny dla użytkownika kreator pomaga szybko przejść przez proces instalacji, konfiguracji, a nawet zaawansowanych ustawień.
    Switch layerL2
    Basic switching RJ-45 Ethernet ports quantity48
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    SFP module slots quantity2
    Power connectorAC-in jack
    Networking standardsIEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    10G supportNo
    MAC address table8000 entries
    Switching capacity100 Gbit/s
    Throughput74 Mpps
    Rack mountingYes
    Product colourBlack
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 95%
    Heat dissipation126 BTU/h
    Width440 mm
    Depth200 mm
    Height44 mm
    Weight29 kg
    Package width509 mm
    Package depth292 mm
    Package height93 mm
    Package weight4.3 kg
    Harmonized System (HS) code85176990
    Description
    Zyxel GS1900-48-EU0102F. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
    Status7 dienas
    Description
    Simple, Fast and Smart Managed Switches for Small Business Connectivity The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more fexibility and connectivity. The 1900 Series consists of eight (8) models—the GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with powersaving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.

    Switch layer L2
    Basic switching RJ-45 Ethernet ports quantity 48
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 2
    Power connector AC-in jack
    Networking standards IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    10G support N
    MAC address table 8000 entries
    Switching capacity 100 Gbit/s
    Throughput 74 Mpps
    Rack mounting Y
    Product colour Black
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 95%
    Heat dissipation 126 BTU/h
    Width 440 mm
    Depth 200 mm
    Height 44 mm
    Weight 29 kg
    Package width 509 mm
    Package depth 292 mm
    Package height 93 mm
    Package weight 4.3 kg
    Harmonized System (HS) code 85176990
    Description
    48+2P Zyxel GS1900-48 V2 M RM
