Manufacturer: ZYXEL

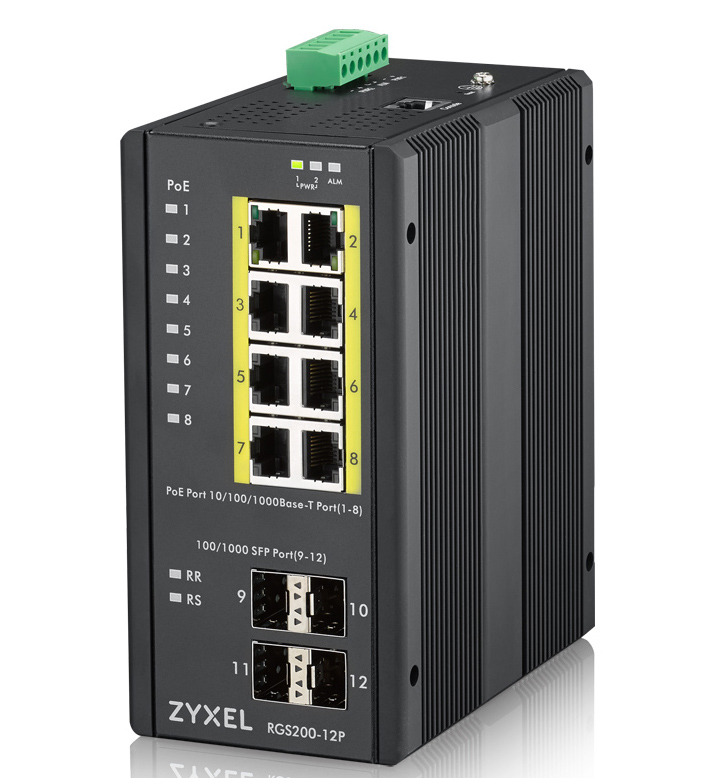

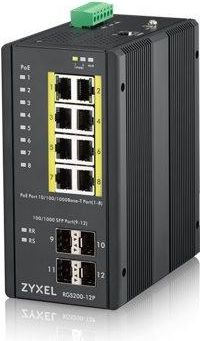

Zyxel RGS200-12P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

€1288.09 incl tax

SKU: ST02220293

Manufacturer part number: RGS200-12P-ZZ0101F

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
DE	5 - 15 days	6	€1288.09 incl tax
PL	8 - 15 days	4	€1297.75 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5

RJ-45 port	8
Properties	RJ-45
WRL stadarti	802.11b

Switch class	Managed
Application	Home and small office
Switch layer	L2
Network architecture	FastEthernet
Number of 10/100/1000 Mbps ports	8
Number of PoE ports (PoE & PoE+)	8
Number of SFP ports	4
Forwarding mode	Store-and-forward
Throughput	24 (Megabajty na sek.)
Forwarding rate	17.86 (Megabajty na sek.)
Memory buffer	512 (Kilobajt)
MAC address table size	8000
Support for Jumbo frames	Yes
Jumbo frame size	9 (Kilobajt)
VLAN	1024
Supported protocols and standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
QoS	802.1p priority queues per port 802.1p queuing method (scheduler) Input priority mapping Queue egress shaper Rate limiting, port based (accuracy of ingress/egress is 1 kbps on TCP) 802.3x flow control
Security	IP and MAC-based access control (128) ACL (support IPv4/IPv6)(256) 802.1X (port-base) Guest VLAN Port security MAC address limit Layer 2 MAC filtering Static MAC forwarding Multiple RADIUS servers RADIUS/TACACS+ authentication RADIUS/TACACS+ authorization SSL (certificate key length 2048 bits) SSL (support SHA-2) Management VLAN CPU defense engine IP source guard ARP inspection
Management, monitoring, configuration	Web interface HTTP/HTTPS IPv6 management (Web) CLI (support console) Telnet (5 sessions) SSHv2 (5 sessions) Firmware upgrade by web Firmware upgrade by TFTP Configuration download/upload by Web Configuration download/upload by cli via TFTP DHCP client DHCP relay DHCP snooping DHCP option 82 SNTP Daylight saving setting Schedule PoE PoE MCU firmware upgradable Port mirroring Per VLAN mirroring Reset button (HW reset) Dual image EEE support Cable diagnostics
Chassis type	Desktop
Fan	Yes
Mean time between failures (MTBF)	568430 (Hour)
Power supply	Dual power input 12V~58VDC
Dimensions	77 x 127.3 x 154 mm
Weight	1.45 (kilogram)
Other features	Specyfikacje środowiskowe Temperatura -40 ° C do 75 ° C / -40 ° F do 167 ° F Wilgotność od 5% do 95% (bez kondensacji)
Designation	CE+WEEE
Width	195
Height	240
Depth	140
Weight	1853
Description
Description	12-port GbE Managed PoE Switch RGS200-12P Brak wentylatorów i metalowa konstrukcja IP30 zastosowana w przemysłowym przełączniku Zyxel RGS200-12P umożliwia doskonałą kontrolę termiczną i bez problemu radzi sobie w środowisku wysokiego zapylenia oraz kurzu. Zaprojektowany z myślą o pracy w szerokim zakresie temperatur od -40°C do 75°C, model RGS200-12P można instalować w wielu różnych wymagających środowiskach i scenariuszach instalacji. Szybkie połączenia zapasowe oferujące stabilność komunikacji Zyxel RGS200-12P dzięki redundantnej technologii ring i błyskawicznej funkcji automatycznego wykrywania tworzy sieć odporną na uszkodzenia. W przypadku awarii wywołanej błędem sieciowym, normalna praca zostanie przywrócona w czasie krótszym niż 20ms. Dodatkowo RGS200-12P umożliwia łatwą konfigurację poprzez intuicyjny interfejs graficzny dostępny przez przeglądarki internetowe. Wysoka dostępność Wyposażony w dwa wejścia zasilania DC model RGS100-12P oferuje wysoką dostępność pracy oraz niezawodność w najbardziej wymagających warunkach. Podczas standardowej pracy w warunkach zewnętrznych, funkcja ochrony polaryzacji zasilania gwarantuje ciągłość i niezawodność pracy urządzenia Łatwa rozbudowa sieci wraz z elastyczną instalacją RGS200-12P posiada osiem gigabitowych portów PoE+ umożliwiających łatwe zasilanie urządzeń oraz cztery sloty SFP do dalekich połączeń światłowodowych na dystansie do 40 kilometrów, co zapewnia wysoką elastyczność instalacji. Urządzenie przystosowane zostało również do różnego rodzaju wdrożeń, dzięki temu RGS200-12P można zainstalować na szynie DIN lub na ścianie, tak aby efektywnie wykorzystać dostępną przestrzeń. https://www.zyxel.com/products_services/rgs200_12p.shtml?t=p

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC 2233 IF MIB, RFC1213 MIB II, RFC 1757 RMON 1/2/3/9, RFC1215, RFC1493, RFC 2674, LLDP-EXT-MED MIB
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Fiber optic connector	SFP
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Number of VLANs	1024
Fiber ethernet cabling technology	1000BASE-X
Transmission distance (max)	40 km
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Throughput	17.86 Mpps
Store-and-forward	Yes
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	0.5 MB
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH-2
MAC address filtering	Yes
SSH/SSL support	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Multicast support	Yes
Rack mounting	Yes
Product colour	Black
Housing material	Metal
International Protection (IP) code	IP30
Wall mountable	Yes
DIN rail mounting	Yes
Firmware upgradeable	Yes
Buffer size	512 KB
Plug and Play	Yes
Mean time between failures (MTBF)	568430 h
DC input voltage	12 - 58 V
Input voltage	12 - 58 V
Power consumption (max)	255 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	86955 BTU/h
Width	77 mm
Depth	127.3 mm
Height	154 mm
Weight	1.45 kg
Wall mounting kit	Yes
Rack mount kit	Yes
Package width	133 mm
Package depth	192 mm
Package height	238 mm
Package weight	1.9 kg
Harmonized System (HS) code	85176990
Description
Description	Zyxel RGS200-12P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... DC input voltage: 12 - 58 V. Power over Ethernet (PoE). Wall mountable, Rack mounting

Status

Jautāt

Description

12-port GbE Managed PoE Switch

Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS Series of PoE switches with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The special mechanism enables RGS200-12P to operate in outdoor, factory or other harsh environments for surveillance. In addition, it is also easy to manage RGS200-12P through a user-friendly Webbased GUI.

Benefits

Rugged and reliable design for harsh environments
Equipped with fanless and IP30 standard metal mechanism, the Zyxel RGS200-12P is able to deliver great thermal control and tolerate the dustiest deployments with ease, whether installed on a DIN rail or wall mounted for the most efficient use of cabinet space. Designed to handle temperatures ranging from -40°C to 75°C, the RGS200-12P can be placed in a variety of challenging environments and be adapted to broad range of field applications. When switching is applied normally in outdoor settings, ESD (electrostatic discharge), DC and Ethernet surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.

Quick failover for stable connectivity
When deployed in harsher conditions, such as factory or outdoor settings, the Zyxel RGS200-12P creates fault-tolerant networks with redundant ring technology and rapid self-recovery capability to prevent interruptions. In the event of downtime caused by a network error, the rapid failover will restore normal operation in less than 20 ms. The switch’s dual DC power inputs and reverse power protection feature ensure continuous uptime and reliable operation.

Trouble-free installation and easy extendibility
This rugged L2 Managed PoE switch comes with eight (8) 10/100/1000 Base-T copper PoE ports and four (4) 100/1000-Base-X SFP fiber interfaces. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30 W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Jā
Web-based management	Jā
ARP inspection	Jā
System event log	Jā
MIB support	RFC 2233 IF MIB, RFC1213 MIB II, RFC 1757 RMON 1/2/3/9, RFC1215, RFC1493, RFC 2674, LLDP-EXT-MED MIB
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Fiber optic connector	SFP
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Nē
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Jā
Full duplex	Jā
Flow control support	Jā
Link aggregation	Jā
Broadcast storm control	Jā
Rate limiting	Jā
Auto-negotiation	Jā
VLAN support	Jā
Virtual LAN features	Tagged VLAN
Number of VLANs	1024
Fiber ethernet cabling technology	1000BASE-X
Transmission distance (max)	40 km
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Throughput	17.86 Mpps
Store-and-forward	Jā
Number of queues	8
Jumbo frames support	Jā
Jumbo frames	9000
Packet buffer memory	0.5 MB
Access Control List (ACL)	Jā
IGMP snooping	Jā
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH-2
MAC address filtering	Jā
SSH/SSL support	Jā
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Multicast support	Jā
Rack mounting	Jā
Product colour	Black
Housing material	Metal
International Protection (IP) code	IP30
Wall mountable	Jā
DIN rail mounting	Jā
Firmware upgradeable	Jā
Buffer size	512 KB
Plug and Play	Jā
Mean time between failures (MTBF)	568430 h
DC input voltage	12 - 58 V
Input voltage	12 - 58 V
Power consumption (max)	255 W
Power over Ethernet (PoE)	Jā
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	86955 BTU/h
Width	77 mm
Depth	127.3 mm
Height	154 mm
Weight	1.45 kg
Wall mounting kit	Jā
Rack mount kit	Jā
Package width	133 mm
Package depth	192 mm
Package height	238 mm
Package weight	1.9 kg
Harmonized System (HS) code	85176990

Description
	8+4P Zyxel RGS200-12P POE industrial
