    Manufacturer: ZYXEL

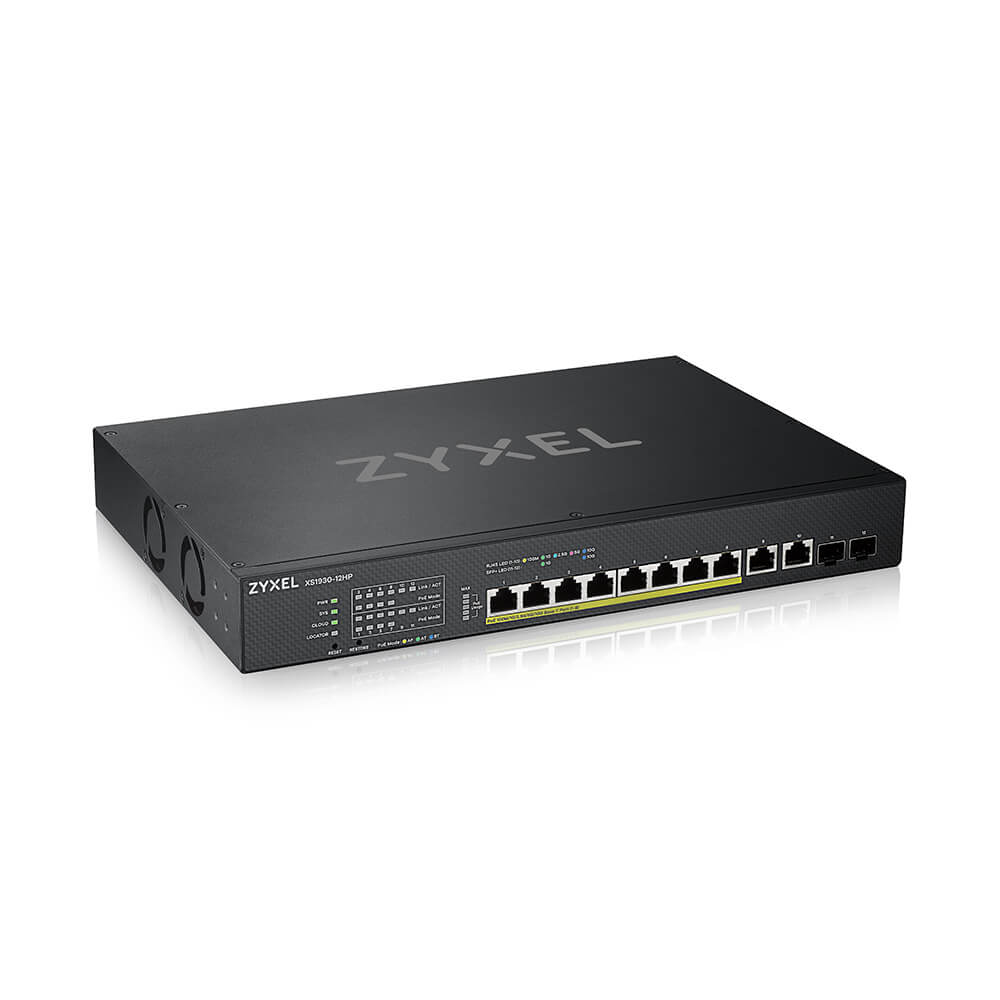

    Zyxel XS1930-12HP 8-port Smart Managed PoE++


    €1129.17 incl tax

    SKU: ST04613688
    Manufacturer part number: XS1930-12HP-ZZ0101F
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    DE
    LT

    Products specifications
    Properties RJ-45
    WRL stadarti 802.11b
    RJ-45 port 10
    Switch classManaged
    ApplicationHome and small office
    Network architectureGigabitEthernet
    Number of 10Gb ports10
    Number of PoE ports (PoE & PoE+)8
    Number of SFP+ ports2
    Throughput240 (Gigabajty na sek.)
    Forwarding rate178.5 (Megabajty na sek.)
    Packet buffer2 (MegaBajt)
    Memory buffer16 (Kilobajt)
    MAC address table size32
    Supported protocols and standards
    • IEEE 802.3z 1000BASE-X*
    • IEEE 802.3ab 1000BASE-T Ethernet*
    • IEEE 802.3an 10G BASE-T Ethernet*
    • IEEE 802.3ae 10 Gbit/s Ethernet over
    • fiber*
    • IEEE 802.3af PoE*
    • IEEE 802.3at PoE plus*
    • IEEE 802.3bt (60 W) PoE over 4 pair*
    • IEEE 802.3x flow control
    • IEEE 802.3ad LACP aggregation*
    • IEEE 802.1D Spanning Tree Protocol
    • (STP)*
    • IEEE 802.1w Rapid Spanning Tree
    • Protocol (RSTP)*
    • IEEE 802.1s Multiple Spanning Tree
    • Protocol (MSTP)
    • IEEE 802.1p Class of Service (CoS)
    • prioritization*
    • IEEE 802.1X port authentication*
    QoS
    • No. of hardware queues per port: 8*
    • 802.1p queuing methods: SPQ, WRR,
    • WFQ*
    • Storm control: broadcast, unknown
    • L2MC, unknown unicast (DLF)*
    • Rate limiting per port
    • Policy-based rate limiting
    • Policy-based prioritization
    Security
    • 802.1X*
    • Port security*
    • MAC authentication*
    • Static MAC forwarding
    • SSL
    • Static ARP
    • Policy-based security filtering
    Management, monitoring, configuration
    • Standalone management by Web
    • interface
    • Cloud management by Nebula
    • Control Center*
    • Management through Telnet
    • Management through Web, SNMP
    • Firmware upgrade by FTP/Web
    • Configuration saving and retrieving
    • Multiple login supported
    • Configure clone
    • DHCP relay per VLAN
    • DHCP client IPv4*
    • DHCP client IPv6
    • DHCP option 82
    • Daylight saving*
    • NTP Server (IPv4/IPv6)
    • Support DNS format
    • Port mirroring*
    • Scheduled PoE*
    • PoE default consumption mode*
    • PoE power management extended
    • configuration*
    • Web login warning page
    • Restore to last custom default
    Chassis typeRack
    Power supply External
    Power consumption49.3 (Watt)
    Mean time between failures (MTBF)582.873 (Hour)
    Accessories included
    • Kabel zasilający
    • Zestaw do montażu w stojaku
    Power supply
    • 100 - 240 V AC, 50/60 Hz
    Dimensions
    • (Szer. głęb.wys.) (Mm / cale): 330 x 230 x 44 / 12,99 x 9,06 x 1,73
    Weight2.8 (kilogram)
    Other features

    Specyfikacje środowiskowe

    • Temperatura -20 ° C do 50 ° C / -4 ° F do 122 ° F
    • Wilgotność od 5% do 95% (bez kondensacji)
    DesignationCE+WEEE
    Width485
    Height335
    Depth80
    Weight4500
    Description

    XS1930-12HP PoE 375W 2x10GbE + 2xSFP+

    Przełamanie wydajności 1Gbps

    • Nowy przełącznik z serii XS1930 obsługuje standard IEEE 802.3bz. Dzięki czemu umożliwia zastosowanie w istniejącej infrastrukturze okablowania technologii multigigabitowej. Oferuje ona do 10 razy większą przepustowość, bez konieczności przeprowadzania kosztownej i uciążliwej modernizacji przewodów sieciowych. Ponadto przełącznik został wyposażony w pierwszą na rynku 5-kolorową diodę LED, która natychmiast wyświetla prędkość portu operacyjnego.

    Nowa era łączności

    • Każdy z portów multigigabitowych w przełączniku z serii XS1930 obsługuje prędkości 100M/1G/2.5G/5G/10G, które są dostosowane do wszystkich urządzeń sieciowych. W przypadku rozwiązań obsługujących prędkość 2.5G/5G, takich jak punkt dostępowy WiFi 6 (11ax), serwery i stacje robocze mogą działać z maksymalną prędkością bez wymuszania obniżania szybkości połączeń do 1G.

    Prawdziwa sieć szkieletowa WiFi 6

    • WiFi 6 wymaga szybszej sieci LAN (>1 Gb/s) i zasilania (PoE++). Model PoE XS1930-12HP obsługuje najnowszy standard PoE IEEE 802.3bt (PoE ++), zapewniając na porcie moc do 60 W dla punktu dostępowego WiFi6, a także kompatybilność wsteczną z istniejącymi urządzeniami PoE/PoE +. Dzięki dużemu budżetowi mocy do 375 W, XS1930-12HP zapewnia wystarczającą przestrzeń dla połączeń z maksymalnie 8 punktami dostępowymi WiFi 6 (11ax).
    Switch typeManaged
    Switch layerL3
    Quality of Service (QoS) supportYes
    Web-based managementYes
    Cloud-managedYes
    Configuring Location Settings (CLI)Yes
    MIB supportY
    Basic switching RJ-45 Ethernet ports quantity10
    Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
    SFP+ module slots quantity2
    Networking standardsIEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
    10G supportYes
    Port mirroringYes
    Ethernet LAN data rates100,1000,2500,5000,10000 Mbit/s
    VLAN supportYes
    MAC address table16000 entries
    Switching capacity240 Gbit/s
    Multicast supportYes
    Rack mountingYes
    Product colourBlack
    LED indicatorsYes
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)493 W
    Power over Ethernet (PoE)Yes
    Power over Ethernet plus (PoE+) ports quantity8
    Total Power over Ethernet (PoE) budget375 W
    Operating temperature (T-T)-20 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)5 - 95%
    Storage relative humidity (H-H)5 - 95%
    Heat dissipation151.06 BTU/h
    Width330 mm
    Depth230 mm
    Height44 mm
    Weight2.8 kg
    Harmonized System (HS) code85176990
    Description
    Zyxel XS1930-12HP-ZZ0101F. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power over Ethernet (PoE). Rack mounting
    StatusJautāt
    Description
    Light Up the Speed Zyxel’s XS1930 Series Multi-Gigabit Smart Managed Switch Breakthrough 1 Gbps The new XS1930 Series switch supports IEEE 802.3bz standard for delivering Multi-Gigabit technology on existing wiring infrastructure which offering up to 10 times more bandwidth capacity without expensive and disruptive cable upgrades. In addition, it is designed with industry-first 5-color LED to instantly display the operating port speed. New era of connectivity Each of the Multi-Gigabit ports on XS1930 Series Switch support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. For 2.5G/5G capable devices such as WiFi 6 (11ax) AP, servers and workstations now are able to operate at the maximum speed without forcing the connection downgrades to 1G. True backbone of WiFi 6 WiFi 6 needs higher speed LAN (>1Gbps) and power (PoE++). The PoE model XS1930-12HP supports the latest PoE standard IEEE 802.3bt (PoE++) providing port power up to 60W for WiFi6 AP, as well as backwarding compatibility with existing PoE/PoE+ devices. With a large power budget of up to 375W, XS1930-12HP gives enough headroom for connections up to 8 WiFi 6 (11ax) APs. Experience The Near Silent Operation The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment. Manage it your way! The XS1930 Series introduces Zyxel NebulaFlex, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks. Smart managed switch inside and out The XS1930 Series aims to widen user experience with its unique One-touch ‘Restore’ button as well as fully-loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 Layer 3 static route, can all be configured via its local user-friendly web interface efficiently. Designed for the long haul Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS1930 Series for your networks.

    Switch type Managed
    Switch layer L3
    Quality of Service (QoS) support Y
    Web-based management Y
    Cloud-managed Y
    Configuring Location Settings (CLI) Y
    MIB support Y
    Basic switching RJ-45 Ethernet ports quantity 10
    Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
    SFP+ module slots quantity 2
    Networking standards IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
    10G support Y
    Port mirroring Y
    Ethernet LAN data rates 100,1000,2500,5000,10000 Mbit/s
    VLAN support Y
    MAC address table 16000 entries
    Switching capacity 240 Gbit/s
    Multicast support Y
    Rack mounting Y
    Product colour Black
    LED indicators Y
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 493 W
    Power over Ethernet (PoE) Y
    Power over Ethernet plus (PoE+) ports quantity 8
    Total Power over Ethernet (PoE) budget 375 W
    Operating temperature (T-T) -20 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Heat dissipation 151.06 BTU/h
    Width 330 mm
    Depth 230 mm
    Height 44 mm
    Weight 2.8 kg
    Harmonized System (HS) code 85176990
    Description
    10+2P Zyxel XS1930-12HP POE M RM

    Products specifications
    Properties RJ-45
    WRL stadarti 802.11b
    RJ-45 port 10
    Switch classManaged
    ApplicationHome and small office
    Network architectureGigabitEthernet
    Number of 10Gb ports10
    Number of PoE ports (PoE & PoE+)8
    Number of SFP+ ports2
    Throughput240 (Gigabajty na sek.)
    Forwarding rate178.5 (Megabajty na sek.)
    Packet buffer2 (MegaBajt)
    Memory buffer16 (Kilobajt)
    MAC address table size32
    Supported protocols and standards
    • IEEE 802.3z 1000BASE-X*
    • IEEE 802.3ab 1000BASE-T Ethernet*
    • IEEE 802.3an 10G BASE-T Ethernet*
    • IEEE 802.3ae 10 Gbit/s Ethernet over
    • fiber*
    • IEEE 802.3af PoE*
    • IEEE 802.3at PoE plus*
    • IEEE 802.3bt (60 W) PoE over 4 pair*
    • IEEE 802.3x flow control
    • IEEE 802.3ad LACP aggregation*
    • IEEE 802.1D Spanning Tree Protocol
    • (STP)*
    • IEEE 802.1w Rapid Spanning Tree
    • Protocol (RSTP)*
    • IEEE 802.1s Multiple Spanning Tree
    • Protocol (MSTP)
    • IEEE 802.1p Class of Service (CoS)
    • prioritization*
    • IEEE 802.1X port authentication*
    QoS
    • No. of hardware queues per port: 8*
    • 802.1p queuing methods: SPQ, WRR,
    • WFQ*
    • Storm control: broadcast, unknown
    • L2MC, unknown unicast (DLF)*
    • Rate limiting per port
    • Policy-based rate limiting
    • Policy-based prioritization
    Security
    • 802.1X*
    • Port security*
    • MAC authentication*
    • Static MAC forwarding
    • SSL
    • Static ARP
    • Policy-based security filtering
    Management, monitoring, configuration
    • Standalone management by Web
    • interface
    • Cloud management by Nebula
    • Control Center*
    • Management through Telnet
    • Management through Web, SNMP
    • Firmware upgrade by FTP/Web
    • Configuration saving and retrieving
    • Multiple login supported
    • Configure clone
    • DHCP relay per VLAN
    • DHCP client IPv4*
    • DHCP client IPv6
    • DHCP option 82
    • Daylight saving*
    • NTP Server (IPv4/IPv6)
    • Support DNS format
    • Port mirroring*
    • Scheduled PoE*
    • PoE default consumption mode*
    • PoE power management extended
    • configuration*
    • Web login warning page
    • Restore to last custom default
    Chassis typeRack
    Power supply External
    Power consumption49.3 (Watt)
    Mean time between failures (MTBF)582.873 (Hour)
    Accessories included
    • Kabel zasilający
    • Zestaw do montażu w stojaku
    Power supply
    • 100 - 240 V AC, 50/60 Hz
    Dimensions
    • (Szer. głęb.wys.) (Mm / cale): 330 x 230 x 44 / 12,99 x 9,06 x 1,73
    Weight2.8 (kilogram)
    Other features

    Specyfikacje środowiskowe

    • Temperatura -20 ° C do 50 ° C / -4 ° F do 122 ° F
    • Wilgotność od 5% do 95% (bez kondensacji)
    DesignationCE+WEEE
    Width485
    Height335
    Depth80
    Weight4500
    Description

    XS1930-12HP PoE 375W 2x10GbE + 2xSFP+

    Przełamanie wydajności 1Gbps

    • Nowy przełącznik z serii XS1930 obsługuje standard IEEE 802.3bz. Dzięki czemu umożliwia zastosowanie w istniejącej infrastrukturze okablowania technologii multigigabitowej. Oferuje ona do 10 razy większą przepustowość, bez konieczności przeprowadzania kosztownej i uciążliwej modernizacji przewodów sieciowych. Ponadto przełącznik został wyposażony w pierwszą na rynku 5-kolorową diodę LED, która natychmiast wyświetla prędkość portu operacyjnego.

    Nowa era łączności

    • Każdy z portów multigigabitowych w przełączniku z serii XS1930 obsługuje prędkości 100M/1G/2.5G/5G/10G, które są dostosowane do wszystkich urządzeń sieciowych. W przypadku rozwiązań obsługujących prędkość 2.5G/5G, takich jak punkt dostępowy WiFi 6 (11ax), serwery i stacje robocze mogą działać z maksymalną prędkością bez wymuszania obniżania szybkości połączeń do 1G.

    Prawdziwa sieć szkieletowa WiFi 6

    • WiFi 6 wymaga szybszej sieci LAN (>1 Gb/s) i zasilania (PoE++). Model PoE XS1930-12HP obsługuje najnowszy standard PoE IEEE 802.3bt (PoE ++), zapewniając na porcie moc do 60 W dla punktu dostępowego WiFi6, a także kompatybilność wsteczną z istniejącymi urządzeniami PoE/PoE +. Dzięki dużemu budżetowi mocy do 375 W, XS1930-12HP zapewnia wystarczającą przestrzeń dla połączeń z maksymalnie 8 punktami dostępowymi WiFi 6 (11ax).
    Switch typeManaged
    Switch layerL3
    Quality of Service (QoS) supportYes
    Web-based managementYes
    Cloud-managedYes
    Configuring Location Settings (CLI)Yes
    MIB supportY
    Basic switching RJ-45 Ethernet ports quantity10
    Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
    SFP+ module slots quantity2
    Networking standardsIEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
    10G supportYes
    Port mirroringYes
    Ethernet LAN data rates100,1000,2500,5000,10000 Mbit/s
    VLAN supportYes
    MAC address table16000 entries
    Switching capacity240 Gbit/s
    Multicast supportYes
    Rack mountingYes
    Product colourBlack
    LED indicatorsYes
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)493 W
    Power over Ethernet (PoE)Yes
    Power over Ethernet plus (PoE+) ports quantity8
    Total Power over Ethernet (PoE) budget375 W
    Operating temperature (T-T)-20 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)5 - 95%
    Storage relative humidity (H-H)5 - 95%
    Heat dissipation151.06 BTU/h
    Width330 mm
    Depth230 mm
    Height44 mm
    Weight2.8 kg
    Harmonized System (HS) code85176990
    Description
    Zyxel XS1930-12HP-ZZ0101F. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power over Ethernet (PoE). Rack mounting
    StatusJautāt
    Description
    Light Up the Speed Zyxel’s XS1930 Series Multi-Gigabit Smart Managed Switch Breakthrough 1 Gbps The new XS1930 Series switch supports IEEE 802.3bz standard for delivering Multi-Gigabit technology on existing wiring infrastructure which offering up to 10 times more bandwidth capacity without expensive and disruptive cable upgrades. In addition, it is designed with industry-first 5-color LED to instantly display the operating port speed. New era of connectivity Each of the Multi-Gigabit ports on XS1930 Series Switch support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. For 2.5G/5G capable devices such as WiFi 6 (11ax) AP, servers and workstations now are able to operate at the maximum speed without forcing the connection downgrades to 1G. True backbone of WiFi 6 WiFi 6 needs higher speed LAN (>1Gbps) and power (PoE++). The PoE model XS1930-12HP supports the latest PoE standard IEEE 802.3bt (PoE++) providing port power up to 60W for WiFi6 AP, as well as backwarding compatibility with existing PoE/PoE+ devices. With a large power budget of up to 375W, XS1930-12HP gives enough headroom for connections up to 8 WiFi 6 (11ax) APs. Experience The Near Silent Operation The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment. Manage it your way! The XS1930 Series introduces Zyxel NebulaFlex, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks. Smart managed switch inside and out The XS1930 Series aims to widen user experience with its unique One-touch ‘Restore’ button as well as fully-loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 Layer 3 static route, can all be configured via its local user-friendly web interface efficiently. Designed for the long haul Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS1930 Series for your networks.

    Switch type Managed
    Switch layer L3
    Quality of Service (QoS) support Y
    Web-based management Y
    Cloud-managed Y
    Configuring Location Settings (CLI) Y
    MIB support Y
    Basic switching RJ-45 Ethernet ports quantity 10
    Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
    SFP+ module slots quantity 2
    Networking standards IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
    10G support Y
    Port mirroring Y
    Ethernet LAN data rates 100,1000,2500,5000,10000 Mbit/s
    VLAN support Y
    MAC address table 16000 entries
    Switching capacity 240 Gbit/s
    Multicast support Y
    Rack mounting Y
    Product colour Black
    LED indicators Y
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 493 W
    Power over Ethernet (PoE) Y
    Power over Ethernet plus (PoE+) ports quantity 8
    Total Power over Ethernet (PoE) budget 375 W
    Operating temperature (T-T) -20 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Heat dissipation 151.06 BTU/h
    Width 330 mm
    Depth 230 mm
    Height 44 mm
    Weight 2.8 kg
    Harmonized System (HS) code 85176990
    Description
    10+2P Zyxel XS1930-12HP POE M RM
    Recently viewed products
    Information
    Customer service
    My account
    Contact Us
    • Ogre, Mālkalnes prospekts 5-18, LV-5003
    • (+371) 22111444, (+371) 22500002
    Our Partners
    Copyright © 2024 Tera.lv. All rights reserved.
