    Ražotājs: LEVELONE

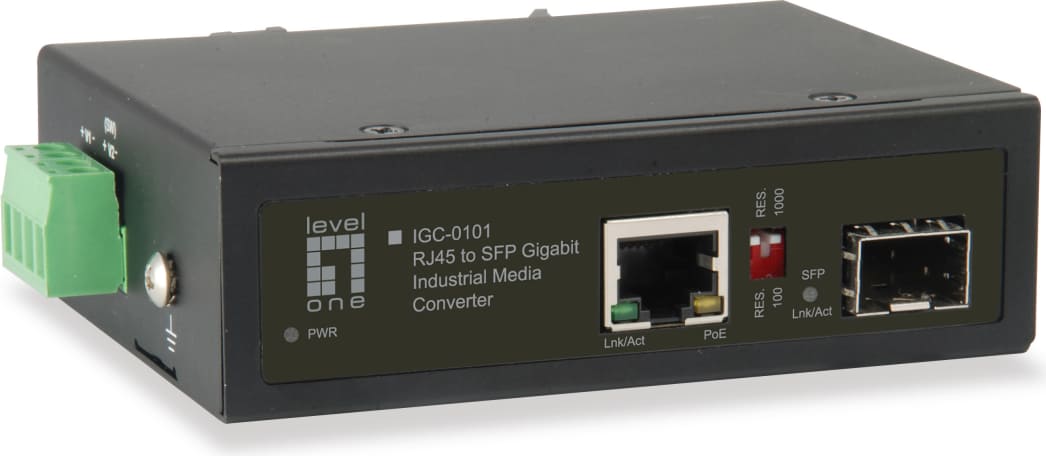

    LevelOne IGC-0101 Industrial Gigabit RJ45 SFP Media Converter


    €143,09 ar pvn

    Artikuls: ST07103939
    Preces kods: IGC-0101
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Īpašības RJ-45
    WRL stadarti 802.11b
    Status7 dienas
    Description
    This IGC-0101 Industrial POE media converter is equipped with Hardened Marvell IC to provide a reliable power source to power up your remote POE device. It is designed for Security, Transportation and Telco application to extend your network distances. With its multi-purpose design, it can also be used for Din-Rail or wall-mounted. It is an ideal unit for IP surveillance, traffic monitoring and Security application in critical environment. It can tolerate -40°C to 75°C in harsh environment to perform a reliable network.

    Maximum data transfer rate 1000 Mbit/s
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN data rates 10,100,1000 Mbit/s
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Jumbo frames support Y
    Jumbo frames 9000
    Flow control support Y
    Fiber optic connector SFP
    Connectivity technology Wired
    Ethernet LAN (RJ-45) ports 1
    Fiber ports quantity 1
    Power over Ethernet (PoE) ports quantity 1
    Mean time between failures (MTBF) 500000 h
    Internal N
    LED indicators Activity, Link, Power
    DIN rail mounting Y
    Country of origin Taiwan
    Safety IEC EN60950-1
    Certification CE, FCC, VCCI, FCC Part 15 Subpart B Class A, CE EN 55022 Class A
    Input voltage 48 - 56 V
    Power consumption (typical) 2 W
    Power over Ethernet (PoE) Y
    Total Power over Ethernet (PoE) budget 30 W
    Width 32 mm
    Depth 81.5 mm
    Height 103.5 mm
    Weight 135 g
    Operating temperature (T-T) -40 - 75 °C
    Operating relative humidity (H-H) 5 - 95%
    Package width 165 mm
    Package depth 65 mm
    Package height 215 mm
    Package weight 350 g
    Manual Y
    Harmonized System (HS) code 85176990
    Master (outer) case width 350 mm
    Master (outer) case length 240 mm
    Master (outer) case height 560 mm
    Master (outer) case gross weight 6.6 kg
    Products per master (outer) case 16 pc(s)
