    Ražotājs: LEVELONE

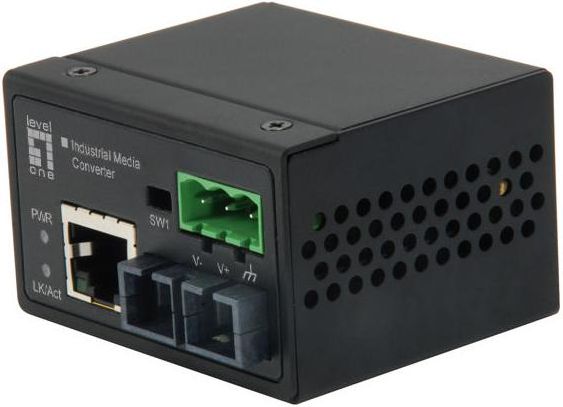

    LevelOne IEC-4002 Industrial FE RJ45 ST Media Converter


    €241,07 ar pvn

    Artikuls: ST07107175
    Preces kods: IEC-4002
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Īpašības RJ-45
    Status7 dienas
    Description
    LevelOne IEC-4002 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes. - 10/100BaseT to 100Base-FX - Rugged aluminium case design in a mini size form factor - 18V-36VAC & 12V-60VDC with polarity protection - Link Fault Pass through (LFP) function - Supports switch and pure converter mode - Surge & ESD protection - Maximum noise & interference immunity - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail or panel mount installation

    Maximum data transfer rate 100 Mbit/s
    Converter input interface 10Base-T, 100Base-TX
    Converter output interface 100Base-FX
    Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    Duplex system Full, Half
    Fiber optic connector ST
    Connectivity technology Wired
    Ethernet LAN (RJ-45) ports 1
    Fiber ports quantity 1
    Maximum transfer distance 2000 m
    Fiber mode structure Multi-mode
    Internal N
    LED indicators Activity, Link, Power
    Product colour Black
    Housing material Aluminium
    Country of origin Taiwan
    Certification FCC Part 15 Subpart B Class A CE EN 55022 Class A FCC Part 15 Subpart B Class A, CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 2 EN61000-4-4 (EFT) Level 2 EN61000-4-5 (Surge) Level 2 EN61000-4-6 (CS) Level 2 EN 61000-4-8 (PFMF) Level 1 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
    Input voltage 12 - 60 V
    Power consumption (typical) 1.44 W
    Width 59 mm
    Depth 49 mm
    Height 36 mm
    Weight 90 g
    Operating temperature (T-T) -40 - 75 °C
    Storage temperature (T-T) -40 - 75 °C
    Operating relative humidity (H-H) 5 - 95%
    Package width 160 mm
    Package depth 105 mm
    Package height 65 mm
    Package weight 260 g
    Package type Box
    Quick installation guide Y
    Sustainability certificates RoHS
    Harmonized System (HS) code 85176990
