| Product type | Group video conferencing system |
| Number of persons | 16 person(s) |
| Product colour | Black |
| Pan range | -90 - 90° |
| Pan speed | 70 °/sec |
| Tilt speed | 70 °/sec |
| Tilt angle range | -90 - 50° |
| PTZ control | Yes |
| Tripod mounting supported | Yes |
| HD type | 4K Ultra HD |
| Supported video modes | 576p, 720p, 900p, 1080p, 1440p, 2160p |
| Maximum frame rate | 60 fps |
| Frequency range | 300 - 10000 Hz |
| Output level | 95/100 dB |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| Microphone pick-up range | 4.5 m |
| Sample rates | 0 - 48 kHz |
| HDMI ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Line-in | Yes |
| Interface module HDMI input ports quantity | 2 |
| Interface module HDMI output ports quantity | 2 |
| Ethernet LAN | Yes |
| Zoom capability | Yes |
| Digital zoom | 15x |
| Field of view (FOV) angle | 90° |
| Focus adjustment | Auto |
| Number of camera presets | 3 |
| Microphone colour | Black |
| Microphone sensitivity | -27 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Microphone mute | Yes |
| Sound pressure level (max) | 95 dB |
| Number of microphones | 4 |
| Number of microphone arrays | 2 |
| Telepresence | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Master (outer) case gross weight | 12.3 kg |
| Master (outer) case length | 417 mm |
| Master (outer) case width | 227 mm |
| Master (outer) case height | 722 mm |
| Harmonized System (HS) code | 85176990 |
| Battery capacity | 0.675 Wh |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Power source type | AC |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 2 |
| Microphone dimensions (WxHxD) | 102 x 102 x 21 mm |
| Speaker dimensions (WxDxH) | 449 x 80 x 103 mm |
| Camera dimensions (WxDxH) | 152 x 152 x 182.5 mm |
| Package width | 210 mm |
| Package depth | 400 mm |
| Package height | 690 mm |
| Package weight | 11.2 kg |
| External interface module included | Yes |
| Cables included | AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C |
| Power cable length | 1.5 m |
| Networking cable length | 5 m |
| HDMI cable length | 2 m |
| AC adapter included | Yes |
| Speaker included | Yes |
| Remote control included | Yes |
| Camera included | Yes |
| Microphone included | Yes |
| Quick start guide | Yes |
| Packaging content | Rally camera
Rally display hub
Rally table hub
Rally speaker (x1)
Rally mic pod (x1)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power supplies (x2)
Documentation
2-year manufacturer’s guarantee |
| Description |

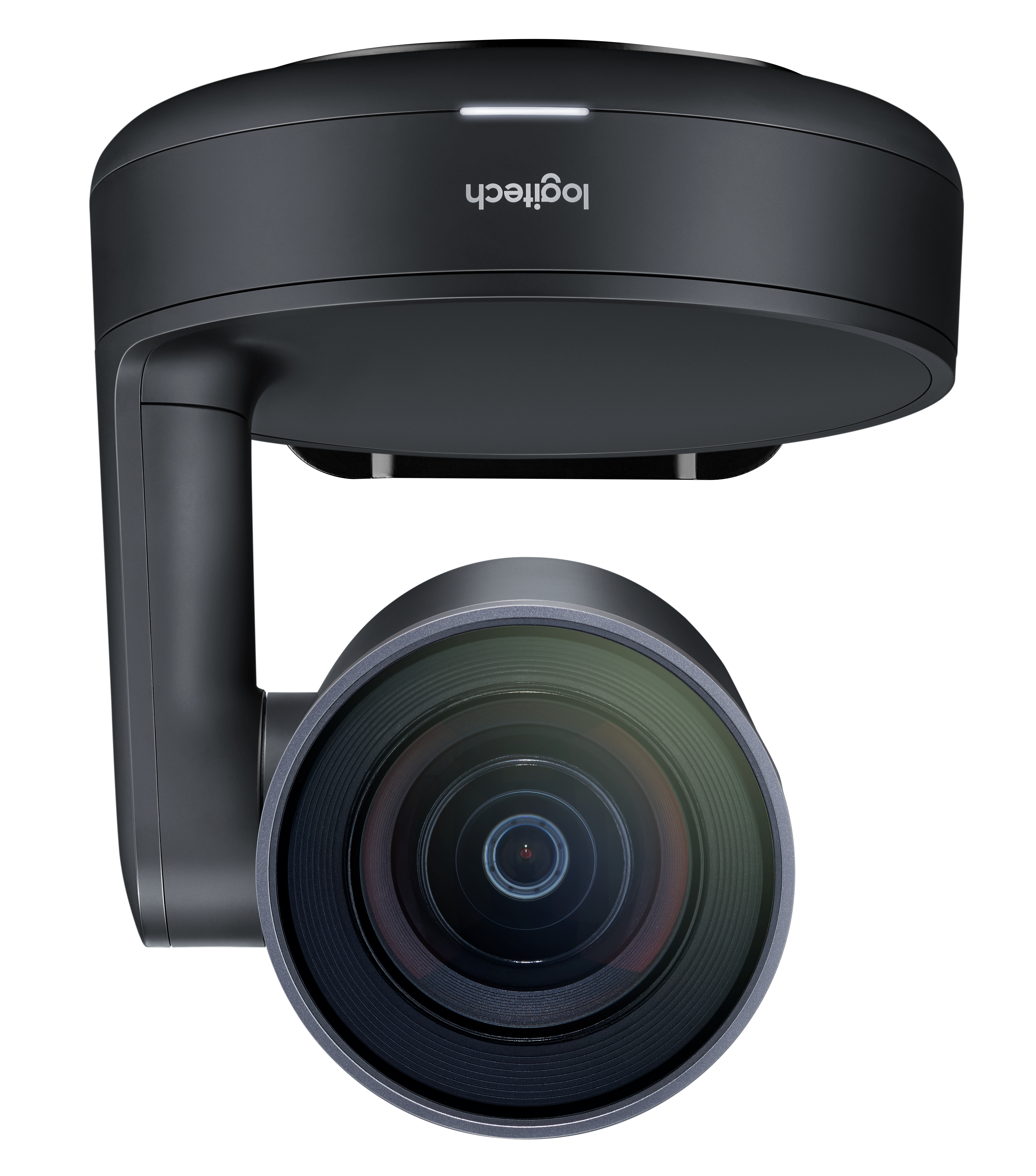

| Logitech Rally Ultra-HD ConferenceCam. Product type: Group video conferencing system, Number of persons: 16 person(s). HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1080p, 1440p, 2160p, Maximum frame rate: 60 fps. Field of view (FOV) angle: 90°, Digital zoom: 15x. Ethernet LAN. Product colour: Black |
