Product type | Group video conferencing system |
Number of persons | 10 person(s) |
Product colour | Black |
Pan range | -90 - 90° |
Pan speed | 70 °/sec |
Tilt speed | 70 °/sec |
Tilt angle range | -90 - 50° |
PTZ control | Yes |
Tripod mounting supported | Yes |
HD type | 4K Ultra HD |
Supported video modes | 576p, 720p, 900p, 1080p, 1440p, 2160p |
Maximum frame rate | 60 fps |
Frequency range | 300 - 10000 Hz |
Output level | 95/100 dB |
Echo cancellation | Yes |
Automatic gain control | Yes |
Microphone pick-up range | 4.5 m |
Sample rates | 0 - 48 kHz |
HDMI ports quantity | 4 |
USB connector type | USB Type-A, USB Type-B, USB Type-C |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 3 |
DC-in jack | Yes |
Line-in | Yes |
Interface module HDMI input ports quantity | 2 |
Interface module HDMI output ports quantity | 2 |
Ethernet LAN | Yes |
Zoom capability | Yes |
Digital zoom | 15x |
Focus adjustment | Auto |
Number of camera presets | 3 |
Microphone colour | Black |
Microphone sensitivity | -27 dB |
Microphone frequency | 90 - 16000 Hz |
Microphone direction type | Omnidirectional |
Microphone mute | Yes |
Sound pressure level (max) | 95 dB |
Number of microphones | 4 |
Number of microphone arrays | 1 |
Telepresence | No |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Master (outer) case gross weight | 10.3 kg |
Master (outer) case length | 726 mm |
Master (outer) case width | 345 mm |
Master (outer) case height | 235 mm |
Harmonized System (HS) code | 85176990 |
Battery capacity | 0.675 Wh |
Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
Power source type | AC |
Battery technology | Lithium |
Battery capacity | 220 mAh |
Number of batteries supported | 2 |
Microphone dimensions (WxHxD) | 102 x 102 x 21 mm |
Speaker dimensions (WxDxH) | 449 x 80 x 103 mm |
Camera dimensions (WxDxH) | 152 x 152 x 182.5 mm |
Package width | 275 mm |
Package depth | 700 mm |
Package height | 220 mm |
Package weight | 8.53 kg |
External interface module included | Yes |
Cables included | AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C |
Power cable length | 1.5 m |
Networking cable length | 5 m |
HDMI cable length | 2 m |
AC adapter included | Yes |
Speaker included | Yes |
Remote control included | Yes |
Camera included | Yes |
Microphone included | Yes |
Quick start guide | Yes |
Packaging content | Rally camera
Rally display hub
Rally table hub
Rally speaker (x1)
Rally mic pod (x1)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power supplies (x2)
Documentation
2-year manufacturer’s guarantee |
Description |

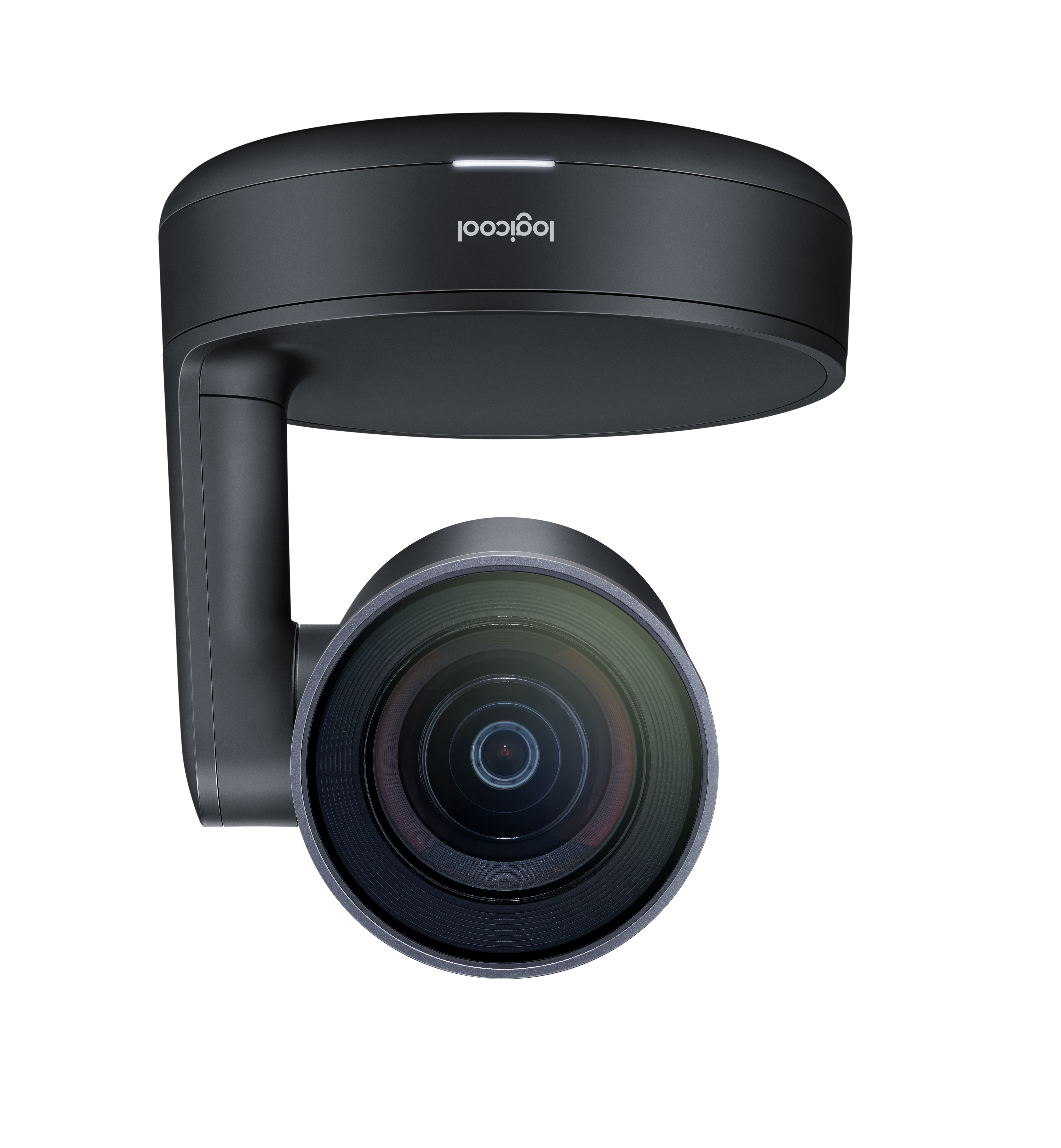

Logitech Rally Ultra-HD ConferenceCam. Product type: Group video conferencing system, Number of persons: 10 person(s). HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1080p, 1440p, 2160p, Maximum frame rate: 60 fps. Digital zoom: 15x. Ethernet LAN. Product colour: Black |
