    Iepriekšējais produktsLevelOne FGP-2031 20-Port-F...
    Nākamais produktsLevelOne FGP-2602W380 26-Po...
    Ražotājs: LEVELONE

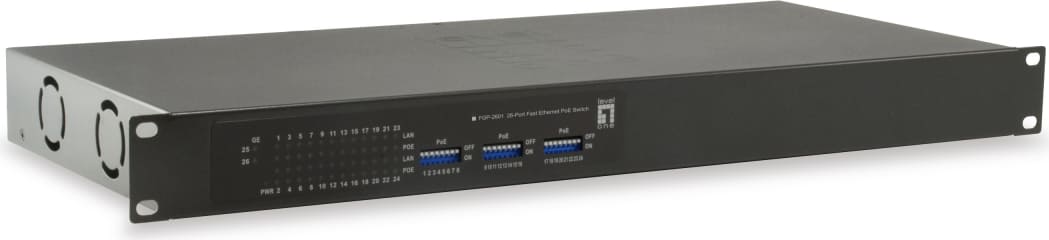

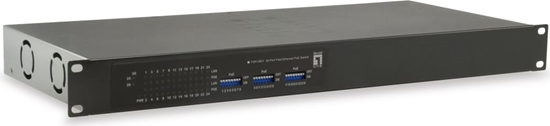

    LevelOne FGP-2601W150 26-Port-Fast Ethernet-PoE-Switch


    €465,89 ar pvn

    Artikuls: ST04493484
    Preces kods: FGP-2601W150
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    WRL stadarti 802.11b
    Īpašības RJ-45
    Portu skaits RJ-45 26
    Status7 dienas
    Description
    The LevelOne FGP-2601 series are unmanaged PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-2601 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 26
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Fast Ethernet (copper) ports quantity 24
    Gigabit Ethernet (copper) ports quantity 2
    Power connector AC-in jack
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
    Full duplex Y
    Flow control support Y
    MAC address table 4000 entries
    Switching capacity 8.8 Gbit/s
    Jumbo frames support Y
    Jumbo frames 10000
    Packet forwarding rate (1 Gbps) 1488000 pps
    Packet forwarding rate (100 Mbps) 148800 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Packet buffer memory 0.512 MB
    Rack mounting Y
    Product colour Black
    Housing material Metal
    LED indicators LAN, PoE, Power, Uplink
    On/off switch Y
    Country of origin Taiwan
    Certification FCC Class A, CE
    Mean time between failures (MTBF) 50000 h
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power protection features Over current, Over voltage, Overheating
    Power over Ethernet (PoE) Y
    Power over Ethernet plus (PoE+) ports quantity 24
    Power over Ethernet (PoE) power per port 30 W
    Total Power over Ethernet (PoE) budget 150 W
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 200 mm
    Depth 44 mm
    Height 440 mm
    Weight 2.9 kg
    Cables included AC
    Manual Y
    Package width 260 mm
    Package depth 95 mm
    Package height 540 mm
    Package weight 3.5 kg
    Master (outer) case width 510 mm
    Master (outer) case length 280 mm
    Master (outer) case height 555 mm
    Harmonized System (HS) code 85176990
    Master (outer) case gross weight 18 kg
