    Ražotājs: LEVELONE

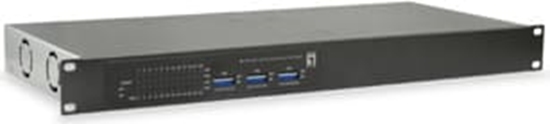

    LevelOne FGP-2602W380 26-Port-Fast Ethernet-PoE-Switch


    €508,99 ar pvn

    Artikuls: ST04527277
    Preces kods: FGP-2602W380
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Īpašības RJ-45
    Portu skaits RJ-45 26
    Status7 dienas
    Description
    The LevelOne FGP-2602 series are unmanaged PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-2602 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 26
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Fast Ethernet (copper) ports quantity 24
    Gigabit Ethernet (copper) ports quantity 2
    SFP module slots quantity 2
    Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
    Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
    Full duplex Y
    Flow control support Y
    MAC address table 4000 entries
    Switching capacity 8.8 Gbit/s
    Jumbo frames support Y
    Jumbo frames 10000
    Packet forwarding rate (1 Gbps) 1488000 pps
    Packet forwarding rate (100 Mbps) 148800 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Rack mounting Y
    Product colour Black
    Housing material Metal
    LED indicators LAN, PoE, Power, Uplink
    Safety FCC Class A, CE
    Buffer size 512 KB
    Mean time between failures (MTBF) 50000 h
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power protection features Over current, Over voltage, Overheating
    Power over Ethernet (PoE) Y
    Power over Ethernet plus (PoE+) ports quantity 24
    Power over Ethernet (PoE) power per port 30 W
    Total Power over Ethernet (PoE) budget 380 W
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 200 mm
    Depth 44 mm
    Height 440 mm
    Weight 2.9 kg
    Cables included AC
    Manual Y
    Package width 260 mm
    Package depth 95 mm
    Package height 540 mm
    Package weight 3.5 kg
    Harmonized System (HS) code 85176990
    Regulatory Approvals EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013 EMS:EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004

    Specifikācija
    Īpašības RJ-45
    Portu skaits RJ-45 26
    Status7 dienas
    Description
    The LevelOne FGP-2602 series are unmanaged PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-2602 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 26
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Fast Ethernet (copper) ports quantity 24
    Gigabit Ethernet (copper) ports quantity 2
    SFP module slots quantity 2
    Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
    Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
    Full duplex Y
    Flow control support Y
    MAC address table 4000 entries
    Switching capacity 8.8 Gbit/s
    Jumbo frames support Y
    Jumbo frames 10000
    Packet forwarding rate (1 Gbps) 1488000 pps
    Packet forwarding rate (100 Mbps) 148800 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Rack mounting Y
    Product colour Black
    Housing material Metal
    LED indicators LAN, PoE, Power, Uplink
    Safety FCC Class A, CE
    Buffer size 512 KB
    Mean time between failures (MTBF) 50000 h
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power protection features Over current, Over voltage, Overheating
    Power over Ethernet (PoE) Y
    Power over Ethernet plus (PoE+) ports quantity 24
    Power over Ethernet (PoE) power per port 30 W
    Total Power over Ethernet (PoE) budget 380 W
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 200 mm
    Depth 44 mm
    Height 440 mm
    Weight 2.9 kg
    Cables included AC
    Manual Y
    Package width 260 mm
    Package depth 95 mm
    Package height 540 mm
    Package weight 3.5 kg
    Harmonized System (HS) code 85176990
    Regulatory Approvals EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013 EMS:EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004
