Производитель: LEVELONE

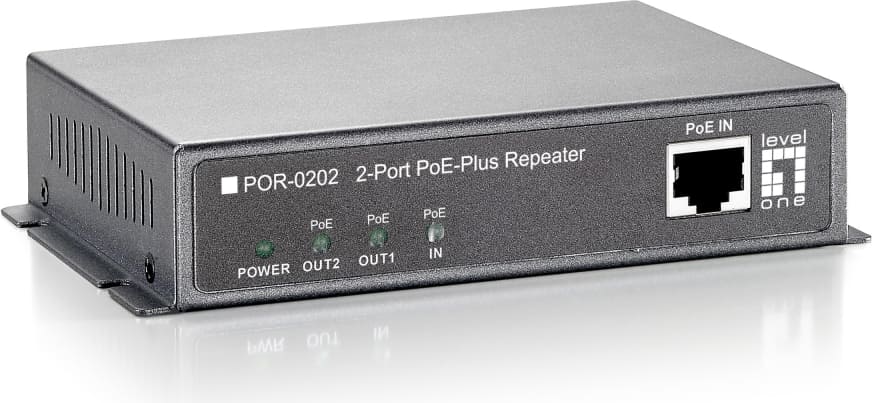

LevelOne POR-0202 2-Port PoE-Repeater

€269,13 с налогом

Артикул: ST04491113

Код производителя: POR-0202

Сайт производителя

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	3	€269,13 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Свойства	RJ-45
Количество портов RJ-45	2

Status

7 dienas

Description

Extend the reach of your PoE-Plus devices For system integrators looking for a professional solution to help extend their PoE (802.3af/at) network, POR-0202 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility. Normal cable runs only reach 100 meters, but with POR-0202 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters. * Maximum distance depends on the required Wattage of the PD. Simple yet durable, no software required As a PoE-Plus Repeater, POR-0202 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus switch. This means that POR-0202 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0202 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-0202 fits into any tight deployments. Applications POR-0202 is a long-ranged solution for deploying PoE IP Cameras and any Fast Ethernet PoE PD powered by 802.3at PSE. - High Power Midspan PoE compliant to simplify deployment and installation - Built-in 2 PoE output ports for PoE devices - Forwards Power over Ethernet to remote device - Extends PoE connection for another 100 meters - Multiple PoE repeaters can be deployed by daisy chain to extend range - Simple Plug and Play installation, no additional power supply required

Type	Network repeater
Maximum transfer distance	100 m
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports	3
Power over Ethernet (PoE) ports quantity	3
Product colour	Black
Mounting type	Wall
LED indicators	PoE, Power
Country of origin	Taiwan
Certification	FCC Part 15, CE
Power consumption (max)	2.5 W
Power over Ethernet (PoE)	Y
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	130 mm
Depth	90 mm
Height	28 mm
Weight	400 g
Sustainability certificates	RoHS
Quick start guide	Y
Package type	Box
Package width	146 mm
Package depth	222 mm
Package height	78 mm
Package weight	600 g
Harmonized System (HS) code	85176990

Характеристики

1
Details 2

Свойства	RJ-45
Количество портов RJ-45	2

Status

7 dienas

Description

Extend the reach of your PoE-Plus devices For system integrators looking for a professional solution to help extend their PoE (802.3af/at) network, POR-0202 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility. Normal cable runs only reach 100 meters, but with POR-0202 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters. * Maximum distance depends on the required Wattage of the PD. Simple yet durable, no software required As a PoE-Plus Repeater, POR-0202 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus switch. This means that POR-0202 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0202 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-0202 fits into any tight deployments. Applications POR-0202 is a long-ranged solution for deploying PoE IP Cameras and any Fast Ethernet PoE PD powered by 802.3at PSE. - High Power Midspan PoE compliant to simplify deployment and installation - Built-in 2 PoE output ports for PoE devices - Forwards Power over Ethernet to remote device - Extends PoE connection for another 100 meters - Multiple PoE repeaters can be deployed by daisy chain to extend range - Simple Plug and Play installation, no additional power supply required

Type	Network repeater
Maximum transfer distance	100 m
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports	3
Power over Ethernet (PoE) ports quantity	3
Product colour	Black
Mounting type	Wall
LED indicators	PoE, Power
Country of origin	Taiwan
Certification	FCC Part 15, CE
Power consumption (max)	2.5 W
Power over Ethernet (PoE)	Y
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	130 mm
Depth	90 mm
Height	28 mm
Weight	400 g
Sustainability certificates	RoHS
Quick start guide	Y
Package type	Box
Package width	146 mm
Package depth	222 mm
Package height	78 mm
Package weight	600 g
Harmonized System (HS) code	85176990
