Производитель: ATEN

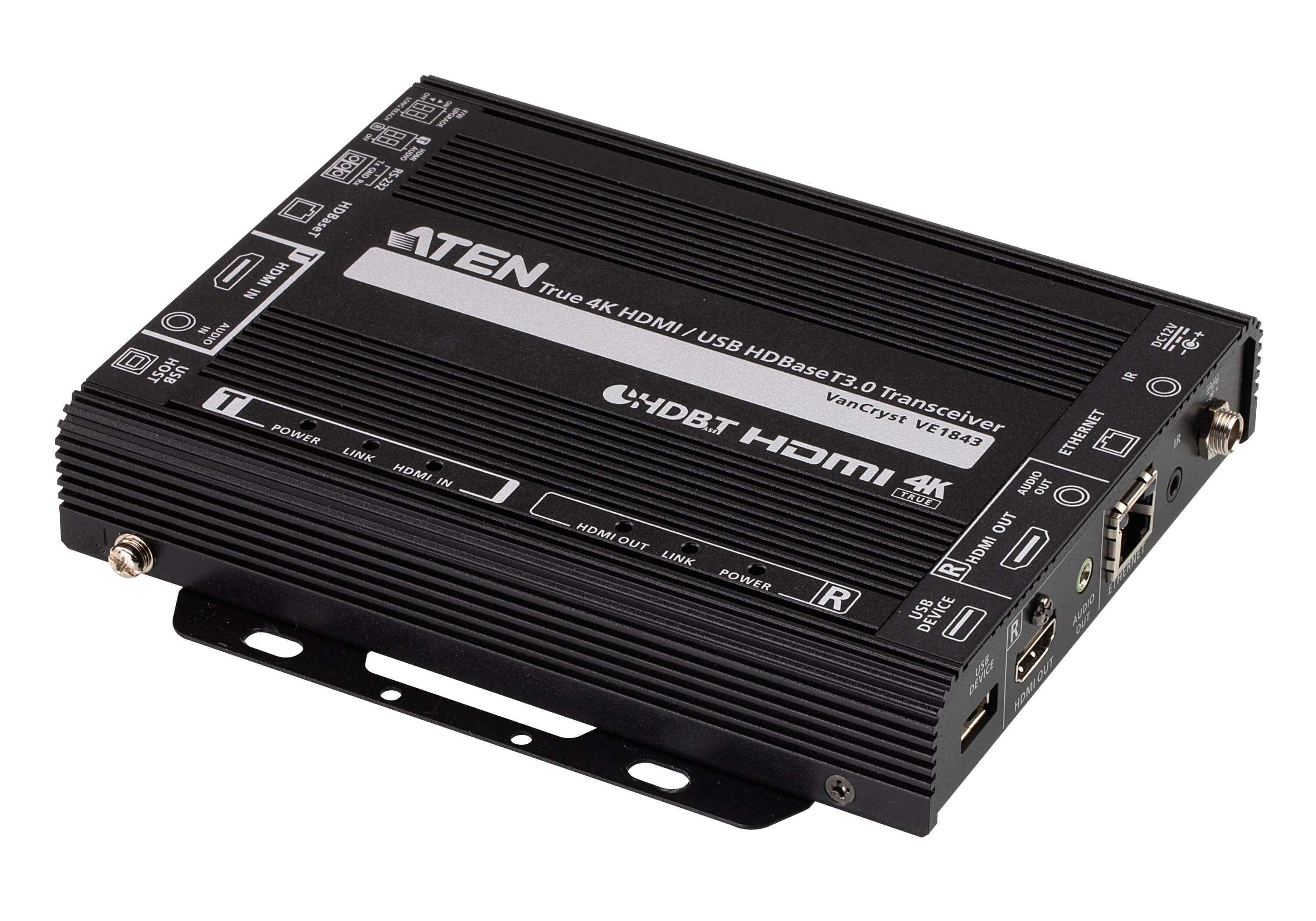

ATEN True 4K HDMI / USB HDBaseT 3.0 Transceiver

€514,25 с налогом

Артикул: ST06945561

Код производителя: VE1843-AT-G

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	10	€514,25 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Свойства	HDMI
Свойства	USB

Type	AV repeater
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat6a
Maximum transfer distance	100 m
Maximum refresh rate	240 Hz
Front panel control (RX)	Yes
Front panel control (TX)	Yes
Infrared (IR) frequency range	30 - 56 kHz
LED indicators	Yes
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Bandwidth	18 Gbit/s
Bandwidth	600 MHz
HDCP	Yes
Material	Metal
3D	Yes
Impedance	100 Ω
Rubber feet	Yes
HDCP version	2.2
Product colour	Black
Connectivity technology	Wired
Ethernet LAN	Yes
RJ-45 input ports	1
RJ-45 output ports	1
HDBaseT port	Yes
HDMI in	1
Number of HDMI outputs	1
USB ports quantity	2
USB version	2.0
USB connector type	USB Type-A, USB Type-B
Audio input	1
Audio output	1
Serial ports quantity	1
Serial interface type	RS-232
Remote (IR) input	1
DC-in jack	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	150.9 mm
Depth	171.5 mm
Height	30 mm
Weight	640 g
Package width	95 mm
Package depth	265 mm
Package height	220 mm
Package weight	1.4 kg
AC adapter included	Yes
Cables included	USB
IR emitter included	Yes
Manual	Yes
IR receiver included	Yes
Country of origin	Taiwan
Package volume	5663.37 cm³
Master (outer) case width	232 mm
Master (outer) case length	500 mm
Master (outer) case height	283 mm
Master (outer) case gross weight	7.55 kg
Master (outer) case volume	32847.54 cm³
Master (outer) case net weight	5.87 kg
Products per master (outer) case	5 pc(s)
Description
Description	ATEN True 4K HDMI / USB HDBaseT 3.0 Transceiver. Type: AV repeater, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B, Serial interface type: RS-232. Width: 150.9 mm, Depth: 171.5 mm, Height: 30 mm. Package width: 95 mm, Package depth: 265 mm, Package height: 220 mm. Cables included: USB

Характеристики

1
Details 2

Свойства	HDMI
Свойства	USB

Type	AV repeater
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat6a
Maximum transfer distance	100 m
Maximum refresh rate	240 Hz
Front panel control (RX)	Yes
Front panel control (TX)	Yes
Infrared (IR) frequency range	30 - 56 kHz
LED indicators	Yes
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Bandwidth	18 Gbit/s
Bandwidth	600 MHz
HDCP	Yes
Material	Metal
3D	Yes
Impedance	100 Ω
Rubber feet	Yes
HDCP version	2.2
Product colour	Black
Connectivity technology	Wired
Ethernet LAN	Yes
RJ-45 input ports	1
RJ-45 output ports	1
HDBaseT port	Yes
HDMI in	1
Number of HDMI outputs	1
USB ports quantity	2
USB version	2.0
USB connector type	USB Type-A, USB Type-B
Audio input	1
Audio output	1
Serial ports quantity	1
Serial interface type	RS-232
Remote (IR) input	1
DC-in jack	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	150.9 mm
Depth	171.5 mm
Height	30 mm
Weight	640 g
Package width	95 mm
Package depth	265 mm
Package height	220 mm
Package weight	1.4 kg
AC adapter included	Yes
Cables included	USB
IR emitter included	Yes
Manual	Yes
IR receiver included	Yes
Country of origin	Taiwan
Package volume	5663.37 cm³
Master (outer) case width	232 mm
Master (outer) case length	500 mm
Master (outer) case height	283 mm
Master (outer) case gross weight	7.55 kg
Master (outer) case volume	32847.54 cm³
Master (outer) case net weight	5.87 kg
Products per master (outer) case	5 pc(s)
Description
Description	ATEN True 4K HDMI / USB HDBaseT 3.0 Transceiver. Type: AV repeater, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B, Serial interface type: RS-232. Width: 150.9 mm, Depth: 171.5 mm, Height: 30 mm. Package width: 95 mm, Package depth: 265 mm, Package height: 220 mm. Cables included: USB
