Number of computers controlled | 4 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | HDMI |
Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A |
DisplayPorts quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
Console USB ports quantity | 2 |
USB hub | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
USB connector type | USB Type-A, USB Type-B |
Audio connections | Yes |
Headphone outputs | 6 |
Number of microphone inputs | 6 |
DC-in jack | Yes |
HD type | 4K Ultra HD |
Maximum resolution | 4096 x 2160 pixels |
Video bandwidth | 60 Hz |
Scan interval | 1,5,99 s |
Product colour | Black |
Housing material | Metal, Plastic |
LED indicators | Yes |
Push button | Yes |
Hot keys | Yes |
Built-in display | No |
Power source | DC |
DC input voltage | 5 V |
Power consumption (typical) | 4.89 W |
Windows operating systems supported | Yes |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80% |
Storage relative humidity (H-H) | 0 - 80% |
Width | 270 mm |
Depth | 88 mm |
Height | 55.5 mm |
Weight | 2.01 kg |
Package width | 98 mm |
Package depth | 325 mm |
Package height | 210 mm |
Package weight | 2.56 kg |
Quick installation guide | Yes |
Manual | Yes |
Master (outer) case net weight | 10.1 kg |
Harmonized System (HS) code | 85176200 |
Master (outer) case width | 342 mm |
Master (outer) case length | 512 mm |
Master (outer) case height | 232 mm |
Master (outer) case gross weight | 13.7 kg |
Products per master (outer) case | 5 pc(s) |
Description |

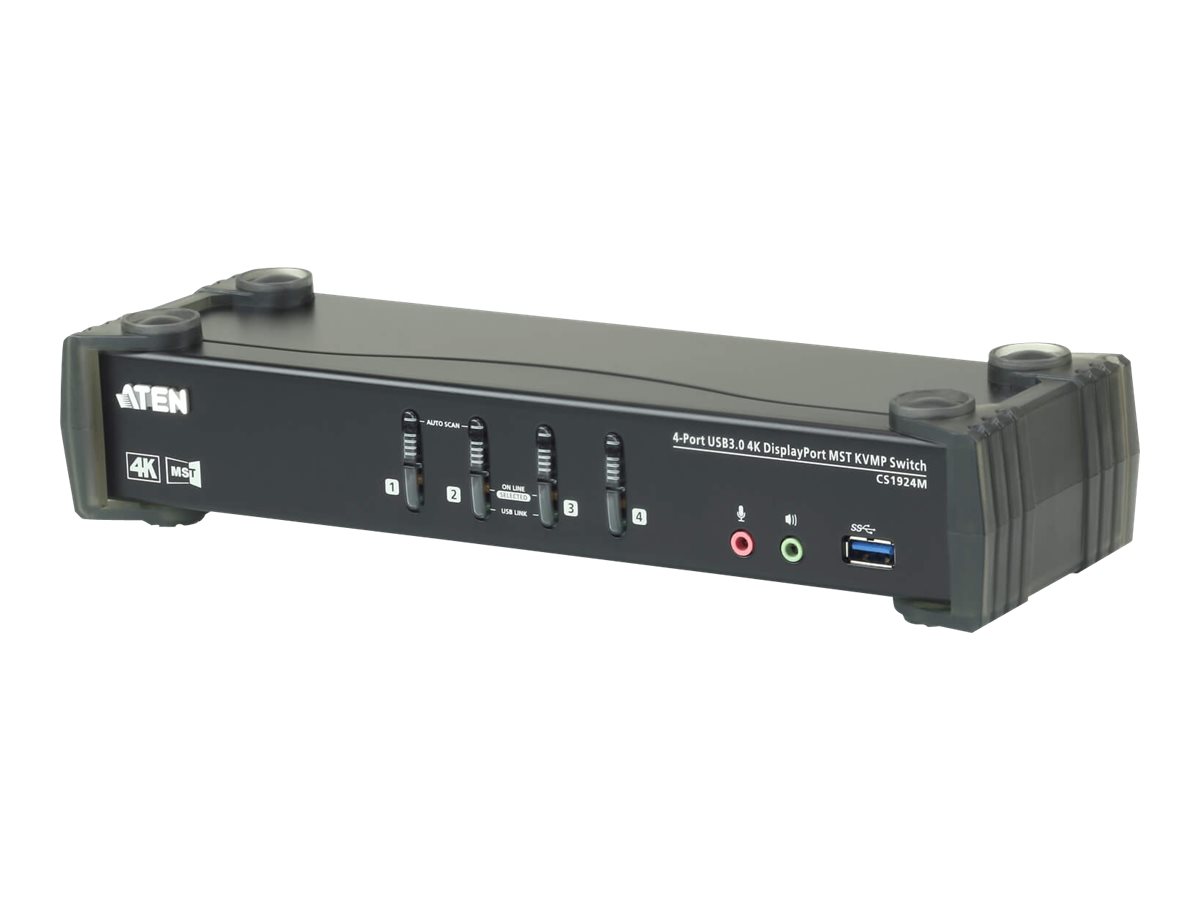

ATEN 4-Port USB 3.0 4K DisplayPort MST KVMP Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 4.89 W. Width: 270 mm, Depth: 88 mm, Height: 55.5 mm |
