Производитель: EATON

1600VA/1000W UPS, line-interactive, IEC 4+4

€434,75 с налогом

Артикул: ST00808647

Код производителя: ELP1600IEC

Сайт производителя

гарантия: 24 месяцы

Stock *

Количество:

Характеристики

UPS стабилизаторы напряжения	1600
Выходная мощность	1000
гнездo (IEC320)	да
гнездo (USB)	да
Тип	Line Interactive

UPS topology	Line-Interactive
Output power capacity	1.6 kVA
Output power	1000 W
Input operation voltage (min)	150 V
Input operation voltage (max)	285 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50 Hz
Emergency Power Off (EPO)	Yes
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB 2.0 ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	9 min
Hot-swap battery	No
Automatic battery test	Yes
Cold start	Yes
Form factor	Tower
Product colour	Black
Rack capacity	2U
Display type	LCD
LED indicators	Yes
Safety	IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Width	82 mm
Depth	390 mm
Height	275 mm
Weight	11.3 kg
Harmonized System (HS) code	85078000
Nominal input voltage	230 V
Description

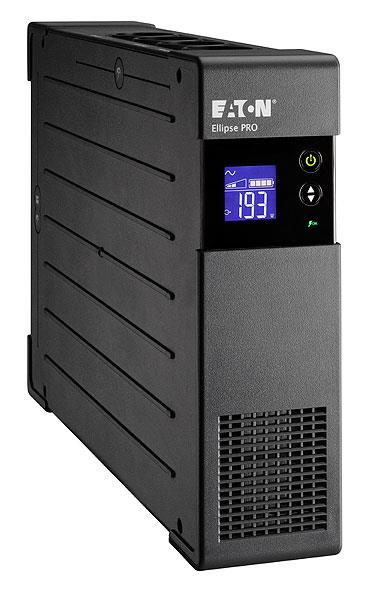

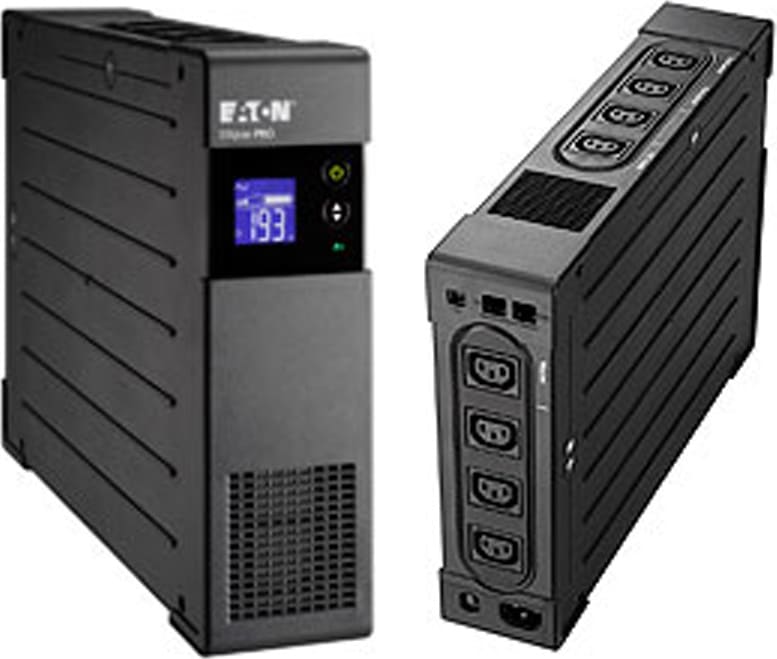

Eaton Ellipse PRO 1600 IEC. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Width: 82 mm, Depth: 390 mm, Height: 275 mm

Description
1000 Watts \| 1600 VA \| Topology LineInteractive \| Input ports Single, IEC320 C14 \| Output power connector type IEC 320 C13 \| 1xUSB \| Desktop/pedestal \| Rack \| Colour Black

Description	EATON Ellipse PRO 1600 1600VA/1000W USB
VatType	VAT
Weight	12.580000000
Height	145.000000000
Width	330.000000000
Length	495.000000000
Description
EATON Ellipse PRO 1600 1600VA/1000W USB port IEC Rack/Tower 4min Runtime 780W

ShortDesc	1600VA/1000W UPS, line-interactive, IEC 4+4
UPS Power (VA)	1600 VA
UPS Power (W)	1000 W
Runtime (min)	9/5
Input Voltage (V)	165 V - 285 V (adjustable to 150 V - 285 V)
Output Voltage (V)	230 V (adjustable to 220 V - 230 V - 240 V)
Input Frequency (Hz)	50/60 Hz autoselect
Output Frequency (Hz)	-
Input Connections	(1) IEC-320-C14
Output Connections	(4) C13, (4) C13 surge only
Waveform Type	-
Recharge time (hours)	-
Battery Type	Automatic battery test, deep-discharge protection, cold-start capable, replaceable batteries
Topology	Line interactive
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	-
Control Panel	LCD (UPS status and measurements, configuration of UPS settings)
Alarm	-
Color	Black
Form Factor	Rack Tower
Package Contents	-
Width	82 mm
Depth	390 mm
Height	275 mm
Net Weight	11.300 Kg
Gross Weight	12.600 kg
Description
The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.

Gross depth (mm)	145.00
Gross height (mm)	333.00
Gross weight	12.70
Gross width (mm)	490.00
Net weight	11.50
Packing quantity	1.00
Paper/Pasteboard	1000.00
Plastic (No PET)	200.00
Tare weight (kg)	1.20
TI weight (kg)	9.00
Volume (m3)	0.02
Classification of battery	CL126:NE:2016-12-09
Composition of battery	CL127:KT:2016-12-09
Type of battery	Accumulator
Embeeded battery	Yes
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
UPS topology	Line-Interactive
Capacity	1600
Producer product name	ELP1600IEC
Capacity	1000
Functions	Provide backup power - Prevents data loss. Protects your sensitive and valuable equipment. Perfect support for solar panel installations and other sensitive equipment that requires pure sinewave input. Compact and reliable - ideal for home and small office use
Producer product family	Ellipse PRO 1600 IEC
Palette Qty	73
Producer	Eaton
Warranty	36
