| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Grey, White |
| Card reader integrated | No |
| Colour name | Space Grey / White |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Display modes | Extended, Mirror, Primary display |
| Hub weight | 74 g |
| Plug and Play | Yes |
| Country of origin | Taiwan |
| Compatibility | MacBook Pro® with USB-C® ports
Perfect for MacBook Pro® 2021 or later / MacBook Air® M2 |
| Input current | 5 A |
| Output voltage | 20 V |
| Output current | 5 A |
| Operating temperature (T-T) | -1 - 41 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Width | 139 mm |
| Depth | 52 mm |
| Height | 16 mm |
| Weight | 74 g |
| Quantity per pack | 1 pc(s) |
| Package width | 155 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package weight | 141 g |
| Warranty period | 2 year(s) |
| Products per master (outer) case | 32 pc(s) |
| Master (outer) case width | 230 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 4.9 kg |
| Products per shipping (inner) case | 8 pc(s) |
| Export Control Classification Number (ECCN) | EAR99 |
| Shipping (inner) case width | 10.3 cm |
| Shipping (inner) case length | 21.8 cm |
| Shipping (inner) case height | 16.5 cm |
| Special features | 1 x USB4® port capable of the following:
1) 6K60 resolution display
2) 40Gbps data transmission
3) PD charging through up to 100W
Max Display Resolution
USB4®: 6016 x 3384
HDMI™: 3840 x 2160 |
| Contents | 1 - 4K60 Elite Pro USB4® Hub with MagSafe® Kit (JCD395) 2 - Silicone Pads 1 - Quick Installation Guide (QIG) |
| Description |

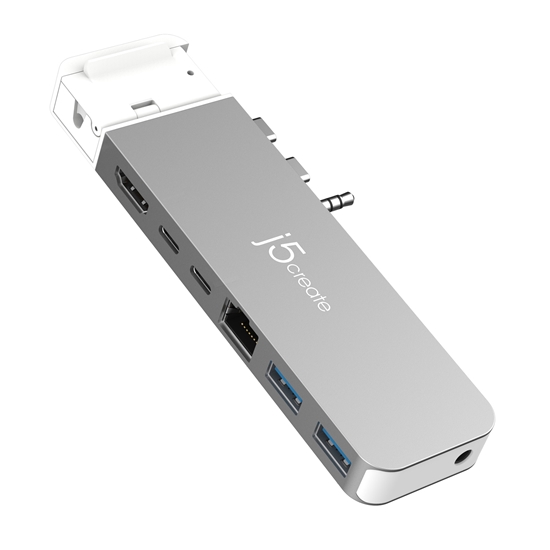

| j5create JCD395 4K60 Elite Pro USB4® Hub with MagSafe® Kit. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, White, Colour name: Space Grey / White, Maximum refresh rate: 60 Hz. Input current: 5 A, Output voltage: 20 V, Output current: 5 A. Width: 139 mm, Depth: 52 mm, Height: 16 mm |
