    PrevDIGITUS CAT 8.2 S/FTP insta...
    NextDigitus Cat.5e U/UTP instal...
    Производитель: DIGITUS

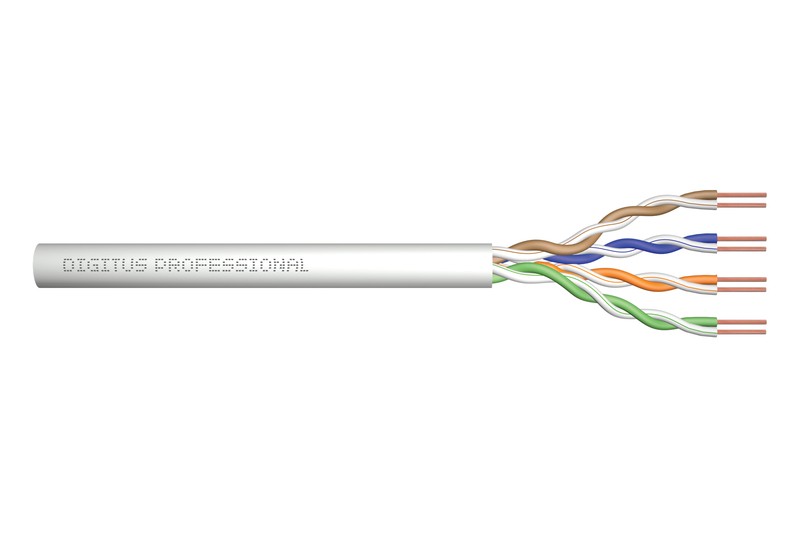

    Digitus Cat.5e U/UTP installation cable, 100 m, simplex, Eca


    €44,20 с налогом

    Артикул: ST02934692
    Код производителя: DK-1511-V-1-1
    Сайт производителя
    гарантия: 24 месяцы
    *
    Склад Доставка Наличие Цена
    PL
    PL
    LV

    Характеристики
    цвет Серый
    цвет Oранжевый
    цвет Зеленый
    цвет Белый
    цвет Коричневый
    TypeCable
    UsageLAN
    Cable length100 (Meter)
    Connectors #1None
    Connectors #2None
    CategoryCAT 5e
    Twisted-pair cableU/UTP
    ColorGray
    Width260
    Height260
    Depth90
    Weight3005
    Description

    Kabel U/UTP kat5e, CU, drut AWG24/1 100m

    Kabel instalacyjny U/UTP (kabel nieekranowany typu skrętka, 4-parowy) przeznaczony jest do wykonywania
    instalacji wewnętrznych poziomych i pionowych w sieciach teleinformatycznych.

    - Powłoka zewnętrzna kabla wykonana jest z polichlorku winylu (PVC)
    - Kable spełniają wymagania kategorii 5e
    - Kabel nieżelowany zbudowany z 8 izolowanych przewodników skręconych w 4 pary
    - Średnica kabla wynosi 4.8 0.3 mm
    - Średnica przewodnika wynosi 0.511 0.005mm
    - Kabel umożliwia stosowanie technologii PoE (Power over Ethernet)
    - Kabel spełnia normy: ISO/IEC 11801, EN 50173-1, IEC 61156-6, EN 50288-2-2, ANSI/TIA/EIA 568-C.2
    Status14 dienas
    Description
    CAT 5e U-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 100 m paper box, sx, grey


    1GBit Ethernet
    100 Mhz transmission frequency
    PoE Power over Ethernet support
    CPR class Eca

    The Digitus Cat 5e U/UTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-2-1, DIN EN 50173. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

    Assortment: Twisted Pair Installation Cables
    Category: CAT 5e
    Shielding: U-UTP, unshielded
    CPR: Eca
    Length: 100 m
    Color: grey
    Jacket: PVC
    Structure: 4 x 2 AWG 24/1, solid twisted pair
    Physical properties:
    Conductor: Bare annealed copper, solid AWG 24/1
    Total number of insulated conductors: 8, twisted in 4 pairs
    Color code: Blue-white, orange-white, green-white, brown-white
    Individual pair shielding: None
    Overall shielding: None
    Outer sheath: Eca acc. to EN 50575; PVC
    Outer sheath diameter (nominal): 0.50 mm nominal
    Outer sheath color: Grey (RAL 7035)
    Mechanical properties:
    Tensile loading: 150N max.
    Dynamic bending radius: 8x AD mm min.
    Static bending radius: 4x AD mm min.
    Shipping- and storage temperature range: -20 °C up to +75 °C
    Operating temperature range: -20 °C up to +60 °C
    Installation temperature range: 0 °C up to +50 °C
    Overall diameter Simplex (nominal): 4.7 mm nominal
    Electrical properties:
    Impedance: 100±5 Ohm @ 1-600 MHz
    Capacitance: 40 pF/m nominal @ 800 Hz
    Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
    Insulation resistance: 5 GOhm x km min.
    DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
    Voltage resistance: 72 Vdc max.
    Coupling attenuation: CA-Type 3
    Signal propagation delay: 535 nS/100 m max.
    Propagation delay: 20 nS/100 m max.
    Separating class: ,,b" acc. to EN 50174-2
    NVP: 69%

    Platums(cm) 23
    Grums(cm) 12
    Augstums(cm) 24
    Svars(kg) 2.6
    Tilpums(cm3) 6624
    Izcelsmes valsts CN
