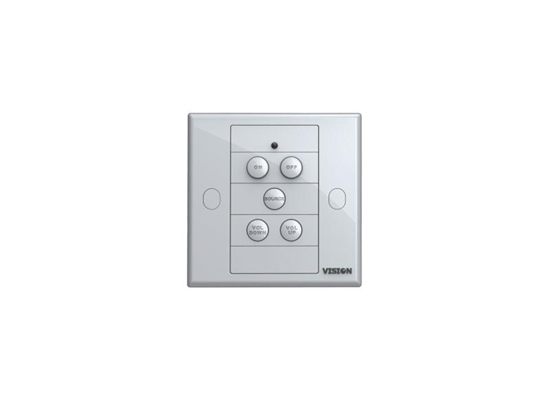

Komutāciju panelis ar IR kontroli

IR vadības kontroles modulis ar 26 maināmām pogām, kas vienlaicīgi saglabā vadības komandas līdz 3 AV ierīcēm. Ar vienu pieskārienu "ON" pogai var nolaist ekrānu, ieslēgt projektoru un pastiprinātāju. Modulis izmanto Jūsu tehnikas IR tālvadības pulti, lai ieprogrammētu komandas. Modulis nāk ar vienmoduļa virsapmetuma kārbu, bet iespējams uzstādīt daudzmoduļu virsapmetuma kārbā.

Produkta izmēri: 71 x 42 x 31mm
Iepakojuma izmēri: 179mm x 150mm x 64mm
Svars 63 grams
Iepakojuma svars: 0.5kg
Krāsa: balta
Komplektā iekļauti:
26 x maināmas pogas
1 x viena moduļa Techconnect kārba
1 x IR uztvērējs ar 10m kabeli
2 x IR uztvērējs bez kabeļa
1 x 3V Lithium CR2450 baterija

Garantija: 2 gadi
Atbilst: RoHS, WEEE, CE un CB.

Learning IR Control

With the new modular Techconnect Control² the button layout and labels can be changed to suit each application. Whether it be for a small installation or a large roll-out, using this control device to standardize the control interface results in confident users and fewer support calls.

Multi-Device Control The module learns codes for up to three AV devices. Press ON once to drop the screen, turn the projector, and turn the amplifier on.

Advanced IR learning Use the remote control from your equipment to program the module in a few easy steps. The new Techconnect Control² features increased processing and memory power to cover a wider range of IR protocols.

Copy for roll-outs
Once programmed, the codes from one Control module can be duplicated to other Control modules.
Mains Power OptionThe Control² module comes with a 3 Volt lithium battery for long life or it can share the power supply provided with a Techconnect Amplifier². This power supply is also available as a spare.

Intelligent Function-Specific Buttons
POWER: The power buttons (top) are pre-set to send up to three stored codes each at the same time for turning all equipment on or off with one press. It will automatically send the projector’s ‘off’ code twice.

INPUT: The input buttons (middle) can learn up to four codes each, and can broadcast in two ways: to suit your application:Toggle Example:Press 1: Projector PC1 Input and Amplifier Input 1

Sequential
Press 1: Projector PC1 Input
Press 2: Projector PC2 Input
Press 3: Projector VID Input
Press 4: Projector S-VID Input
Press 2: Projector PC2 Input and Amplifier Input 2
VOLUME: The volume buttons (bottom) can only learn one code each, but outputs that code repeatedly if held down.

Techconnect Integration
The product comes with a single-gang surround and backbox, or you can mount it in a double-gang surround so you can have connectors, control, and audio on one faceplate.

Specifications
MODULE DIMENSIONS 71 x 42 x 31mm
CARTON DIMENSIONS 179mm x 150mm x 64mm
MODULE WEIGHT 63 grams
PACKAGED WEIGHT 0.5kg
COLOUR White

ACCESSORIES INCLUDED
26 x Interchangeable buttons
1 x Sngle-Gang Techconnect Backbox
1 x Single-Gang Techconnect Surround
1 x IR Blaster with 10m cable
2 x IR Blaster without cable
1 x 3V Lithium CR2450 Battery

POWER CONSUMPTION
Static: <= 5uA
Sending: <= 20mA
Copying: <= 10mA
WARRANTY 2-year return to base
COMPLIANCE RoHS, WEEE & CE Compliant
