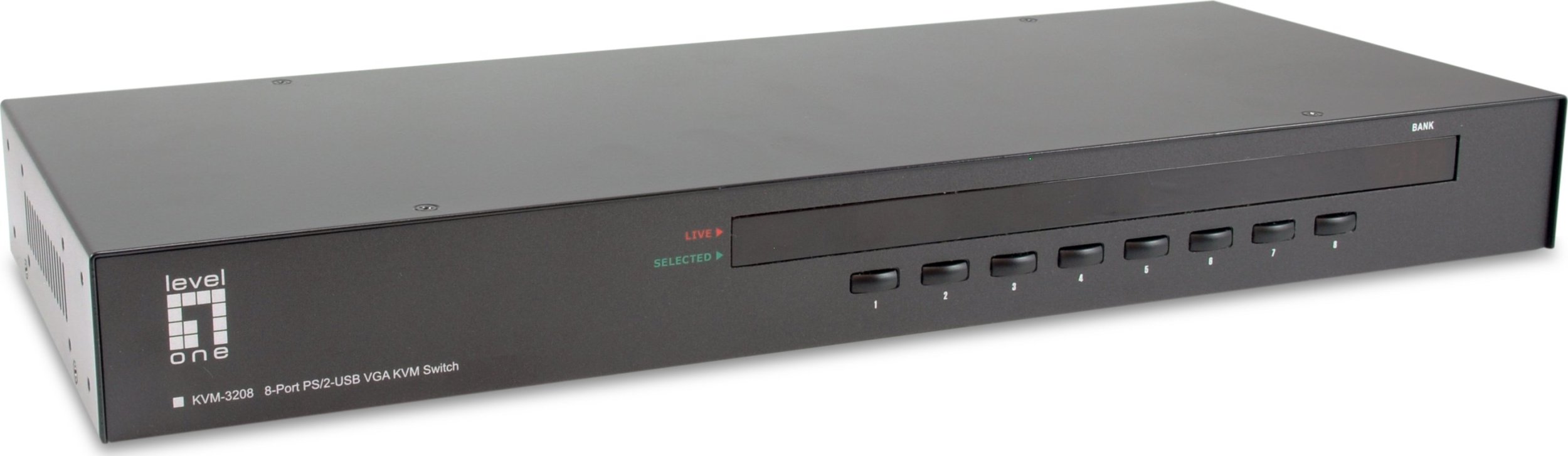

The LevelOne KVM-3208 8-port combo KVM switch enables users to control and manage a server farm or computers connected to the KVM switch with either the local console or remote console port.Local ConsoleThe KVM-3208 Combo KVM Switch is easy to connect to a keyboard and mouse with a VGA monitor through the local console port. This enables a user to control systems connected to the KVM switch directly.Remote ConsoleIn order to make use of the remote control feature.
| | Number of computers controlled | 8 | | Keyboard port type | USB, PS/2 | | Mouse port type | USB, PS/2 | | Video port type | VGA | | Console ports | PS/2, USB A, VGA (D-Sub) | | VGA (D-Sub) ports quantity | 8 | | Console USB ports quantity | 2 | | PS/2 ports quantity | 2 | | DC-in jack | Y | | Maximum resolution | 2048 x 1536 pixels | | Scan interval | 10,15,20,25,30,35,40,45,50,55,60,70,80,90 s | | Auto scan delay (min) | 10 s | | Auto scan delay (max) | 95 s | | Daisy chain | Y | | Maximum operating distance | 30 m | | Rack mounting | Y | | Product colour | Black | | Rack capacity | 1U | | Housing material | Metal | | Cascadable | Y | | LED indicators | Power | | Push button | Y | | Hot keys | Y | | Built-in display | N | | On Screen Display (OSD) | Y | | Power source | DC | | DC input voltage | 9 V | | Input current | 1 A | | External power adapter | Y | | Windows operating systems supported | Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 95, Windows 98, Windows 98SE, Windows ME, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 | | Linux operating systems supported | Y | | Mac operating systems supported | Y | | Sustainability compliance | Y | | Sustainability certificates | CE, Federal Communications Commission (FCC), UKCA, WEEE | | Operating temperature (T-T) | 0 - 40 °C | | Storage temperature (T-T) | -10 - 70 °C | | Operating relative humidity (H-H) | 0 - 85% | | Storage relative humidity (H-H) | 0 - 90% | | Width | 410 mm | | Depth | 165 mm | | Height | 44.5 mm | | Weight | 1.84 kg | | Package width | 567 mm | | Package depth | 245 mm | | Package height | 106 mm | | Package weight | 2.88 kg | | Package type | Box | | Manual | Y | | AC adapter included | Y | | Master (outer) case width | 585 mm | | Master (outer) case length | 270 mm | | Master (outer) case height | 545 mm | | Master (outer) case gross weight | 15.2 kg | | Products per master (outer) case | 5 pc(s) | | Country of origin | Taiwan | | Master (outer) cases per pallet (air) | 24 pc(s) | | Pallet gross length | 110 cm | | Pallet gross width | 120 cm | | Pallet height (air) | 11.5 cm |
|
|
