Производитель: LEVELONE

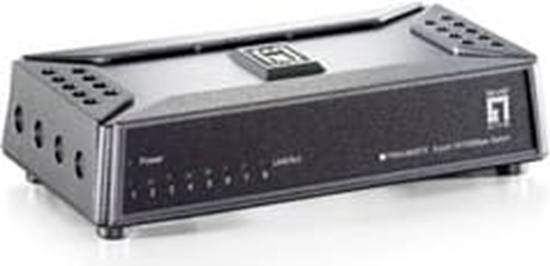

Level One FSW-0808 TX

€33,07 с налогом

Артикул: ST07374413

Код производителя: FSW-0808TX

Сайт производителя

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	472	€33,07 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Количество портов RJ-45	1
Свойства	RJ-45
Количество портов RJ-45	12
Количество портов RJ-45	10

Status

7 dienas

Description

The LevelOne FSW-0808 is a wire-speed, non-blocking networking device that provides 8 ports 10/100Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch. Easy Configuration and Maintenance The LevelOne FSW-0808TX does not require software configuration. Users can immediately use any features of this product simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network. Compact Size Design This switch is compact specially designed to fit on the desktop or in other space-limited locations. The FSW-0808TX provides an ideal solution for businesses that crave a reliable network to exchange large data files and multimedia information with bandwidth-starving workgroup, departments, and offices. - Provides flexibility of 8 x 10/100BASE-TX ports - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - Supports 1K MAC address auto-learning and auto-aging - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Magnetic base for easy placement - Quick and easy installation

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	1024 entries
Switching capacity	1.6 Gbit/s
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	N
Stackable	N
Product colour	Grey
LED indicators	Activity, Link, Power
Country of origin	China
Certification	FCC, CE, RoHS
Buffer size	96 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	5 V
Output current	1 A
Power consumption (typical)	2.8 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	125 mm
Depth	69 mm
Height	30 mm
Quick start guide	Y
AC adapter included	Y
Package width	75 mm
Package depth	130 mm
Package height	90 mm
Package weight	300 g
Harmonized System (HS) code	85176990

Характеристики

1
Details 2

Количество портов RJ-45	1
Свойства	RJ-45
Количество портов RJ-45	12
Количество портов RJ-45	10

Status

7 dienas

Description

The LevelOne FSW-0808 is a wire-speed, non-blocking networking device that provides 8 ports 10/100Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch. Easy Configuration and Maintenance The LevelOne FSW-0808TX does not require software configuration. Users can immediately use any features of this product simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network. Compact Size Design This switch is compact specially designed to fit on the desktop or in other space-limited locations. The FSW-0808TX provides an ideal solution for businesses that crave a reliable network to exchange large data files and multimedia information with bandwidth-starving workgroup, departments, and offices. - Provides flexibility of 8 x 10/100BASE-TX ports - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - Supports 1K MAC address auto-learning and auto-aging - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Magnetic base for easy placement - Quick and easy installation

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	1024 entries
Switching capacity	1.6 Gbit/s
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	N
Stackable	N
Product colour	Grey
LED indicators	Activity, Link, Power
Country of origin	China
Certification	FCC, CE, RoHS
Buffer size	96 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	5 V
Output current	1 A
Power consumption (typical)	2.8 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	125 mm
Depth	69 mm
Height	30 mm
Quick start guide	Y
AC adapter included	Y
Package width	75 mm
Package depth	130 mm
Package height	90 mm
Package weight	300 g
Harmonized System (HS) code	85176990
