    Производитель: INTELLINET

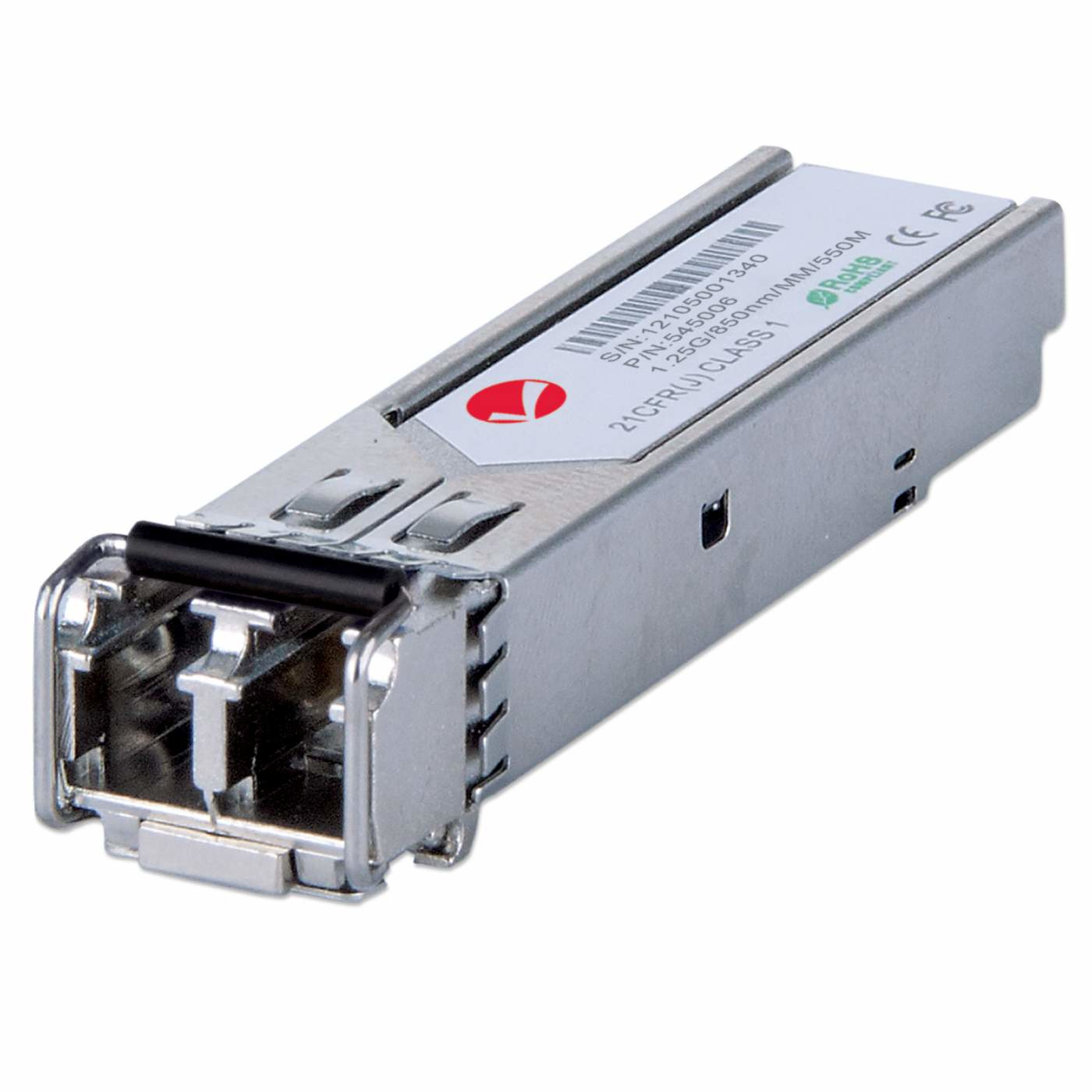

    Intellinet Transceiver Module Optical, Gigabit Ethernet SFP Mini-GBIC, 1000Base-Sx (LC) Multi-Mode Port, 550m,MSA Compliant, Equivalent to Cisco GLC-SX-MM, Three Year Warranty


    €44,38 с налогом

    Артикул: ST02829942
    Код производителя: 545006
    Сайт производителя
    гарантия: 36 месяцы
    *
    Склад Доставка Наличие Цена
    LV
    PL

    Характеристики
    Form factorSFP
    Type / wavelength850 nm
    Range550 m
    Fiber typeSingle-mode
    Accessories included

    Moduł Mini GBIC
    Other features

    Media transmisyjne:
    - 1000Base-SX multi-mode 50/125 mikronów
    - 1000Base-SX multi-mode 62.5/125 mikronów
    Porty: port światłowodu LC duplex, 1000Base-SX
    Dystans:
    - Maksymalna moc nadawcza TX: -3 dBm
    - Minimalna moc nadawcza: - 8 dBm
    - Czułość: -20 dB
    - Zapas: 8 dB
    Wykonany w standardzie SFP (small form factor plugable), 1,25 Gb/s
    Certyfikaty: FCC Class A, CE Mark, RoHS
    Dimensions

    55 x 13 x 12 mm
    Weight15 (gram)
    Power supply

    Zasilanie: 3,3 VPobór mocy: 1 W (maksymalny)
    Width56
    Height120
    Depth25
    Weight32
    Description

    - Przepustowość: 1000 Mb/s;
    - Jeden port światłowodowy 1000Base-SX wielomodowy LC duplex
    - Obsługiwane odległości: do 550 m (okablowanie 50/125 mikronów) lub 220 m (okanblowanie 62.5/125 mikronów);
    - Długość fali: 850 nm;
    - Wykonany w standarcie SFP (small form factor plugable);
    - Podłączanie typu "Hot Plug" (bez konieczności wyłączania przełącznika);
    - Do zastosowania między innymi z przełącznikami Intellinet Gigabit, modele 560801, 560818, 523929;
    - Zgodny ze specyfikacją SFP Transceiver MSA;
    SFP transceiver typeFiber optic
    Maximum data transfer rate1000 Mbit/s
    Interface typeSFP
    Multi-mode fiber (MMF) supportedYes
    Fiber optic connectorLC
    Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
    Maximum transfer distance550 m
    Wavelength850 nm
    Tx power (min)-8 dBmW
    Tx power (max)-3 dBmW
    Link budget8 dB
    Ethernet interface typeGigabit Ethernet
    Networking standardsIEEE 802.3z
    Fiber ethernet cabling technology1000BASE
    Duplex systemFull
    Product colourAluminium
    Form factorSFP
    Hot-Plug supportYes
    CertificationFCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA
    Input voltage3.3 V
    Power consumption (typical)1 W
    Operating temperature (T-T)0 - 70 °C
    Storage temperature (T-T)-40 - 85 °C
    Operating relative humidity (H-H)5 - 95%
    Width13 mm
    Depth55 mm
    Height12 mm
    Weight15 g
    Number of products included1 pc(s)
    Description
    Intellinet Transceiver Module Optical, Gigabit Ethernet SFP Mini-GBIC, 1000Base-Sx (LC) Multi-Mode Port, 550m,MSA Compliant, Equivalent to Cisco GLC-SX-MM, Three Year Warranty. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Aluminium, Form factor: SFP, Certification: FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA. Input voltage: 3.3 V, Power consumption (typical): 1 W. Width: 13 mm, Depth: 55 mm, Height: 12 mm. Number of products included: 1 pc(s)
    Status7 dienas
    Description
    Gigabit Fibre SFP Optical Transceiver Module_x000D_ _x000D_ _x000D_ The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Small Size for High-Density Fibre Connections_x000D_ _x000D_ _x000D_ _x000D_ The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room._x000D_ _x000D_ _x000D_ _x000D_ Multi-Vendor Compatible_x000D_ _x000D_ _x000D_ _x000D_ Compatibility in your network is everything, and the Intellinet SFP Transceiver Module (model 545006) delivers. Use it with any Intellinet SFP equipped network switch or any other MSA (multi source agreement) compliant SFP enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor pn GLC-SX-MM, compatibility to your Cisco gear is provided._x000D_ _x000D_ _x000D_ _x000D_ Hot-Pluggable_x000D_ _x000D_ _x000D_ _x000D_ No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market._x000D_

    SFP transceiver type Fiber optic
    Maximum data transfer rate 1000 Mbit/s
    Interface type SFP
    Multi-mode fiber (MMF) supported Y
    Fiber optic connector LC
    Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
    Maximum transfer distance 550 m
    Wavelength 850 nm
    Tx power (min) -8 dBmW
    Tx power (max) -3 dBmW
    Link budget 8 dB
    Ethernet interface type Gigabit Ethernet
    Networking standards IEEE 802.3z
    Fiber ethernet cabling technology 1000BASE-SX
    Duplex system Full
    Product colour Aluminium
    Form factor SFP
    Hot-Plug support Y
    Certification FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA
    Input voltage 3.3 V
    Power consumption (typical) 1 W
    Operating temperature (T-T) 0 - 70 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 5 - 95%
    Width 13 mm
    Depth 55 mm
    Height 12 mm
    Weight 15 g
    Number of products included 1 pc(s)

    Характеристики
    Form factorSFP
    Type / wavelength850 nm
    Range550 m
    Fiber typeSingle-mode
    Accessories included

    Moduł Mini GBIC
    Other features

    Media transmisyjne:
    - 1000Base-SX multi-mode 50/125 mikronów
    - 1000Base-SX multi-mode 62.5/125 mikronów
    Porty: port światłowodu LC duplex, 1000Base-SX
    Dystans:
    - Maksymalna moc nadawcza TX: -3 dBm
    - Minimalna moc nadawcza: - 8 dBm
    - Czułość: -20 dB
    - Zapas: 8 dB
    Wykonany w standardzie SFP (small form factor plugable), 1,25 Gb/s
    Certyfikaty: FCC Class A, CE Mark, RoHS
    Dimensions

    55 x 13 x 12 mm
    Weight15 (gram)
    Power supply

    Zasilanie: 3,3 VPobór mocy: 1 W (maksymalny)
    Width56
    Height120
    Depth25
    Weight32
    Description

    - Przepustowość: 1000 Mb/s;
    - Jeden port światłowodowy 1000Base-SX wielomodowy LC duplex
    - Obsługiwane odległości: do 550 m (okablowanie 50/125 mikronów) lub 220 m (okanblowanie 62.5/125 mikronów);
    - Długość fali: 850 nm;
    - Wykonany w standarcie SFP (small form factor plugable);
    - Podłączanie typu "Hot Plug" (bez konieczności wyłączania przełącznika);
    - Do zastosowania między innymi z przełącznikami Intellinet Gigabit, modele 560801, 560818, 523929;
    - Zgodny ze specyfikacją SFP Transceiver MSA;
    SFP transceiver typeFiber optic
    Maximum data transfer rate1000 Mbit/s
    Interface typeSFP
    Multi-mode fiber (MMF) supportedYes
    Fiber optic connectorLC
    Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
    Maximum transfer distance550 m
    Wavelength850 nm
    Tx power (min)-8 dBmW
    Tx power (max)-3 dBmW
    Link budget8 dB
    Ethernet interface typeGigabit Ethernet
    Networking standardsIEEE 802.3z
    Fiber ethernet cabling technology1000BASE
    Duplex systemFull
    Product colourAluminium
    Form factorSFP
    Hot-Plug supportYes
    CertificationFCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA
    Input voltage3.3 V
    Power consumption (typical)1 W
    Operating temperature (T-T)0 - 70 °C
    Storage temperature (T-T)-40 - 85 °C
    Operating relative humidity (H-H)5 - 95%
    Width13 mm
    Depth55 mm
    Height12 mm
    Weight15 g
    Number of products included1 pc(s)
    Description
    Intellinet Transceiver Module Optical, Gigabit Ethernet SFP Mini-GBIC, 1000Base-Sx (LC) Multi-Mode Port, 550m,MSA Compliant, Equivalent to Cisco GLC-SX-MM, Three Year Warranty. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Aluminium, Form factor: SFP, Certification: FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA. Input voltage: 3.3 V, Power consumption (typical): 1 W. Width: 13 mm, Depth: 55 mm, Height: 12 mm. Number of products included: 1 pc(s)
    Status7 dienas
    Description
    Gigabit Fibre SFP Optical Transceiver Module_x000D_ _x000D_ _x000D_ The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Small Size for High-Density Fibre Connections_x000D_ _x000D_ _x000D_ _x000D_ The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room._x000D_ _x000D_ _x000D_ _x000D_ Multi-Vendor Compatible_x000D_ _x000D_ _x000D_ _x000D_ Compatibility in your network is everything, and the Intellinet SFP Transceiver Module (model 545006) delivers. Use it with any Intellinet SFP equipped network switch or any other MSA (multi source agreement) compliant SFP enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor pn GLC-SX-MM, compatibility to your Cisco gear is provided._x000D_ _x000D_ _x000D_ _x000D_ Hot-Pluggable_x000D_ _x000D_ _x000D_ _x000D_ No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market._x000D_

    SFP transceiver type Fiber optic
    Maximum data transfer rate 1000 Mbit/s
    Interface type SFP
    Multi-mode fiber (MMF) supported Y
    Fiber optic connector LC
    Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
    Maximum transfer distance 550 m
    Wavelength 850 nm
    Tx power (min) -8 dBmW
    Tx power (max) -3 dBmW
    Link budget 8 dB
    Ethernet interface type Gigabit Ethernet
    Networking standards IEEE 802.3z
    Fiber ethernet cabling technology 1000BASE-SX
    Duplex system Full
    Product colour Aluminium
    Form factor SFP
    Hot-Plug support Y
    Certification FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA
    Input voltage 3.3 V
    Power consumption (typical) 1 W
    Operating temperature (T-T) 0 - 70 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 5 - 95%
    Width 13 mm
    Depth 55 mm
    Height 12 mm
    Weight 15 g
    Number of products included 1 pc(s)
