| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Latency (1 Gbps) | 12 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Rack mounting | Yes |
| Product colour | Blue, Grey |
| Housing material | Metal |
| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
| Certification | FCC 47 CFR Part15B (Class A)
ICES-003 Class A
EN 55024/55032/55035 (Class A)
AS/NZS CISPR 32
VCCI
BSMI CNS13438
KCC
UL 62368-1
CB_IEC 60950-1 + IEC 62368-1 Ed-3
LVD EN60950-1+EN62368-1 Ed-2 Rpt
AS/NZS 62368.1 Ed-2
BSMI CNS14336-1 |
| Mean time between failures (MTBF) | 2415333.9 h |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 316.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 260 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Width | 330 mm |
| Depth | 207 mm |
| Height | 43 mm |
| Weight | 2.3 kg |
| Harmonized System (HS) code | 85176990 |
| Description |

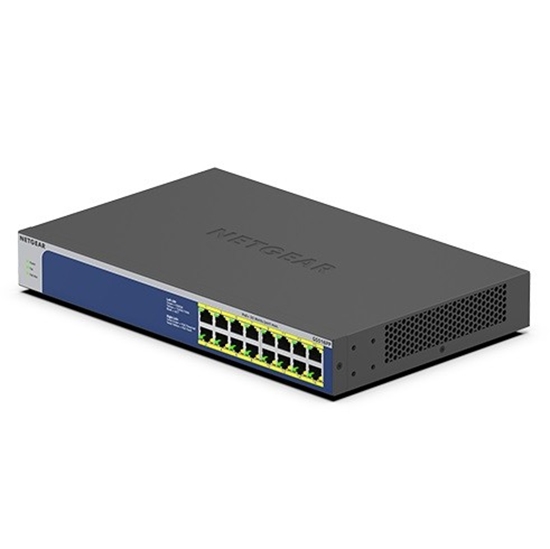

| NETGEAR GS516PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting |
