| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Throughput | 238 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Number of static routes | 64 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Multicast support | Yes |
| Number of multicast groups filtered | 4000 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
| Physical stacking (units) | 8 |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Noise level | 35 dB |
| Mean time between failures (MTBF) | 690301 h |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Power consumption (max) | 610 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 500 W |
| Heat dissipation | 2081.64 BTU/h |
| Width | 212 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 3.22 kg |
| Rack mount kit | Yes |
| Harmonized System (HS) code | 85176990 |
| Description |

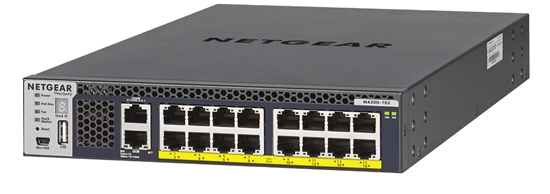

| NETGEAR M4300-16X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
