Производитель: VIEWSONIC

XGA(1024x768), 3600 lm, HDMI, 2x VGA, 5,000/15,000 LAMP hours, exclusive SuperColor technology

€388,65 с налогом

Артикул: ST04041883

Код производителя: PA503X

Сайт производителя

гарантия: 24 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LT	2 - 5 дня	1	€388,65 с налогом
PL	8 - 15 дня	1	€428,21 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4
Details 5

Яркость (lumens)	3600
Видеоинтерфейс	HDMI
Максимальное разрешение	1024 x 768 (XGA)
Проекционная технология	DLP
Максимальное разрешение	800 x 600 (SVGA)
Видеоинтерфейс	D-Sub
Максимальное разрешение	1920 x 1080 (Full HD)

Projector brightness	3600 ANSI lumens
Projection technology	DLP
Projector native resolution	XGA (1024x768)
Native aspect ratio	4:3
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	1.1 - 13 m
Contrast ratio (dynamic)	22000:1
Number of colours	1.073 billion colours
Horizontal scan range	15 - 102 kHz
Vertical scan range	23 - 120 Hz
Keystone correction, vertical	-40 - 40°
Matrix size	1.4 cm (0.55")
Matrix type	DMD
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	15000 h
Lamp power	190 W
Lamps quantity	1 lamp(s)
Focus	Manual
Zoom capability	Yes
Zoom type	Manual
Optical zoom	1.1x
Throw ratio	1.96 - 2.15:1
Analog signal format system	NTSC, PAL, PAL 60, SECAM
3D Ready	Yes
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 х 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VGA (D-Sub) ports quantity	3
HDMI ports quantity	1
Composite video in	1
DVI port	No
Serial interface type	RS-232
HDMI connector type	Full-size
HDMI version	1.4
PC Audio in	Yes
PC Audio out	Yes
AC (power) in	Yes
Ethernet LAN	No
Wi-Fi	No
Card reader integrated	No
Certification	FCC (ICES-003), cTUVus
Built-in speaker(s)	Yes
RMS rated power	2 W
Number of built-in speakers	1
Product type	Standard throw projector
Product colour	Grey, White
Placement	Desktop
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
Power consumption (typical)	260 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	0 - 1499 m
Weight	2.2 kg
Width	294 mm
Depth	218 mm
Height	110 mm
Package width	365 mm
Package depth	188 mm
Package height	300 mm
Package weight	6.24 kg
Remote control included	Yes
Cables included	AC, VGA
Quick start guide	Yes
Harmonized System (HS) code	85286200
RS-232 ports	1
Description

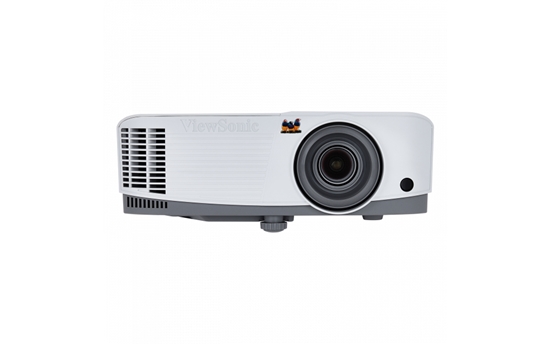

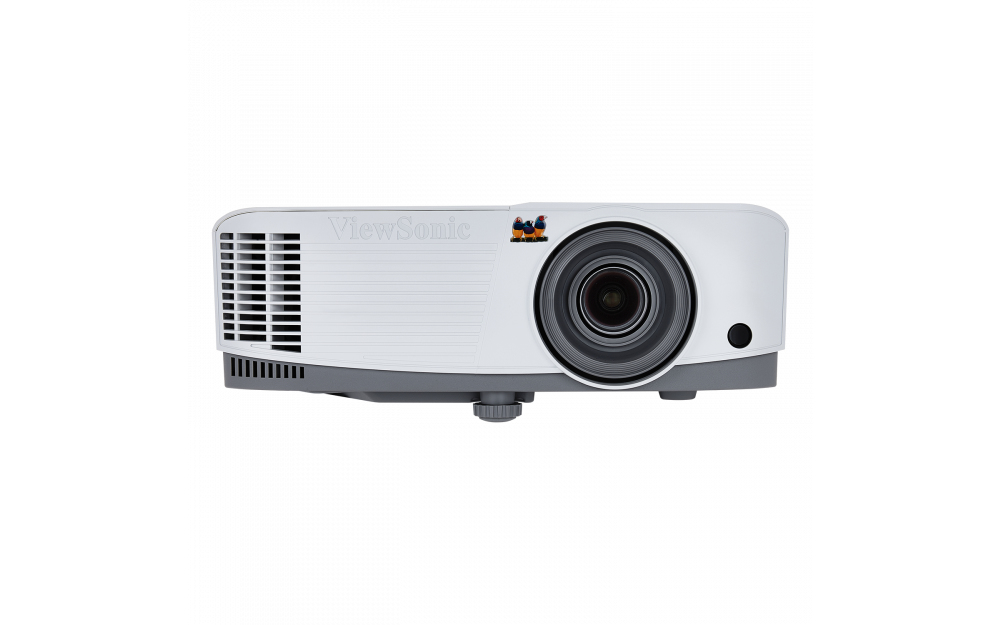

Description	Viewsonic PA503X. Projector brightness: 3600 ANSI lumens, Projection technology: DLP, Projector native resolution: XGA (1024x768). Light source type: Lamp, Service life of light source: 4500 h, Service life of light source (economic mode): 15000 h. Focus: Manual, Zoom type: Manual, Optical zoom: 1.1x. Analog signal format system: NTSC, PAL, PAL 60, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA),..., Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size

Description
	Light output 3800 Lumen \| Native resolution 1024x768 \| Contrast 22000:1 \| 3x15pin D-sub \| 1xHDMI \| 1xAudio-In \| 1xAudio-Out \| 1xRS232 \| 1xMini-USB \| 1xComposite video \| Speakers \| Lamp life 5000 hours \| Included Accessories Power Cord : 1,VGA Cable : 1,Remote Control : 1,Air Filter : RSPL \| Dimensions 294 x 218 x 110mm

ShortDesc	XGA(1024x768), 3600 lm, HDMI, 2x VGA, 5,000/15,000 LAMP hours, exclusive SuperColor technology
Display Type	DC3
Projector brightness	3600 lumens
Compressed Resolution	-
Native Resolution	1024 x 768
Contrast Ratio	22,000:1
Throw Distance Min.	1.19 m
Throw Distance Max.	13.11 m
Projection Size Min.	0.76 m
Projection Size Max.	7.62 m
Frequency Horizontal	15-102 kHz
Frequency Vertical	23-120 Hz
Aspect Ratio	4:3
Computer Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
Input / Output Connectors	3x D-sub Composite 2x 3.5 mm RS-232 USB mini B
Wireless	No
Wireless Interface	-
Lens / Optics	F=2.56-2.68, f=22-24.1 mm
Lamp Life	5,000 hours (normal) 15,000 hours (SuperEco)
Audio	Yes
Audio Features	2W
Mounting Capability	No
User Controls	-
Package Contents	Power Cord VGA Cable Remote Control (w/ laser pointer) QSG Air Filter: RSPL
Width	294 mm
Depth	218 mm
Height	110 mm
Net Weight	2.200 Kg
Gross Weight	6.950 kg
Lamp Warranty	-
Description
Description	03-07 (296)

Description

Viewsonic PA503X. Projector brightness: 3600 ANSI lumens, Projection technology: DLP, Projector native resolution: XGA (1024x768). Light source type: Lamp, Service life of light source: 4500 h, Service life of light source (economic mode): 15000 h. Focus: Manual, Zoom type: Manual, Optical zoom: 1.1x. Analog signal format system: NTSC,PAL,PAL 60,SECAM, Supported graphics resolutions: 640 x 480 (VGA),720 x 480,720 x 576,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x..., Supported video modes: 480i,480p,576i,576p,720p,1080i,1080p. Serial interface type: RS-232, HDMI connector type: Full-size

SPECIFICATION

Projection Offset: 120%+/-5%
Throw Ratio: 1.96~2.15
Image size: 30" - 300"
Throw Distance: 1.19m-13.11m(100" @3.98m)
Keystone: ±40° (Vertical)
Optical Zoom: 1.1x
Audible Noise (Eco): 27dB
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120Hz

INPUT

Computer in (D-SUB 15 pin): 2
Composite: 1
Audio-in (3.5mm): 1
HDMI: 1 (Back)

OUTPUT

Monitor out (D-SUB 15 pin): 1
Audio out (3.5mm): 1
Speaker: 2W

Характеристики

1
Details 2
Details 3
Details 4
Details 5

Яркость (lumens)	3600
Видеоинтерфейс	HDMI
Максимальное разрешение	1024 x 768 (XGA)
Проекционная технология	DLP
Максимальное разрешение	800 x 600 (SVGA)
Видеоинтерфейс	D-Sub
Максимальное разрешение	1920 x 1080 (Full HD)

Projector brightness	3600 ANSI lumens
Projection technology	DLP
Projector native resolution	XGA (1024x768)
Native aspect ratio	4:3
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	1.1 - 13 m
Contrast ratio (dynamic)	22000:1
Number of colours	1.073 billion colours
Horizontal scan range	15 - 102 kHz
Vertical scan range	23 - 120 Hz
Keystone correction, vertical	-40 - 40°
Matrix size	1.4 cm (0.55")
Matrix type	DMD
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	15000 h
Lamp power	190 W
Lamps quantity	1 lamp(s)
Focus	Manual
Zoom capability	Yes
Zoom type	Manual
Optical zoom	1.1x
Throw ratio	1.96 - 2.15:1
Analog signal format system	NTSC, PAL, PAL 60, SECAM
3D Ready	Yes
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 х 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VGA (D-Sub) ports quantity	3
HDMI ports quantity	1
Composite video in	1
DVI port	No
Serial interface type	RS-232
HDMI connector type	Full-size
HDMI version	1.4
PC Audio in	Yes
PC Audio out	Yes
AC (power) in	Yes
Ethernet LAN	No
Wi-Fi	No
Card reader integrated	No
Certification	FCC (ICES-003), cTUVus
Built-in speaker(s)	Yes
RMS rated power	2 W
Number of built-in speakers	1
Product type	Standard throw projector
Product colour	Grey, White
Placement	Desktop
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
Power consumption (typical)	260 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	0 - 1499 m
Weight	2.2 kg
Width	294 mm
Depth	218 mm
Height	110 mm
Package width	365 mm
Package depth	188 mm
Package height	300 mm
Package weight	6.24 kg
Remote control included	Yes
Cables included	AC, VGA
Quick start guide	Yes
Harmonized System (HS) code	85286200
RS-232 ports	1
Description
Description	Viewsonic PA503X. Projector brightness: 3600 ANSI lumens, Projection technology: DLP, Projector native resolution: XGA (1024x768). Light source type: Lamp, Service life of light source: 4500 h, Service life of light source (economic mode): 15000 h. Focus: Manual, Zoom type: Manual, Optical zoom: 1.1x. Analog signal format system: NTSC, PAL, PAL 60, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA),..., Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size

Description
	Light output 3800 Lumen \| Native resolution 1024x768 \| Contrast 22000:1 \| 3x15pin D-sub \| 1xHDMI \| 1xAudio-In \| 1xAudio-Out \| 1xRS232 \| 1xMini-USB \| 1xComposite video \| Speakers \| Lamp life 5000 hours \| Included Accessories Power Cord : 1,VGA Cable : 1,Remote Control : 1,Air Filter : RSPL \| Dimensions 294 x 218 x 110mm

ShortDesc	XGA(1024x768), 3600 lm, HDMI, 2x VGA, 5,000/15,000 LAMP hours, exclusive SuperColor technology
Display Type	DC3
Projector brightness	3600 lumens
Compressed Resolution	-
Native Resolution	1024 x 768
Contrast Ratio	22,000:1
Throw Distance Min.	1.19 m
Throw Distance Max.	13.11 m
Projection Size Min.	0.76 m
Projection Size Max.	7.62 m
Frequency Horizontal	15-102 kHz
Frequency Vertical	23-120 Hz
Aspect Ratio	4:3
Computer Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
Input / Output Connectors	3x D-sub Composite 2x 3.5 mm RS-232 USB mini B
Wireless	No
Wireless Interface	-
Lens / Optics	F=2.56-2.68, f=22-24.1 mm
Lamp Life	5,000 hours (normal) 15,000 hours (SuperEco)
Audio	Yes
Audio Features	2W
Mounting Capability	No
User Controls	-
Package Contents	Power Cord VGA Cable Remote Control (w/ laser pointer) QSG Air Filter: RSPL
Width	294 mm
Depth	218 mm
Height	110 mm
Net Weight	2.200 Kg
Gross Weight	6.950 kg
Lamp Warranty	-
Description
Description	03-07 (296)

Description

SPECIFICATION

Projection Offset: 120%+/-5%
Throw Ratio: 1.96~2.15
Image size: 30" - 300"
Throw Distance: 1.19m-13.11m(100" @3.98m)
Keystone: ±40° (Vertical)
Optical Zoom: 1.1x
Audible Noise (Eco): 27dB
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120Hz

INPUT

Computer in (D-SUB 15 pin): 2
Composite: 1
Audio-in (3.5mm): 1
HDMI: 1 (Back)

OUTPUT

Monitor out (D-SUB 15 pin): 1
Audio out (3.5mm): 1
Speaker: 2W
