    PrevZyxel GS1350-26HP 26Port i...
    NextZyxel GS1900-10HP Managed L...
    Производитель: ZYXEL

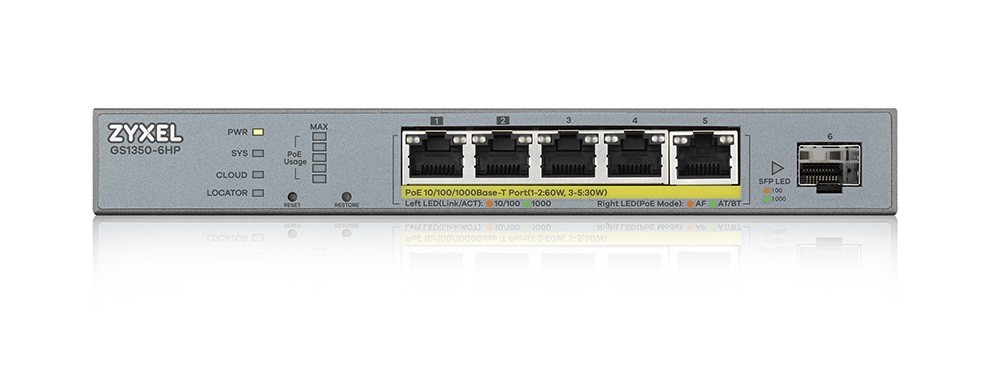

    Zyxel GS1350-6HP 6 Port incl. 1 Year Nebula Pro


    €161,22 с налогом

    Артикул: ST04129089
    Код производителя: GS1350-6HP-EU0101F
    Сайт производителя
    гарантия: 12 месяцы
    *
    Склад Доставка Наличие Цена
    PL
    EU
    PL
    DE
    LT
    LV

    Характеристики
    Количество портов RJ-45 5
    Свойства RJ-45
    WRL stadarti 802.11b
    Switch classManaged
    ApplicationHome and small office
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports5
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)5
    Number of COMBO portsNone
    Number of SFP ports1
    Number of SFP+ portsNone
    Number of QSFP+ portsNone
    Forwarding modeStore-and-forward
    Throughput12 (Gigabity na sek.)
    Forwarding rate8.9 (Mpps)
    Packet buffer525 (Kilobajt)
    MAC address table size8000
    Supported protocols and standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-Tx Ethernet
    • IEEE 802.3ab 1000Base-T Ethernet
    • IEEE 802.3z 1000Base-X
    • IEEE 802.3x flow control
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE plus
    • IEEE 802.3bt (GS1350-6HP)
    • IEEE 802.3az EEE support/Green Ethernet
    • IEEE 802.1p CoS support


    Mean time between failures (MTBF)2021885 (Hour)
    Power supply

    52 V - 57 V DC
    Dimensions

    193 x 84 x 26 mm
    Weight0.41 (kilogram)
    DesignationCE+WEEE
    Width240
    Height70
    Depth260
    Weight1161
    Description

    Przełącznik zarządzalny GS1350-6HP CCTV PoE LR 60W 802.3BT
    Switch typeManaged
    Switch layerL2
    Web-based managementY
    Configuring Location Settings (CLI)Y
    System event logY
    MIB supportRFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
    Basic switching RJ-45 Ethernet ports quantity5
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    SFP module slots quantity1
    Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportN
    Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroringY
    Flow control supportY
    Broadcast storm controlY
    Rate limitingY
    Spanning tree protocolY
    VLAN supportY
    Virtual LAN featuresMAC address-based VLAN, Port-based VLAN
    Number of VLANs256
    Fiber ethernet cabling technology1000BASE-X
    MAC address table8000 entries
    Switching capacity12 Gbit/s
    Forwarding rate8.9 Mpps
    Packet buffer memory0.525 MB
    DHCP featuresDHCP client, DHCP relay, DHCP snooping
    IGMP snoopingY
    IGMP proxyY
    Security algorithmsSNMP, SNMPv3, SSH, SSL/TLS
    MAC address filteringY
    Loop protectionY
    Queue scheduling algorithmsSPQ, WFQ, Weighted Round Robin (WRR)
    Multicast supportY
    Product colourGrey
    LED indicatorsY
    Wall mountableY
    Firmware upgradeableY
    Mean time between failures (MTBF)2021885.87 h
    Power supply includedY
    DC input voltage52 - 57 V
    Power consumption (max)72 W
    Power over Ethernet (PoE)Y
    Power over Ethernet (PoE) ports quantity5
    Total Power over Ethernet (PoE) budget60 W
    Operating temperature (T-T)-20 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)5 - 95%
    Storage relative humidity (H-H)5 - 95%
    Heat dissipation245.52 BTU/h
    Width193 mm
    Depth84 mm
    Height26 mm
    Weight410 g
    Harmonized System (HS) code85176990
    Description
    Zyxel GS1350-6HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... DC input voltage: 52 - 57 V. Power over Ethernet (PoE). Wall mountable
    Status7 dienas
    Description
    Just For Surveillance Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications New outlook Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch. Specialized PoE software features for surveillance Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios. Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time. Easy for long-distance deployment Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE. High power budget, intuitive front panel design The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations. Unique hardware, robust design Stabilized power Filters electrical noise and surge to ensure supplying stable power to PoE and the system. Selected power supply 2X Surge and ESD protection. Isolated Circuit Design Provides protection to isolate power surges from Ethernet and power supply. Intelligent System Monitor Keeps the system operational from anomalies. Patented Ethernet Protection - 4X Surge protection. - 2X ESD resistant.

    Switch type Managed
    Switch layer L2
    Web-based management Y
    Configuring Location Settings (CLI) Y
    System event log Y
    MIB support RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
    Basic switching RJ-45 Ethernet ports quantity 5
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 1
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroring Y
    Flow control support Y
    Broadcast storm control Y
    Rate limiting Y
    Spanning tree protocol Y
    VLAN support Y
    Virtual LAN features MAC address-based VLAN, Port-based VLAN
    Number of VLANs 256
    Fiber ethernet cabling technology 1000BASE-X
    MAC address table 8000 entries
    Switching capacity 12 Gbit/s
    Forwarding rate 8.9 Mpps
    Packet buffer memory 0.525 MB
    DHCP features DHCP client, DHCP relay, DHCP snooping
    IGMP snooping Y
    IGMP proxy Y
    Security algorithms SNMP, SNMPv3, SSH, SSL/TLS
    MAC address filtering Y
    Loop protection Y
    Queue scheduling algorithms SPQ, WFQ, Weighted Round Robin (WRR)
    Multicast support Y
    Product colour Grey
    LED indicators Y
    Wall mountable Y
    Firmware upgradeable Y
    Mean time between failures (MTBF) 2021885.87 h
    Power supply included Y
    DC input voltage 52 - 57 V
    Power consumption (max) 72 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 5
    Total Power over Ethernet (PoE) budget 60 W
    Operating temperature (T-T) -20 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Heat dissipation 245.52 BTU/h
    Width 193 mm
    Depth 84 mm
    Height 26 mm
    Weight 410 g
    Harmonized System (HS) code 85176990
    Description
    5+1P Zyxel GS1350-6HP POE M

    Характеристики
    Количество портов RJ-45 5
    Свойства RJ-45
    WRL stadarti 802.11b
    Switch classManaged
    ApplicationHome and small office
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports5
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)5
    Number of COMBO portsNone
    Number of SFP ports1
    Number of SFP+ portsNone
    Number of QSFP+ portsNone
    Forwarding modeStore-and-forward
    Throughput12 (Gigabity na sek.)
    Forwarding rate8.9 (Mpps)
    Packet buffer525 (Kilobajt)
    MAC address table size8000
    Supported protocols and standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-Tx Ethernet
    • IEEE 802.3ab 1000Base-T Ethernet
    • IEEE 802.3z 1000Base-X
    • IEEE 802.3x flow control
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE plus
    • IEEE 802.3bt (GS1350-6HP)
    • IEEE 802.3az EEE support/Green Ethernet
    • IEEE 802.1p CoS support


    Mean time between failures (MTBF)2021885 (Hour)
    Power supply

    52 V - 57 V DC
    Dimensions

    193 x 84 x 26 mm
    Weight0.41 (kilogram)
    DesignationCE+WEEE
    Width240
    Height70
    Depth260
    Weight1161
    Description

    Przełącznik zarządzalny GS1350-6HP CCTV PoE LR 60W 802.3BT
    Switch typeManaged
    Switch layerL2
    Web-based managementY
    Configuring Location Settings (CLI)Y
    System event logY
    MIB supportRFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
    Basic switching RJ-45 Ethernet ports quantity5
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    SFP module slots quantity1
    Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportN
    Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroringY
    Flow control supportY
    Broadcast storm controlY
    Rate limitingY
    Spanning tree protocolY
    VLAN supportY
    Virtual LAN featuresMAC address-based VLAN, Port-based VLAN
    Number of VLANs256
    Fiber ethernet cabling technology1000BASE-X
    MAC address table8000 entries
    Switching capacity12 Gbit/s
    Forwarding rate8.9 Mpps
    Packet buffer memory0.525 MB
    DHCP featuresDHCP client, DHCP relay, DHCP snooping
    IGMP snoopingY
    IGMP proxyY
    Security algorithmsSNMP, SNMPv3, SSH, SSL/TLS
    MAC address filteringY
    Loop protectionY
    Queue scheduling algorithmsSPQ, WFQ, Weighted Round Robin (WRR)
    Multicast supportY
    Product colourGrey
    LED indicatorsY
    Wall mountableY
    Firmware upgradeableY
    Mean time between failures (MTBF)2021885.87 h
    Power supply includedY
    DC input voltage52 - 57 V
    Power consumption (max)72 W
    Power over Ethernet (PoE)Y
    Power over Ethernet (PoE) ports quantity5
    Total Power over Ethernet (PoE) budget60 W
    Operating temperature (T-T)-20 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)5 - 95%
    Storage relative humidity (H-H)5 - 95%
    Heat dissipation245.52 BTU/h
    Width193 mm
    Depth84 mm
    Height26 mm
    Weight410 g
    Harmonized System (HS) code85176990
    Description
    Zyxel GS1350-6HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... DC input voltage: 52 - 57 V. Power over Ethernet (PoE). Wall mountable
    Status7 dienas
    Description
    Just For Surveillance Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications New outlook Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch. Specialized PoE software features for surveillance Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios. Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time. Easy for long-distance deployment Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE. High power budget, intuitive front panel design The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations. Unique hardware, robust design Stabilized power Filters electrical noise and surge to ensure supplying stable power to PoE and the system. Selected power supply 2X Surge and ESD protection. Isolated Circuit Design Provides protection to isolate power surges from Ethernet and power supply. Intelligent System Monitor Keeps the system operational from anomalies. Patented Ethernet Protection - 4X Surge protection. - 2X ESD resistant.

    Switch type Managed
    Switch layer L2
    Web-based management Y
    Configuring Location Settings (CLI) Y
    System event log Y
    MIB support RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
    Basic switching RJ-45 Ethernet ports quantity 5
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 1
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroring Y
    Flow control support Y
    Broadcast storm control Y
    Rate limiting Y
    Spanning tree protocol Y
    VLAN support Y
    Virtual LAN features MAC address-based VLAN, Port-based VLAN
    Number of VLANs 256
    Fiber ethernet cabling technology 1000BASE-X
    MAC address table 8000 entries
    Switching capacity 12 Gbit/s
    Forwarding rate 8.9 Mpps
    Packet buffer memory 0.525 MB
    DHCP features DHCP client, DHCP relay, DHCP snooping
    IGMP snooping Y
    IGMP proxy Y
    Security algorithms SNMP, SNMPv3, SSH, SSL/TLS
    MAC address filtering Y
    Loop protection Y
    Queue scheduling algorithms SPQ, WFQ, Weighted Round Robin (WRR)
    Multicast support Y
    Product colour Grey
    LED indicators Y
    Wall mountable Y
    Firmware upgradeable Y
    Mean time between failures (MTBF) 2021885.87 h
    Power supply included Y
    DC input voltage 52 - 57 V
    Power consumption (max) 72 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 5
    Total Power over Ethernet (PoE) budget 60 W
    Operating temperature (T-T) -20 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Heat dissipation 245.52 BTU/h
    Width 193 mm
    Depth 84 mm
    Height 26 mm
    Weight 410 g
    Harmonized System (HS) code 85176990
    Description
    5+1P Zyxel GS1350-6HP POE M
