| Storage drives installed | No |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Disk roaming | Yes |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor model | N5095 |
| Processor boost frequency | 2.9 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| CPU configuration (max) | 1 |
| On-board graphics card model | Intel® UHD Graphics |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Flash memory | 4000 MB |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Concurrent connections | 1500 |
| PCI Express x2 (Gen 3.x) slots | 1 |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
| LED indicators | HDD, LAN, Power, Status |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Snapshot | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| System log | Yes |
| Hot spare | Yes |
| Disk scan | Yes |
| S.M.A.R.T. support | Yes |
| Share folder | CIFS/SMB |
| Operating system installed | QNAP Turbo System |
| Operating system version | 5.0.1 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating systems supported | CentOS 7.0, Red Hat Enterprise Linux WS 7.0, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 36.81 W |
| Power consumption (sleep) | 22.285 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Fan voltage | 12 V |
| Width | 430 mm |
| Depth | 479 mm |
| Height | 43.3 mm |
| Weight | 6.6 kg |
| Package weight | 8.54 kg |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Quick start guide | Yes |
| Number of screws | 84 |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Harmonized System (HS) code | 84714100 |
| Description |

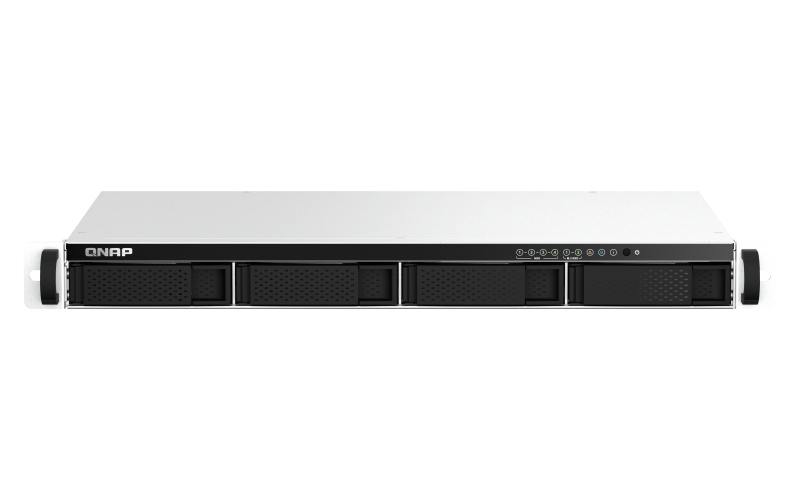

| QNAP TS-464U. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: Intel® Celeron®, Processor manufacturer: Intel, Processor model: N5095. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 16 GB. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. HDMI version: 1.4b |
