Производитель: LEVELONE

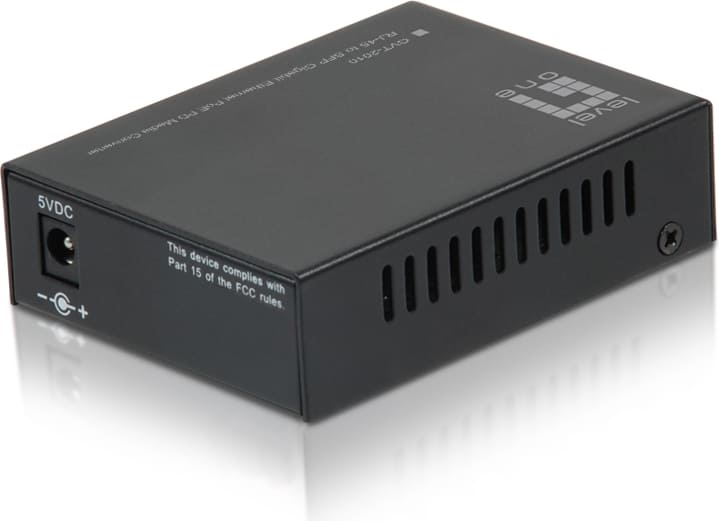

Level One LevelOne Konverter GVT-2010 10/100/1000T>1000SX

€147,16 с налогом

Артикул: ST03735788

Код производителя: GVT-2010

Сайт производителя

гарантия: 24 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LV	7 - 12 дня	31	€147,16 с налогом
PL	8 - 15 дня	31	€175,16 с налогом

Количество:

Specifications

Характеристики

Status

7 dienas

Description

GVT-2010 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 100 km via fiber optical cable. GVT-2010 supports 802.3at/af POE-PD function. It can draw the power via UTP cable connect to a POE-PSE switch or mid-span injector. This function makes the GVT-2010 ideal for remote areas of a network without power outlests Key Features - Transfers data from 10/100/1000Base-T copper to fiber interfaces - SFP slot supports pluggable Gigabit optic modules that enabling you to choose from a variety of transceiver - 9K jumbo frames to increase data transfer rates - Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Supports low-time lag transmission - Supports the transmission of extra-long packets up to 1.6KB - 10°C to 55°C operating temperature range - IEEE 802.3af/at PoE compliant to simplify deployment and installation

Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX
Jumbo frames support	Y
Jumbo frames	9000
Flow control support	Y
VLAN support	Y
Auto MDI/MDI-X	Y
Store-and-forward	Y
Duplex system	Full, Half
Fiber optic connector	SFP
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power over Ethernet plus (PoE+) ports quantity	1
Mean time between failures (MTBF)	30000 h
Internal	N
LED indicators	Activity, FDX, Link, Power
Product colour	Black
Certification	CE, FCC
Input voltage	90 - 264 V
Output voltage	5 V
Output current	2 A
Web-based management	Y
Width	94 mm
Depth	71 mm
Height	26 mm
Weight	220 g
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90%
Package width	120 mm
Package depth	55 mm
Package height	235 mm
Package weight	430 g
Manual	Y
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
