| Ethernet WAN | No |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 224 Mbit/s |
| Ethernet LAN | No |
| Ethernet LAN interface type | Not available |
| Dynamic DNS (DDNS) | Yes |
| SSID-based VLAN assignment | Yes |
| VPN Passthrough | Yes |
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 4G standard | LTE-TDD & LTE-FDD |
| UMTS bands supported | 900,2100 MHz |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Memory card slot(s) | No |
| Web-based management | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| Network address translation (NAT) | Yes |
| DHCP server | Yes |
| Product type | Portable router |
| Product colour | Black |
| Indication light | Yes |
| Certification | UN38.3, CE, WEEE, RoHS, HSF, |
| Power source type | Battery, DC |
| Output voltage | 5 V |
| Output current | 1.5 A |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3000 mAh |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Browser supported | Internet Explorer, Edge, Firefox, Chrome, Safari |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Linux operating systems supported | Ubuntu 12.04, Ubuntu 14.04 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Width | 118.2 mm |
| Depth | 65 mm |
| Height | 15.7 mm |
| Weight | 130 g |
| Package width | 150 mm |
| Package depth | 80 mm |
| Package height | 50 mm |
| Package weight | 270 g |
| Harmonized System (HS) code | 85176990 |
| Description |

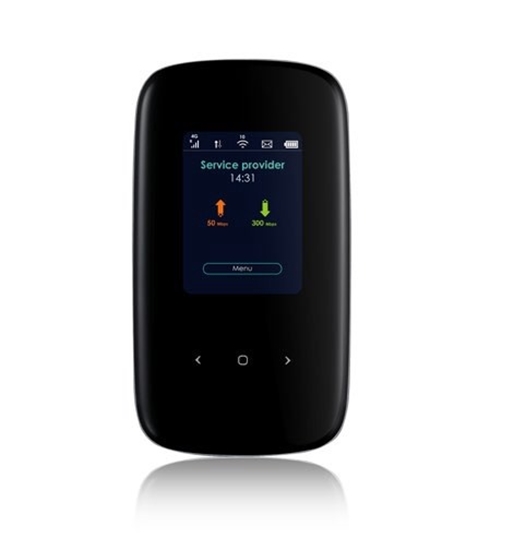

| Zyxel LTE2566-M634. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 300 Mbit/s. Mobile network generation: 4G, 4G standard: LTE-TDD & LTE-FDD, UMTS bands supported: 900,2100 MHz. Security algorithms: WPA-PSK, WPA2-PSK. Product type: Portable router, Product colour: Black. Certification: UN38.3, CE, WEEE, RoHS, HSF, |
