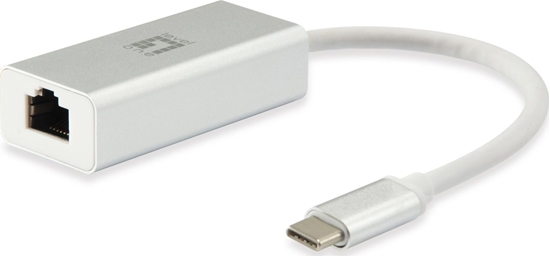

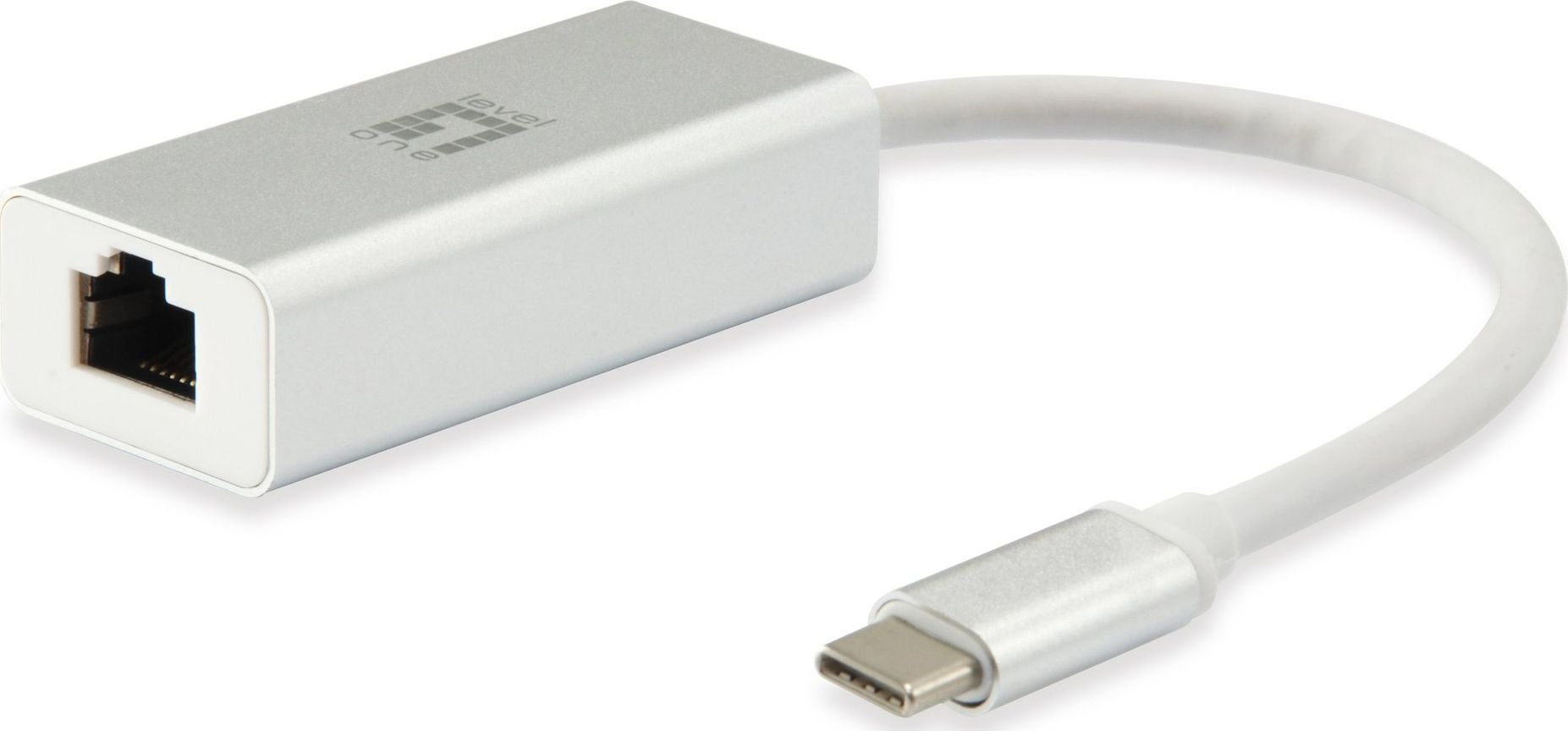

The LevelOne USB-0402 is a Gigabit USB type C Network Adapter that enables desktop and notebook computers with high-speed Gigabit network connectivity via the USB port. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port when physical connection to a network is needed.
The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
| | Connectivity technology | Wired | | Host interface | USB Type-C | | Interface | Ethernet | | Ethernet LAN (RJ-45) ports | 1 | | USB version | 3.2 Gen 2 (3.1 Gen 2) | | Maximum data transfer rate | 1000 Mbit/s | | Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x | | Ethernet LAN | Jā | | Ethernet interface type | Gigabit Ethernet | | Ethernet LAN data rates | 10,100,1000 Mbit/s | | Cabling technology | 10/100/1000BaseT(X) | | Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T | | Wake-on-LAN ready | Jā | | Auto MDIX IEEE | Jā | | Full duplex | Jā | | Jumbo frames support | Jā | | Jumbo frames | 9000 | | Supported network protocols | IPv4/IPv6 | | Internal | Nē | | Product colour | Silver, White | | Country of origin | China | | Certification | CE | | Input current | 3 A | | Output voltage | 5 V | | Power consumption (typical) | 2 W | | USB powered | Jā | | Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 | | Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks | | Operating temperature (T-T) | 10 - 40 °C | | Storage temperature (T-T) | 10 - 70 °C | | Operating relative humidity (H-H) | 0 - 85% | | Storage relative humidity (H-H) | 0 - 85% | | Sustainability certificates | RoHS | | Width | 28.5 mm | | Depth | 17.5 mm | | Height | 217 mm | | Weight | 26 g | | Package type | Box | | Package width | 90 mm | | Package depth | 26 mm | | Package height | 212 mm | | Package weight | 33 g | | Quick installation guide | Jā | | Master (outer) case width | 390 mm | | Master (outer) case length | 280 mm | | Master (outer) case height | 540 mm | | Master (outer) case gross weight | 7.7 kg | | Products per master (outer) case | 120 pc(s) | | Flow control support | Jā |
|
|
