    PrevZyXEL GS-108BV3-EU0101F swi...
    NextZyxel GS1100-16 V3 16 Port ...
    Производитель: ZYXEL

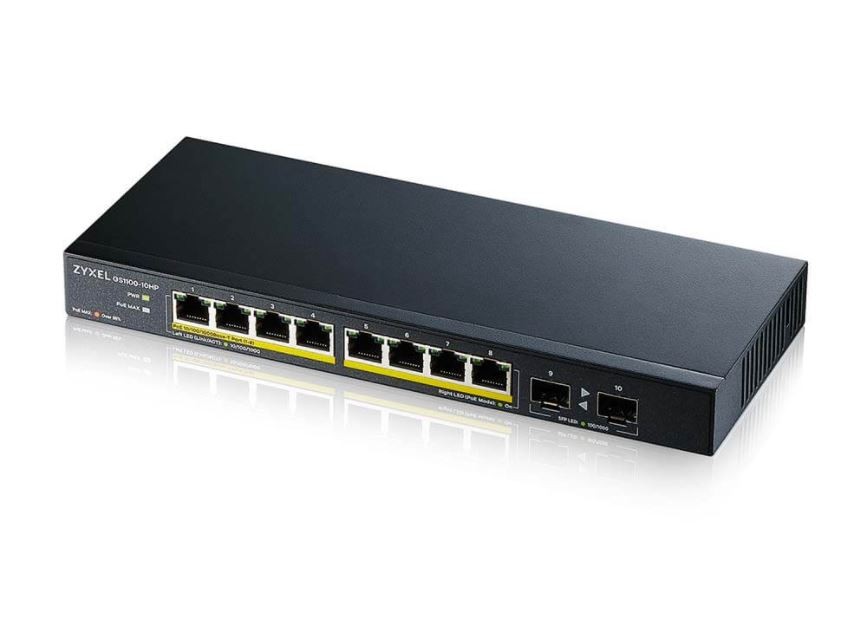

    Zyxel GS1100-10HP v2 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black


    €164,28 с налогом

    Артикул: ST05355635
    Код производителя: GS1100-10HP-EU0102F
    Сайт производителя
    гарантия: 12 месяцы
    *
    Склад Доставка Наличие Цена
    DE
    LT
    LV

    Характеристики
    Свойства RJ-45
    WRL stadarti 802.11b
    Количество портов RJ-45 8
    Switch classUnmanaged
    ApplicationHome and small office
    Network architectureGigabitEthernet
    Number of 10/100/1000 Mbps ports8
    Number of PoE ports (PoE & PoE+)8
    Number of SFP ports2
    Console portNo
    Forwarding modeStore-and-forward
    Throughput20 (Gigabity na sek.)
    Forwarding rate14.88 (Mpps)
    Packet buffer256 (Kilobajt)
    MAC address table size8000
    Support for Jumbo framesYes
    Jumbo frame size9000 (Kilobajt)
    Supported protocols and standards
    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Ethernet
    • IEEE 802.3ab 1000BASE-T Ethernet
    • IEEE 802.3az EEE support
    • IEEE 802.3x flow control
    • IEEE 802.3z 1000BASE-X
    • IEEE 802.1p CoS
    • IEEE 802.3af PoE (GS1100-10HP)
    • IEEE 802.3at PoE+ (GS1100-10HP)
    Chassis typeDesktop
    Fan No
    Power supply External
    Power consumption156.1 (Watt)
    Mean time between failures (MTBF)1000070 (Hour)
    Accessories included
    • Zasilacz
    • Kabel zasilający
    • Zestaw do montażu na ścianie
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    250 x 104 x 27 mm
    Weight0.73 (kilogram)
    DesignationCE+WEEE
    Width300
    Height65
    Depth250
    Weight1800
    Description

    Szept cichej pracy
    Bezwentylatorowa konstrukcja GS1100 zapewnia cichą pracę w małych i cichych pomieszczeniach biurowych. Model PoE GS1100-10HP jest wyposażony w zewnętrzny zasilacz, który eliminuje potrzebę dodatkowego wentylatora chłodzącego urządzenie, dzięki czemu idealnie nadaje się do cichych zastosowań PoE.

    Oszczędność energii
    GS1100 jest wyposażony w energooszczędny Ethernet (IEEE 802. 3az), który automatycznie wykrywa ruch sieciowy i dynamicznie dostosowuje zużycie energii. Zielone funkcje Zyxel dostosowują również zużycie energii, wykrywając stan łącza i długość kabla oraz zmniejszając koszty eksploatacji.

    Obsługa PoE+
    Model GS1100-10HP obsługuje technologię PoE+ (IEEE 802. 3at), która zapewnia maksymalnie 30 W na port i zapewnia w pełni automatyczne wsparcie dla kompatybilnych telefonów IP, kamer nadzoru wideo lub bezprzewodowych punktów dostępowych.
    Switch typeUnmanaged
    Basic switching RJ-45 Ethernet ports quantity8
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    SFP module slots quantity2
    Power connectorDC-in jack
    Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportNo
    Auto MDI/MDI-XYes
    Ethernet LAN data rates100,1000 Mbit/s
    MAC address table8000 entries
    Switching capacity20 Gbit/s
    Forwarding rate14.88 Mpps
    Jumbo frames supportYes
    Jumbo frames9000
    Packet buffer memory0.256 MB
    Product colourBlack
    LED indicatorsYes
    Wall mountableYes
    Country of originChina
    Mean time between failures (MTBF)1000070 h
    Power sourceAC/DC
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    DC input voltage54 V
    Power consumption (max)156.1 W
    Power over Ethernet (PoE)Yes
    Power over Ethernet (PoE) ports quantity8
    Total Power over Ethernet (PoE) budget130 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 90%
    Storage relative humidity (H-H)10 - 95%
    Heat dissipation89 BTU/h
    Width250 mm
    Depth104 mm
    Height27 mm
    Weight730 g
    Package width228 mm
    Package depth304 mm
    Package height67 mm
    Package weight1.97 kg
    Sustainability complianceYes
    Sustainability certificatesRoHS
    Master (outer) case width323 mm
    Master (outer) case length558 mm
    Master (outer) case height275 mm
    Harmonized System (HS) code85176990
    Master (outer) case gross weight13.7 kg
    Products per master (outer) case8 pc(s)
    Description
    Zyxel GS1100-10HP v2. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
    Status7 dienas
    Description
    Affordable Solution for Gigabit Connections to the Desktop The ZyXEL GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-and-play simplicity for high-bandwidth network applications. Green networking The GS1100 Series not only offers Gigabit Ethernet connectivity for next-generation network applications, but also power-saving functions for better energy efficiency. Capable of dynamically adjusting power output according to traffic, active links and cable length, the GS1100 Series can reduce energy consumption for lowered operating costs. Traffic detection — Energy Efficient Ethernet (EEE) compliance The IEEE 802.3az Energy Efficient Ethernet (EEE) feature automatically detects network traffic and adjusts power consumption dynamically, enabling the switch to reduce power consumption during low link utilization periods. The GS1100 Series comes with IEEE 802.3az on/off button to help reduce power consumption. This button allows users to keep the best performance without transmit impacted or to have green support of Energy Efficient Ethernet mode with a simple push of a button. Inactive link detection The inactive link detection function automatically reduces power usage when inactive links or devices are detected. The ZyXEL GS1100 Series can adjust power consumption according to link status and the number of active network devices. Cable length detection This green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes. Fanless design The complete GS1100 Series comes in a fanless design that ensures silent operation in small or quiet office environments. The GS1100-8HP and GS1100-10HP PoE models are specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments. Gigabit to the desktop The ZyXEL GS1100 Series offers small offices 8/10/16/24-port Gigabit connectivity at the most competitive price. Additionally, the GS1100-24 and GS1100-10HP models are equipped with 2 extra SFP slots, supported dual rate (100 M and GbE speed) that enable fiber optic connections for long-distance deployments. With Gigabit network performance and high cost-effectiveness, the GS1100 Series is the ideal solution for bandwidth-intensive applications such as high-resolution photo transmission, video/ audio streaming and server farm connections. Freedom of installation via PoE (GS1100-8HP/10HP) The GS1100-8HP/10HP supports the IEEE 802.3at PoE Plus standard to ease the installation of network devices in challenging spaces such as ceilings or walls. The power supply of up to 30 watts per port allows the GS1100-8HP/10HP to power PoE-enabled WLAN APs, VoIP phones and IP surveillance cameras through CAT-5 cables without extra power adapters. This feature helps enterprises reduce installation time and cost when there are many such devices on the network. The GS1100-10HP has been designed with eight full PoE Plus ports with total PoE power budget of up to 130 Watts, which makes it an ideal connectivity solution for high-density powered device deployments. In addition, the extra two SFP links on GS1100-10HP also easily extend networks to remote locations such as branch offices and warehouses for small- and medium-size businesses.

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 2
    Power connector DC-in jack
    Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Auto MDI/MDI-X Y
    Ethernet LAN data rates 100,1000 Mbit/s
    MAC address table 8000 entries
    Switching capacity 20 Gbit/s
    Forwarding rate 14.88 Mpps
    Jumbo frames support Y
    Jumbo frames 9000
    Packet buffer memory 0.256 MB
    Product colour Black
    LED indicators Y
    Wall mountable Y
    Country of origin China
    Mean time between failures (MTBF) 1000070 h
    Power source AC/DC
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    DC input voltage 54 V
    Power consumption (max) 156.1 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 8
    Total Power over Ethernet (PoE) budget 130 W
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 95%
    Heat dissipation 89 BTU/h
    Width 250 mm
    Depth 104 mm
    Height 27 mm
    Weight 730 g
    Package width 228 mm
    Package depth 304 mm
    Package height 67 mm
    Package weight 1.97 kg
    Sustainability compliance Y
    Sustainability certificates RoHS
    Master (outer) case width 323 mm
    Master (outer) case length 558 mm
    Master (outer) case height 275 mm
    Harmonized System (HS) code 85176990
    Master (outer) case gross weight 13.7 kg
    Products per master (outer) case 8 pc(s)
    Description
    8+2P Zyxel GS1100-10HPV2

    Характеристики
    Свойства RJ-45
    WRL stadarti 802.11b
    Количество портов RJ-45 8
    Switch classUnmanaged
    ApplicationHome and small office
    Network architectureGigabitEthernet
    Number of 10/100/1000 Mbps ports8
    Number of PoE ports (PoE & PoE+)8
    Number of SFP ports2
    Console portNo
    Forwarding modeStore-and-forward
    Throughput20 (Gigabity na sek.)
    Forwarding rate14.88 (Mpps)
    Packet buffer256 (Kilobajt)
    MAC address table size8000
    Support for Jumbo framesYes
    Jumbo frame size9000 (Kilobajt)
    Supported protocols and standards
    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Ethernet
    • IEEE 802.3ab 1000BASE-T Ethernet
    • IEEE 802.3az EEE support
    • IEEE 802.3x flow control
    • IEEE 802.3z 1000BASE-X
    • IEEE 802.1p CoS
    • IEEE 802.3af PoE (GS1100-10HP)
    • IEEE 802.3at PoE+ (GS1100-10HP)
    Chassis typeDesktop
    Fan No
    Power supply External
    Power consumption156.1 (Watt)
    Mean time between failures (MTBF)1000070 (Hour)
    Accessories included
    • Zasilacz
    • Kabel zasilający
    • Zestaw do montażu na ścianie
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    250 x 104 x 27 mm
    Weight0.73 (kilogram)
    DesignationCE+WEEE
    Width300
    Height65
    Depth250
    Weight1800
    Description

    Szept cichej pracy
    Bezwentylatorowa konstrukcja GS1100 zapewnia cichą pracę w małych i cichych pomieszczeniach biurowych. Model PoE GS1100-10HP jest wyposażony w zewnętrzny zasilacz, który eliminuje potrzebę dodatkowego wentylatora chłodzącego urządzenie, dzięki czemu idealnie nadaje się do cichych zastosowań PoE.

    Oszczędność energii
    GS1100 jest wyposażony w energooszczędny Ethernet (IEEE 802. 3az), który automatycznie wykrywa ruch sieciowy i dynamicznie dostosowuje zużycie energii. Zielone funkcje Zyxel dostosowują również zużycie energii, wykrywając stan łącza i długość kabla oraz zmniejszając koszty eksploatacji.

    Obsługa PoE+
    Model GS1100-10HP obsługuje technologię PoE+ (IEEE 802. 3at), która zapewnia maksymalnie 30 W na port i zapewnia w pełni automatyczne wsparcie dla kompatybilnych telefonów IP, kamer nadzoru wideo lub bezprzewodowych punktów dostępowych.
    Switch typeUnmanaged
    Basic switching RJ-45 Ethernet ports quantity8
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    SFP module slots quantity2
    Power connectorDC-in jack
    Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportNo
    Auto MDI/MDI-XYes
    Ethernet LAN data rates100,1000 Mbit/s
    MAC address table8000 entries
    Switching capacity20 Gbit/s
    Forwarding rate14.88 Mpps
    Jumbo frames supportYes
    Jumbo frames9000
    Packet buffer memory0.256 MB
    Product colourBlack
    LED indicatorsYes
    Wall mountableYes
    Country of originChina
    Mean time between failures (MTBF)1000070 h
    Power sourceAC/DC
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    DC input voltage54 V
    Power consumption (max)156.1 W
    Power over Ethernet (PoE)Yes
    Power over Ethernet (PoE) ports quantity8
    Total Power over Ethernet (PoE) budget130 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 90%
    Storage relative humidity (H-H)10 - 95%
    Heat dissipation89 BTU/h
    Width250 mm
    Depth104 mm
    Height27 mm
    Weight730 g
    Package width228 mm
    Package depth304 mm
    Package height67 mm
    Package weight1.97 kg
    Sustainability complianceYes
    Sustainability certificatesRoHS
    Master (outer) case width323 mm
    Master (outer) case length558 mm
    Master (outer) case height275 mm
    Harmonized System (HS) code85176990
    Master (outer) case gross weight13.7 kg
    Products per master (outer) case8 pc(s)
    Description
    Zyxel GS1100-10HP v2. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
    Status7 dienas
    Description
    Affordable Solution for Gigabit Connections to the Desktop The ZyXEL GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-and-play simplicity for high-bandwidth network applications. Green networking The GS1100 Series not only offers Gigabit Ethernet connectivity for next-generation network applications, but also power-saving functions for better energy efficiency. Capable of dynamically adjusting power output according to traffic, active links and cable length, the GS1100 Series can reduce energy consumption for lowered operating costs. Traffic detection — Energy Efficient Ethernet (EEE) compliance The IEEE 802.3az Energy Efficient Ethernet (EEE) feature automatically detects network traffic and adjusts power consumption dynamically, enabling the switch to reduce power consumption during low link utilization periods. The GS1100 Series comes with IEEE 802.3az on/off button to help reduce power consumption. This button allows users to keep the best performance without transmit impacted or to have green support of Energy Efficient Ethernet mode with a simple push of a button. Inactive link detection The inactive link detection function automatically reduces power usage when inactive links or devices are detected. The ZyXEL GS1100 Series can adjust power consumption according to link status and the number of active network devices. Cable length detection This green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes. Fanless design The complete GS1100 Series comes in a fanless design that ensures silent operation in small or quiet office environments. The GS1100-8HP and GS1100-10HP PoE models are specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments. Gigabit to the desktop The ZyXEL GS1100 Series offers small offices 8/10/16/24-port Gigabit connectivity at the most competitive price. Additionally, the GS1100-24 and GS1100-10HP models are equipped with 2 extra SFP slots, supported dual rate (100 M and GbE speed) that enable fiber optic connections for long-distance deployments. With Gigabit network performance and high cost-effectiveness, the GS1100 Series is the ideal solution for bandwidth-intensive applications such as high-resolution photo transmission, video/ audio streaming and server farm connections. Freedom of installation via PoE (GS1100-8HP/10HP) The GS1100-8HP/10HP supports the IEEE 802.3at PoE Plus standard to ease the installation of network devices in challenging spaces such as ceilings or walls. The power supply of up to 30 watts per port allows the GS1100-8HP/10HP to power PoE-enabled WLAN APs, VoIP phones and IP surveillance cameras through CAT-5 cables without extra power adapters. This feature helps enterprises reduce installation time and cost when there are many such devices on the network. The GS1100-10HP has been designed with eight full PoE Plus ports with total PoE power budget of up to 130 Watts, which makes it an ideal connectivity solution for high-density powered device deployments. In addition, the extra two SFP links on GS1100-10HP also easily extend networks to remote locations such as branch offices and warehouses for small- and medium-size businesses.

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 2
    Power connector DC-in jack
    Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Auto MDI/MDI-X Y
    Ethernet LAN data rates 100,1000 Mbit/s
    MAC address table 8000 entries
    Switching capacity 20 Gbit/s
    Forwarding rate 14.88 Mpps
    Jumbo frames support Y
    Jumbo frames 9000
    Packet buffer memory 0.256 MB
    Product colour Black
    LED indicators Y
    Wall mountable Y
    Country of origin China
    Mean time between failures (MTBF) 1000070 h
    Power source AC/DC
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    DC input voltage 54 V
    Power consumption (max) 156.1 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 8
    Total Power over Ethernet (PoE) budget 130 W
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 95%
    Heat dissipation 89 BTU/h
    Width 250 mm
    Depth 104 mm
    Height 27 mm
    Weight 730 g
    Package width 228 mm
    Package depth 304 mm
    Package height 67 mm
    Package weight 1.97 kg
    Sustainability compliance Y
    Sustainability certificates RoHS
    Master (outer) case width 323 mm
    Master (outer) case length 558 mm
    Master (outer) case height 275 mm
    Harmonized System (HS) code 85176990
    Master (outer) case gross weight 13.7 kg
    Products per master (outer) case 8 pc(s)
    Description
    8+2P Zyxel GS1100-10HPV2
