Manufacturer: LEVELONE

LevelOne FEP-1601W150 16-Port-Fast Ethernet-PoE-Switch

€328.89 incl tax

SKU: ST03737341

Manufacturer part number: FEP-1601W150

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	6	€328.89 incl tax
PL	8 - 15 days	6	€458.58 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Properties	RJ-45
RJ-45 port	16

Status

7 dienas

Description

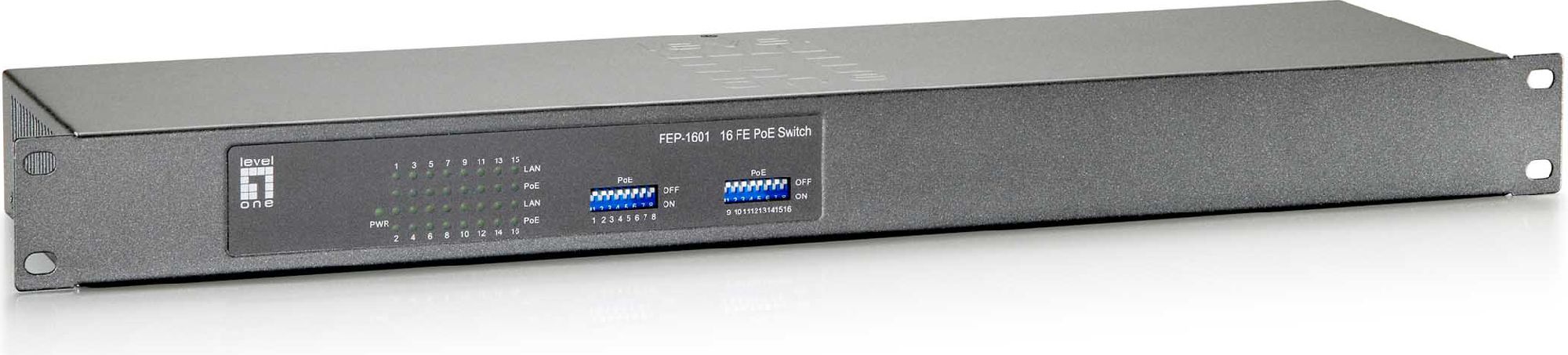

FEP-1601 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports Key Features - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX - PoE on/off control per port by dip switches - 19-inch metal housing

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	4000 entries
Switching capacity	3.2 Gbit/s
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Product colour	Grey
LED indicators	Activity, PoE, Power
On/off switch	Y
Country of origin	Taiwan
Certification	FCC, CE, RoHS
Buffer size	160 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	5 A
Power consumption (typical)	150 W
Power protection features	Over current
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	142 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	480 mm
Depth	118 mm
Height	44 mm
Weight	2.2 kg
Cables included	AC
Manual	Y
Package type	Box
Package width	222 mm
Package depth	146 mm
Package height	78 mm
Package weight	2.6 kg
Master (outer) case width	420 mm
Master (outer) case length	310 mm
Master (outer) case height	260 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	17 kg
Products per master (outer) case	10 pc(s)

Products specifications

1
Details 2

Properties	RJ-45
RJ-45 port	16

Status

7 dienas

Description

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	4000 entries
Switching capacity	3.2 Gbit/s
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Product colour	Grey
LED indicators	Activity, PoE, Power
On/off switch	Y
Country of origin	Taiwan
Certification	FCC, CE, RoHS
Buffer size	160 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	5 A
Power consumption (typical)	150 W
Power protection features	Over current
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	142 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	480 mm
Depth	118 mm
Height	44 mm
Weight	2.2 kg
Cables included	AC
Manual	Y
Package type	Box
Package width	222 mm
Package depth	146 mm
Package height	78 mm
Package weight	2.6 kg
Master (outer) case width	420 mm
Master (outer) case length	310 mm
Master (outer) case height	260 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	17 kg
Products per master (outer) case	10 pc(s)
