    Manufacturer: LEVELONE

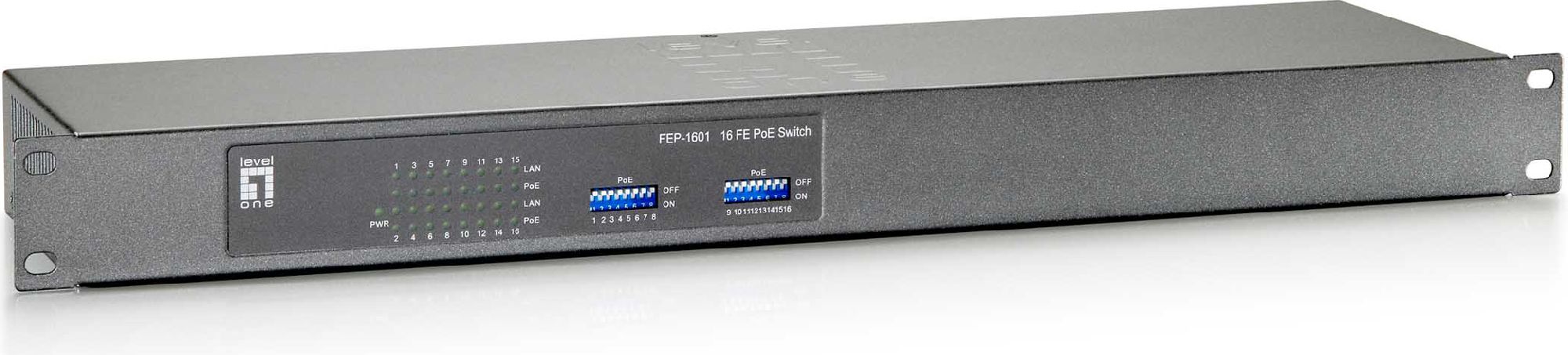

    LevelOne FEP-1601W120 16-Port-Fast Ethernet-PoE-Switch


    €298.66 incl tax

    SKU: ST07376705
    Manufacturer part number: FEP-1601W120
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    RJ-45 port 16
    Status7 dienas
    Description
    FEP-1601 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports Key Features - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX - PoE on/off control per port by dip switches - 19-inch metal housing

    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 4000 entries
    Switching capacity 3.2 Gbit/s
    Store-and-forward Y
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Rack mounting Y
    Product colour Grey
    LED indicators Activity, PoE, Power
    On/off switch Y
    Country of origin Taiwan
    Certification FCC, CE, RoHS
    Buffer size 160 KB
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Input current 5 A
    Power consumption (typical) 120 W
    Power protection features Over current
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 16
    Power over Ethernet (PoE) power per port 30 W
    Total Power over Ethernet (PoE) budget 112 W
    Operating temperature (T-T) 0 - 45 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 480 mm
    Depth 118 mm
    Height 44 mm
    Weight 2.2 kg
    Cables included AC
    Manual Y
    Package type Box
    Package width 222 mm
    Package depth 146 mm
    Package height 78 mm
    Package weight 400 g
    Master (outer) case width 420 mm
    Master (outer) case length 310 mm
    Master (outer) case height 260 mm
    Harmonized System (HS) code 85176990
    Master (outer) case gross weight 17 kg
    Products per master (outer) case 10 pc(s)
