    Manufacturer: D-LINK

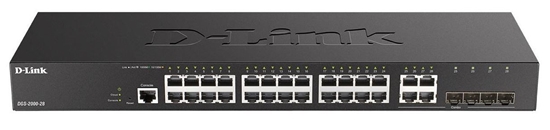

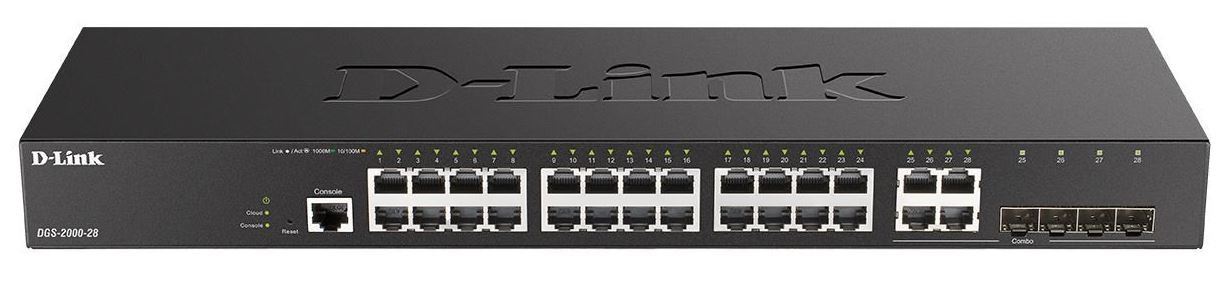

    D-Link DGS-2000-28 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black


    €342.94 incl tax

    SKU: ST04696288
    Manufacturer part number: DGS-2000-28
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    Properties RJ-45
    RJ-45 port 24
    WRL stadarti 802.11b
    Switch classManaged
    ApplicationMedium and large companies
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100/1000 Mbps ports24
    Number of SFP ports4
    Console portYes
    Forwarding modeStore-and-forward
    Throughput56 (Gigabajty na sek.)
    Forwarding rate41.7 (Megabajty na sek.)
    Packet buffer4.1 (MegaBajt)
    MAC address table size8000
    StackabilityYes
    Supported protocols and standards
    • IEEE 802.3 for Ethernet
    • IEEE 802.3u 100BASE-TX Fast Ethernet
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    • Auto-negotiation
    • IEEE 802.3x Flow Control
    • IEEE 802.3z 1000BASE-X Gigabit Fiber
    Security
    • Access Control Lists (ACLs)
    • Smart IP-MAC-Port Binding (Smart IMPB)
    • D-Link Safeguard Engine helps the CPU resist
    • broadcast/multicast/unicast flooding
    • Port Security
    Management, monitoring, configuration
    • D-Link Network Assistant (DNA) utility or Web UI
    • Command Line Interface (CLI) through Telnet or
    • SSH
    • RJ-45 Console Port
    L2 features
    • 8K or 16K MAC address table
    • IEEE 802.1D STP, 802.1w RSTP, and 802.1s MSTP
    • Loopback detection
    • Supports IEEE 802.3ad Link
    Chassis typeRack
    Fan Yes
    Power supply Internal
    Power consumption17.32 (Watt)
    Mean time between failures (MTBF)992.594 (Hour)
    Dimensions

    440 x 140 x 44 mm

    Weight2.15 (kilogram)
    DesignationCE+WEEE
    Width490
    Height70
    Depth246
    Weight3080
    Description

    Zarządzane gigabitowe przełączniki dostępowe

    Seria DGS-2000 zapewnia zróżnicowany zakres gęstości portów Gigabit, aby zaspokoić różne potrzeby w zakresie łączności w warstwie dostępu korporacyjnego. Dzięki takim opcjom, jak PoE dla wygodnych urządzeń Power Edge, porty SFP rozszerzające łączność sieciową, zaawansowane funkcje warstwy 2 i możliwości zarządzania w warstwie 3 Lite, seria DGS-2000 jest idealnym wyborem dla każdego wdrożenia warstwy dostępu w przedsiębiorstwie.

    Switch typeManaged
    Switch layerL2/L3
    Quality of Service (QoS) supportYes
    Web-based managementYes
    MIB supportY
    Basic switching RJ-45 Ethernet ports quantity24
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Combo SFP ports quantity4
    Console portRJ-45
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Full duplexYes
    Half duplexYes
    Auto MDI/MDI-XYes
    Ethernet LAN data rates10,100,1000 Mbit/s
    VLAN supportYes
    Virtual LAN featuresTagged VLAN
    MAC address table8000 entries
    Switching capacity56 Gbit/s
    Forwarding rate41.7 Mpps
    Store-and-forwardYes
    Packet buffer memory4.1 MB
    DHCP featuresDHCP relay, DHCP snooping
    Access Control List (ACL)Yes
    IGMP snoopingYes
    Static port securityYes
    SSH/SSL supportYes
    IP-MAC-Port bindingYes
    Multicast supportYes
    Multicast Listener Discovery (MLD) snoopingY
    Rack mountingYes
    Form factor1U
    Product colourBlack
    LED indicatorsActivity, Link, Power, Speed
    Memory typeDDR3-SDRAM
    Internal memory256 MB
    Flash memory32 MB
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power over Ethernet (PoE)No
    Operating temperature (T-T)-5 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 90%
    Storage relative humidity (H-H)5 - 90%
    Width440 mm
    Depth250 mm
    Height44 mm
    Weight2.15 kg
    Harmonized System (HS) code85176990
    Description
    D-Link DGS-2000-28. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U
